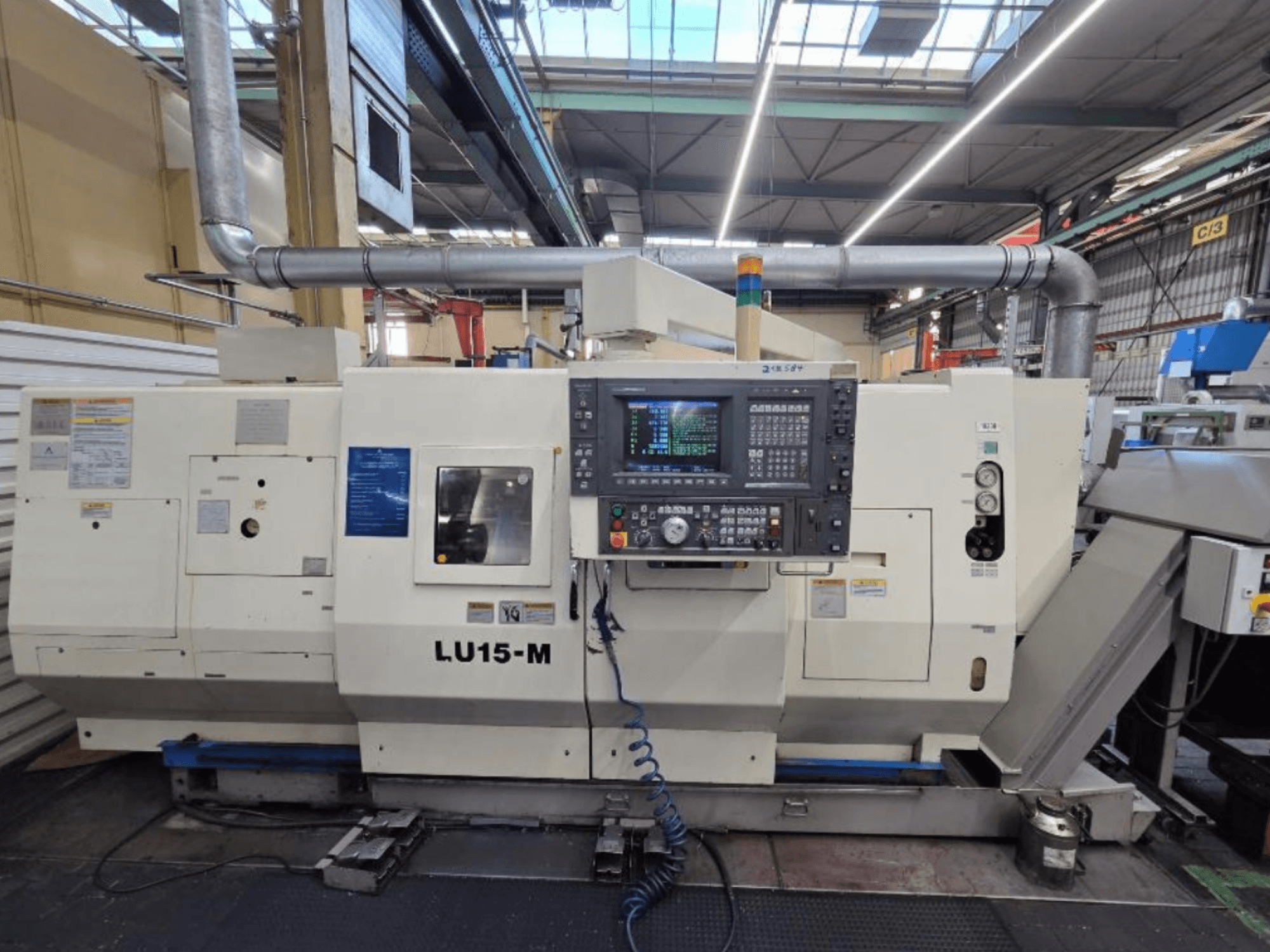

Okuma - LU15 M-2SC 1000DE-TUR-OKU-1998-00005

• Longitudinal Travel (X): 1020 / 995 mm

• Cross Travel (Z): 260 / 140 mm

• Turning Range: 340 mm

• Swing Diameter over Bed Cover: 530 mm

• Swing Diameter over Cross Slide: 380 mm

• Spindle Nose: ASA-A2 / DIN 55026 Gr. 6

• Spindle Bore: 62 mm

• Spindle Diameter in Front Bearing: 100 mm

• Chuck Diameter: 200 mm

• Main Drive: Motor spindle (hollow shaft motor) frequency-regulated 60% ED

• Power (Main Drive): 22 kW

• Max Torque: 412 Nm

• Speed Range: 45 - 4,500 rpm

• Speed Levels (Electrical): 2

• Feed Drive: AC servo motors, digitally regulated

• Feed Range X/Z: 0 - 1,000 mm/U

• Rapid Traverse X/Z: 15 / 20 m/min

• Power X, Z: 2.4/1.5 kW and 4/4 kW

• Feed Force X, Z: 11/3.7 kN and 7/6.7 kN

• Turrets: 2 tool turrets

• Live tooling: Yes (C-axis and driven units)

• Tapping: Synchronous tapping

• Spindle interpolation: Automatic main spindle interpolation

• Tool monitoring: Wear and breakage monitoring

• Tool measurement: Integrated tool setter / measuring device

• Tailstock: Programmable, towable with bed slide, automatic clamping

• Tailstock quill: Controllable via M-command

• Draw tube bore: 55 mm (partial hollow clamping cylinder)

• Interface: DNC Interface RS-232C

• Cooling system: Reinforced pump (8 bar at 30 l/min)

• Programming: ONE TOUCH Dialog-NC (automatic work plan generation)

Additional equipment

• Chip conveyor (1,200 mm discharge height)
