➤ Used Okuma LU 300 MY For Sale | gindumac.com

Show in original language

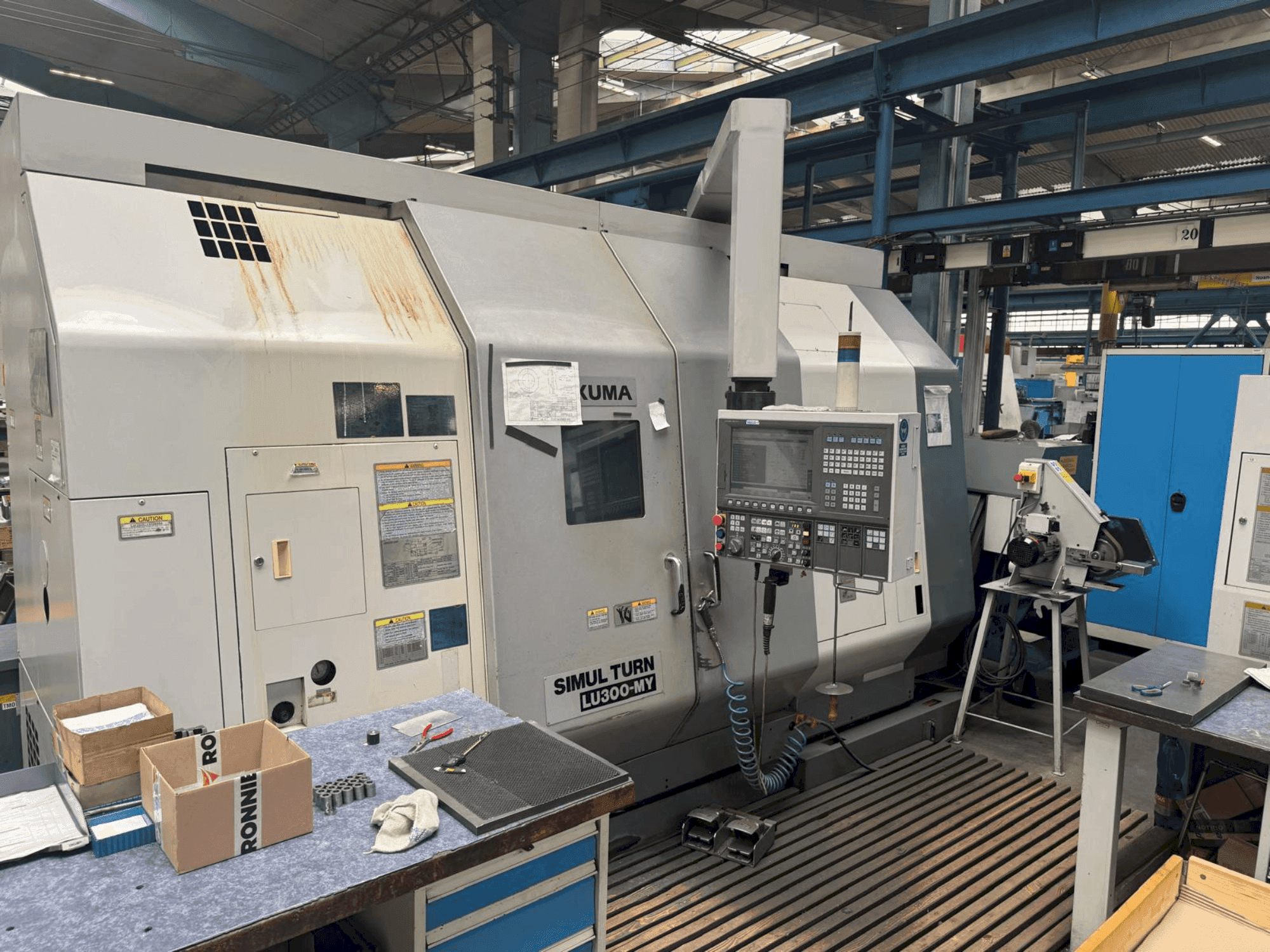

This 3-axis Okuma LU 300 MY was manufactured in 2006. It features a robust 22 kW spindle motor, dual turrets with live tooling, and a bar capacity of 75 mm. The machine offers a maximum turning diameter of 380 mm and a length of 1050 mm. It includes a programmable hydraulic tailstock, C-axis, Y-axis, and an OSP P200-L control for enhanced precision. If you are looking to get high-quality turning capabilities, consider the Okuma LU 300 MY machine we have for sale. Contact us for more information.

Overview

brand: Okuma
year: 2006
MODEL: LU 300 MY
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
control unit brand: Okuma

Technical Information - Okuma LU 300 MY

Control Unit

Brand: Okuma
Model: OSP-P200L

Main drive

Spindle speed range: 4200 rpm 1/MIN
Spindle motor power: 22 kW
Number of axis: 3

Movement

X-AXIS Rapid traverse: 20 m/min
Z-AXIS Rapid traverse: 25 m/min

Turret

Number of turrets: 2

Additional Information

Additional equipment

Renishaw tool probe
USB, PCMCIA, and RS232 ports
Chip conveyor (hinged belt type)
Tool load monitoring and effort control
Dual pedal for chuck and tailstock operation
Fully equipped with static and live toolholders

Machine Benefits

Technical Machine Benefits

Torque (main spindle): 620 nm
Spindle nose: a2-8
Bar capacity: 75 mm
Chuck size: 250 mm (smw autoblok, quick jaw change)
Live tool speed: 4000 rpm
Live tool motor: 5. 5 kw
C-axis and y-axis: yes
Guideways: box-type (prismatic) on all axes
(upper turret with 12 live stations; lower turret with 8 positions)
Table indexing time (turret): 0. 2 seconds

Extra Information

Workpiece Max Turning Diameter: 380 mm Max Swing Diameter: 520 mm Max Turning Length: 1050 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
