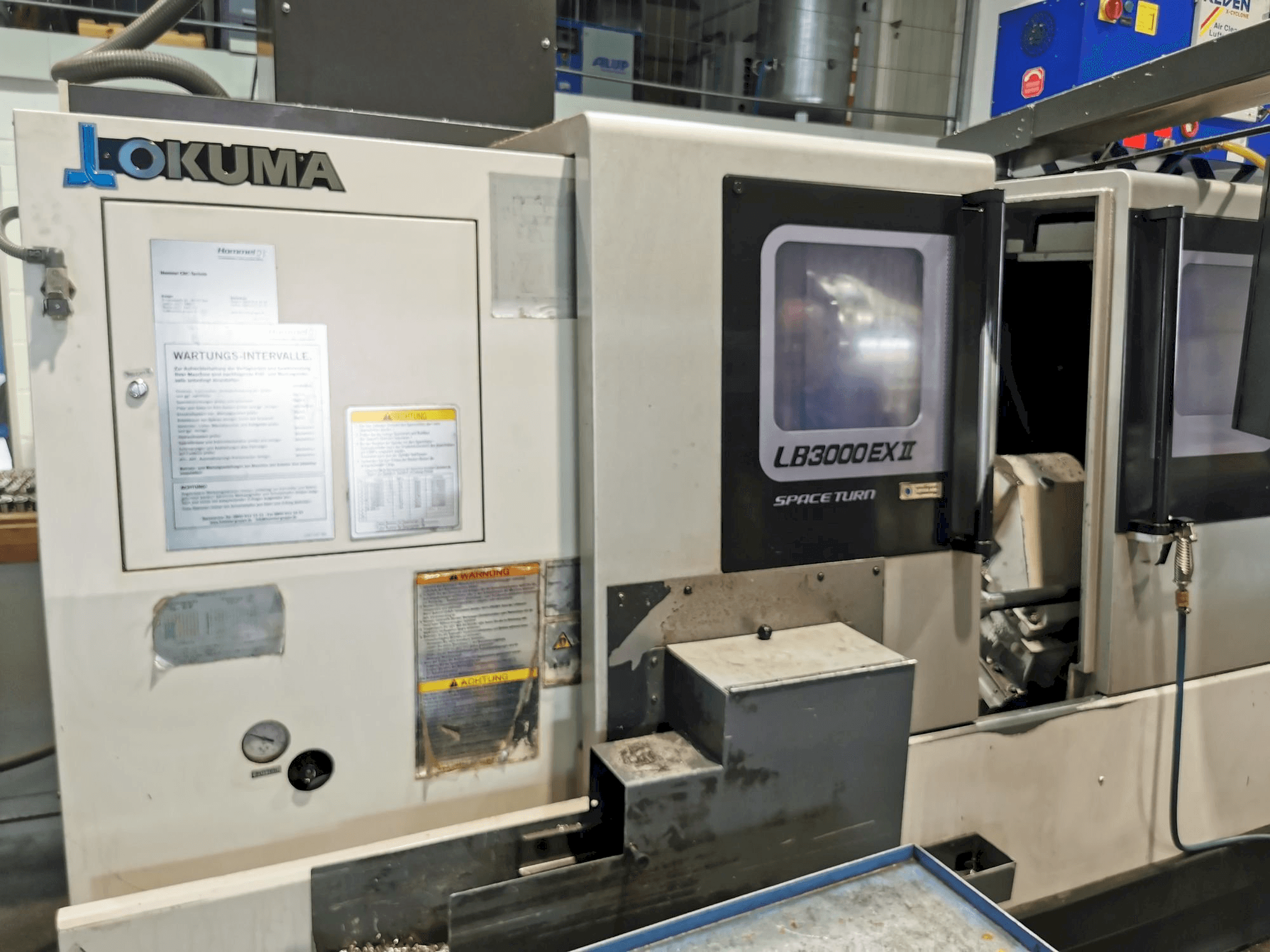

Front view of Okuma LB3000ll EX MC 1000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Okuma LB3000ll EX MC 1000

Photo Gallery

Okuma - LB3000ll EX MC 1000DE-TUR-OKU-2014-00003

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Okuma LB3000ll EX MC 1000

Show in original language

This Okuma LB3000ll EX MC 1000 Lathe was made in the year 2014 in Japan. This machine has 21010 production hours, of which 11219 are running time, 10325 are spindle hours and 9512 are machining time. It is operated through a 15'' colour 3D LCD OKUMA OSP-P300L control unit. This machine can work with a spindle speed range 50-5000 rpm and a spindle bore 80 mm.

Overview

brand: Okuma
year: 2014
MODEL: LB3000ll EX MC 1000
production hours: 21010
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: OKUMA

Technical Information - Okuma LB3000ll EX MC 1000

Control Unit

Model: OSP-P300L
Brand: OKUMA

Main drive

Spindle speed range: 50-5000 1/MIN
Spindle motor power: 22 kw
Spindle bore: 80 mm

Workpiece

Workpiece weight: 2.5 kg

Media

Main electronic connection: 400 V 50 HZ
Power consumption: 38 KVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - With nc tailstock for turning length 1000 mm
- - Main spindle: short taper 6, front bearing 120 mm, torque 427 nm
- - Drive data: 7. 1 kw, 23. 7 nm, 45-4500 rpm
- - 12-position tool turret direct mounting system ''radial'', without tool holder 45-6000 rpm
- - C-axis with resolution 0. 001º
- - Rapid traverse 12 m/min, setting force: 5 kn
- - 15'' colour lcd with 3d
- - Tool changer as set-up aid for normal chucks (when using chuck 250 mm only without jaws), for coarsened main spindle bore 110 mm not standard, but optional.
- - Diameter 210 mm, speed max. 5500 rpm
- - Actuating force 50 kn, clamping range 5-80 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
