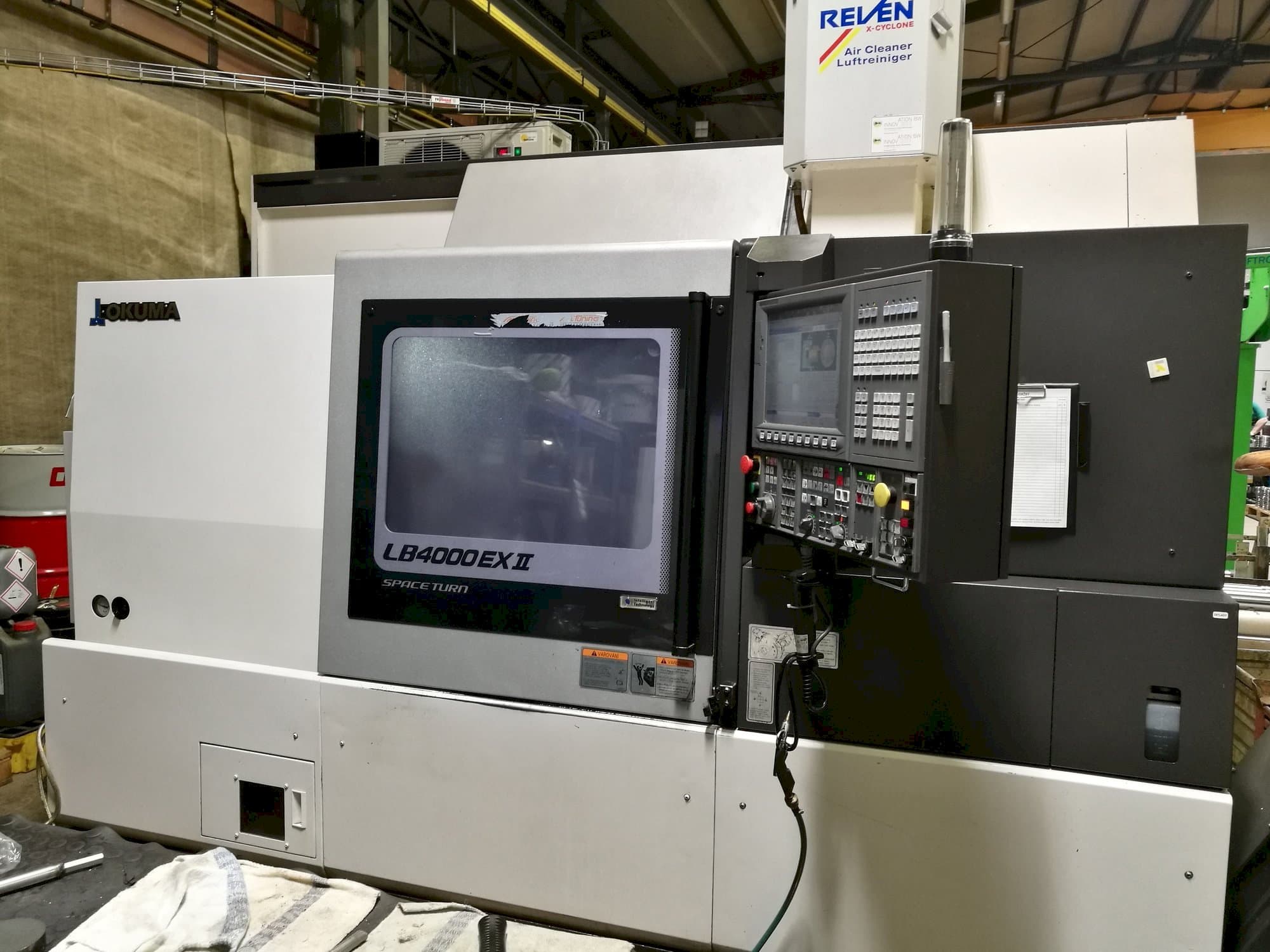

Front view of Okuma LB 4000 EX II MY 750 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Okuma LB 4000 EX II MY 750

Photo Gallery

Okuma - LB 4000 EX II MY 750CZ-TUR-OKU-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Okuma LB 4000 EX II MY 750 Lathe

Show in original language

This Okuma LB 4000 EX II MY 750 Lathe was manufactured in 2013 in Japan. It counts with 12780 on hours, from which 6170 are cutting hours. It can work with a spindle speed up to 4200 rpm. It incorporates a C axis and synchronized threading. A tailstock, a tool probe, an oil mist collector are included as well.

Overview

brand: Okuma
year: 2013
MODEL: LB 4000 EX II MY 750
production hours: 6170
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
control unit brand: OKUMA

Technical Information - Okuma LB 4000 EX II MY 750

General Data

Measurements width: 3050 mm
Measurements depth: 1900 mm
Measurements height: 2320 mm
Machine weight: 6400 kg

Control Unit

Brand: OKUMA

Main drive

Number of spindles: 1
Spindle speed range: 4200 1/MIN
Spindle motor power: 22/30 kW
Spindle bore: 112 mm

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 140 mm
Z-AXIS Movement: 840 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional equipment

- 3-jaw chuck Kitagawa 12''

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing 670 mm
- - Max. Cutting diameter 430
- - Max. Turning length 380
- - Tailstock, tool probe, oil mist collector
- - Live tools - 6000 rpm, power 7. 5/4. 3 kw
- - C axis, synchronized threading
- - Collision avoidance system, one-touch igf advance m-e
Qualitative Machine Benefits:
- - Regularly serviced and maintained
- - Low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
