GINDUMAC
Products
Machine Tools

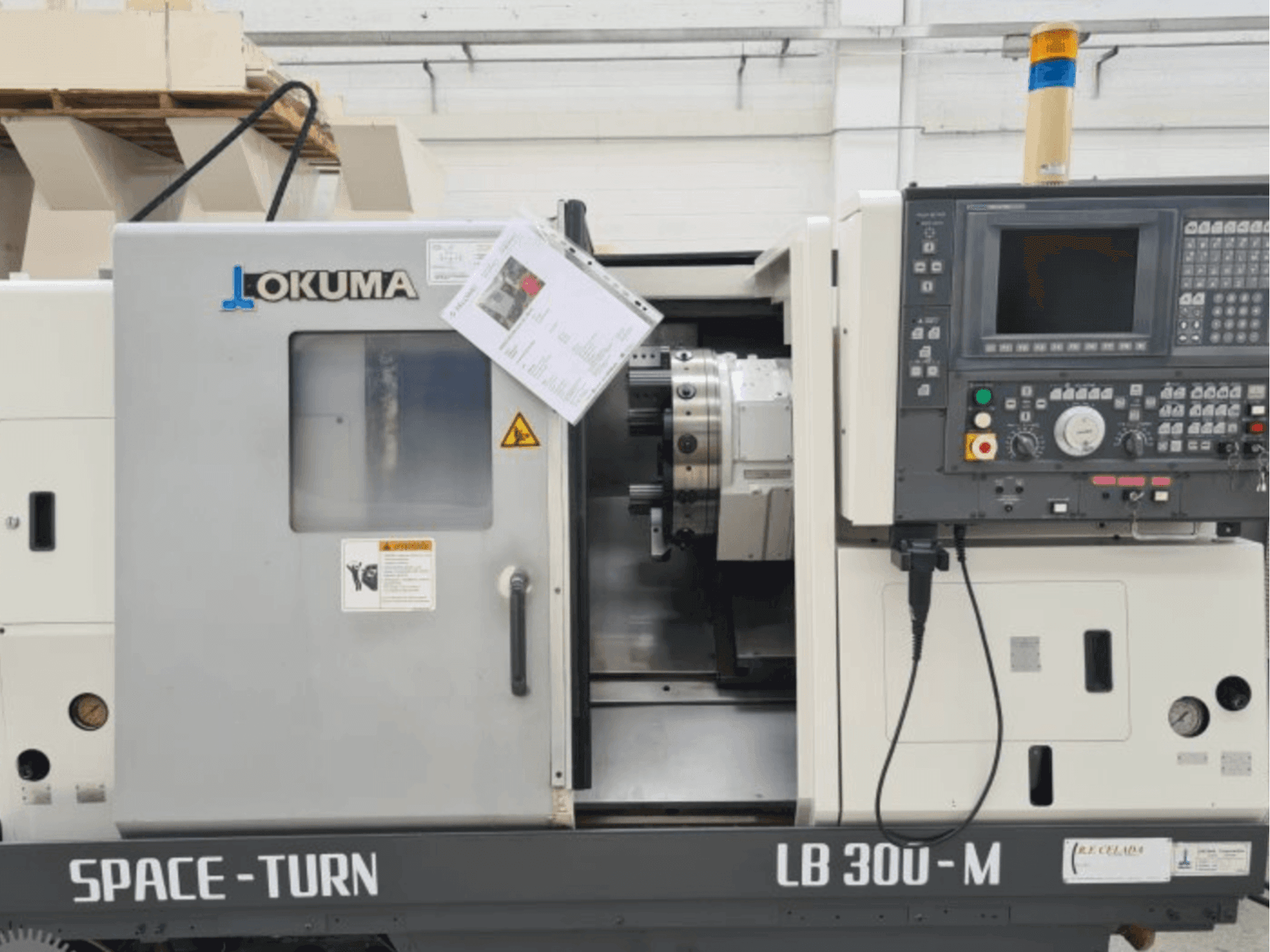

Okuma LB 300 Lathe

Show in original language

This Okuma LB 300 Lathe was manufactured in the year 2012. It is equipped with an Okuma OSP U100L control unit. The machine has a spindle speed of 45-3800 rpm.

Overview

brand: Okuma
year: 2012
MODEL: LB 300
production hours: 6202
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: OKUMA

Technical Information - Okuma LB 300

Control Unit

Model: OSP U100L
Brand: OKUMA

Main drive

Spindle speed range: 45-3800 1/MIN

Movement

X-AXIS Movement: 280 mm
Z-AXIS Movement: 500 mm
C-AXIS Movement: 360° MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max diam. Turning 340 mm
- - Max turning length 480 mm
- - Distance between centers 500 mm
- - Incremental x z axes from 0. 001 to 1. 000 mm
- - Asa 8 spindle
- - Bar passage diameter 65 mm
- - 2 electronic ranges
- - Motorized tool revolutions 45-4500 rpm, speed 2 ac power 3. 3 kw
- - Turret type: v 12 ncm, stations 12, square tool section 25 mm, bar section 40 mm
- - Tailstock: sleeve diameter 90 mm, steerer travel 120 mm ,mt5 steerer attachment
Qualitative Machine Benefits:
- - Vdi 40 turret
- - Kitagawa b208 chuck
- - Chip conveyor
- - I blow air
- - Robot interface
- - High pressure refrigeration pump
- - Automatic door
- - Various turning tool holder kits (for external and internal)
- - 4 radial driven tools ~ 4 axial driven tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
