➤ Used Okuma LB 3000 EXII For Sale | gindumac.com

Show in original language

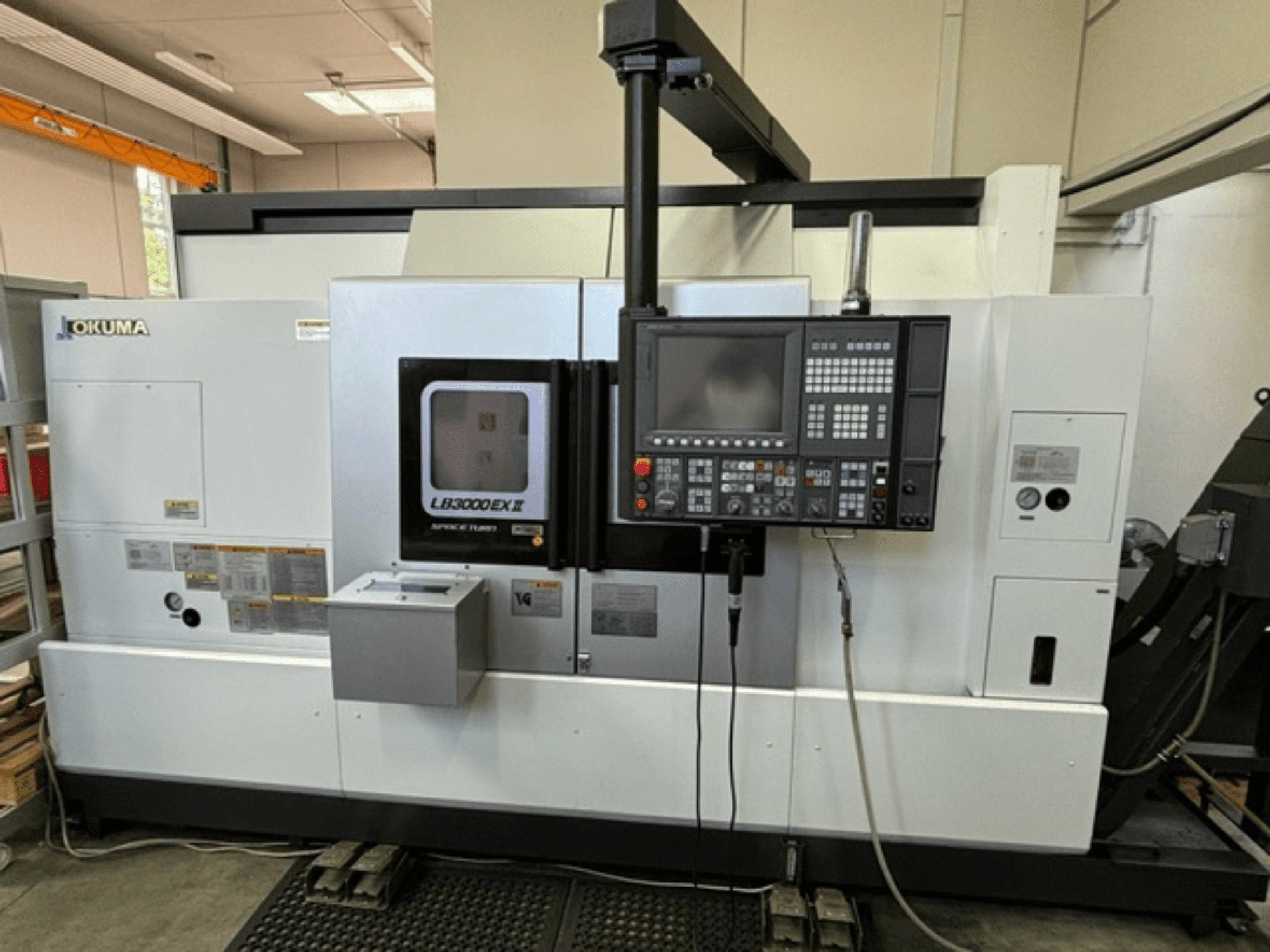

This 4-axis Okuma LB 3000 EXII was manufactured in 2022. It features a spindle speed of 5,000 rpm and a bar capacity of 52 mm. The machine includes a 12-position motorized turret and a Y-axis travel of 120 mm. If you are looking to get high-quality turning capabilities, consider the Okuma LB 3000 EXII horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: Okuma
year: 2022
MODEL: LB 3000 EXII
production hours: 215
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - Okuma LB 3000 EXII

Movement

Number of Axes: 4
X-axis Travel: 260 mm
Y-axis Travel: 120 mm
Z-axis Travel: 1010 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Power: 22 kW
Spindle Speed: 5000 RPM

Additional Information

- Control: OSP-P300LA

- Spindle Speed: 5,000 rpm

- Spindle Power: 22 kW

- Spindle Nose: ASA 6" (80 mm bore, without drawbar)

- Bar Capacity: 52 mm (Kitagawa SR1453 cylinder)

- Spindle Orientation: Electric

- Y-Axis Travel: 120 mm

- C-Axis Rotation: 360° (0.001° increments)

- Turret: 12-position radial, motorized

- Turret Motor Speed: 6,000 rpm

- Turret Motor Power: 7.1 kW

- Tailstock: CM5 (500 kgf thrust, rotating center)

- Tool Holders: Eppinger live/static tool holders

- High-Pressure Coolant Pump: 0.8 kW, 6 bar, 20 l/min

- Tool Presetting: Manual

- Programming: Plain text dialog IGF

- Chip Conveyor: Enomoto hinged belt type chip conveyor with external control box

- Voltage: 400 V

- Number of Phases: 3 P

- Frequency: 50 Hz

- Max Power Consumption: 33.1 kVA

- Total Current Consumption: 47.8 A

- Max Motor Current: 154 A

- Control Cabinet Short Circuit Strength: 2.5 kA

- Machine is a Showroom machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
