➤ Used Okuma LB 3000 EX For Sale | gindumac.com

Show in original language

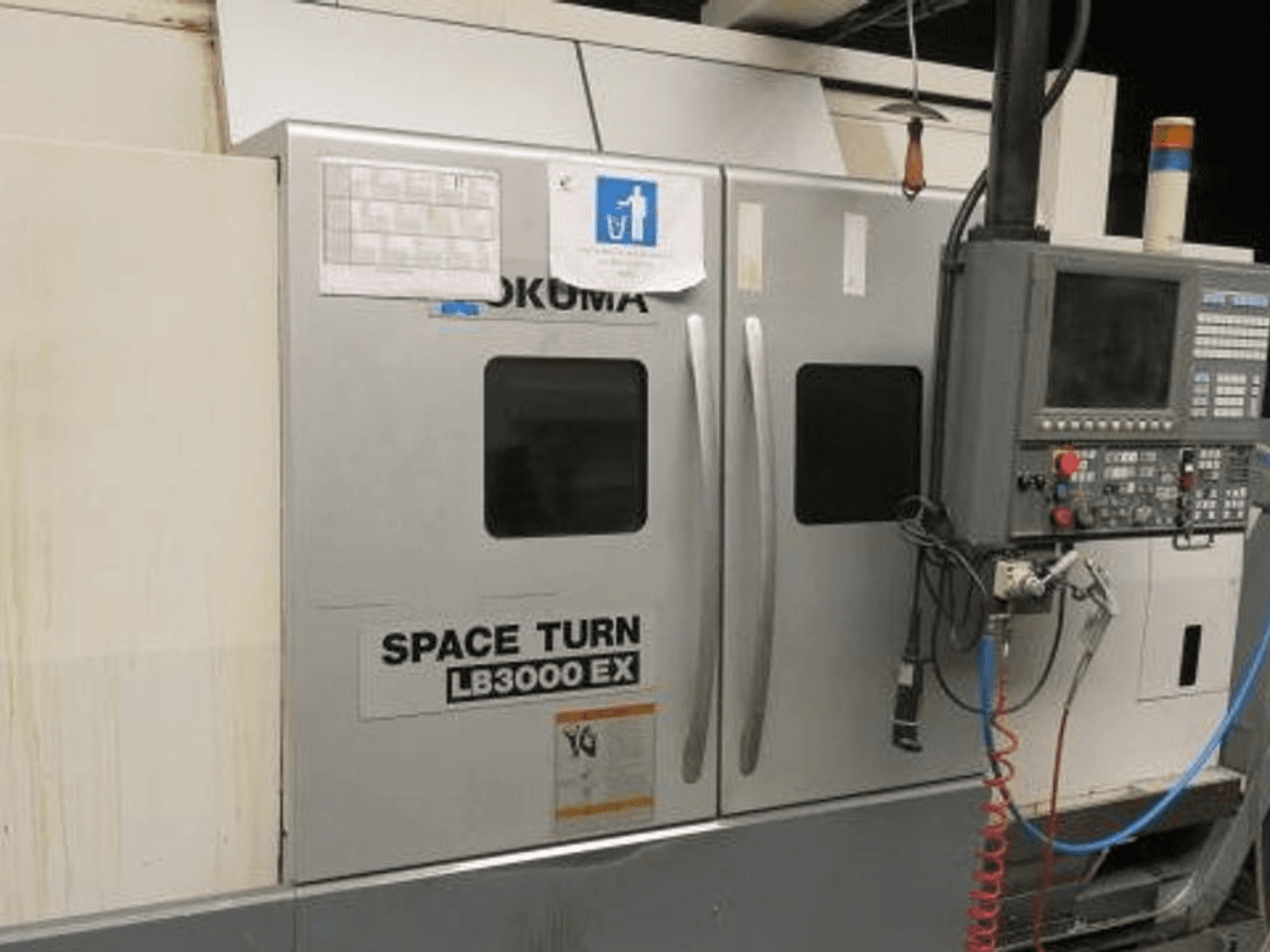

This 3-axis Okuma LB 3000 EX turn-mill centre was manufactured in 2011. It features a maximum turning diameter of 340 mm, a turning length of 950 mm, and a spindle speed up to 5,000 rpm. The machine includes a 12-position tool turret and supports driven tool speeds up to 6,000 rpm. If you are looking to get high-quality turning and milling capabilities, consider the Okuma LB 3000 EX machine we have for sale. Contact us for more information.

Overview

brand: Okuma
year: 2011
MODEL: LB 3000 EX
application type: Turning
Location: Italy
machine type: Turn-Mill Centre

Technical Information - Okuma LB 3000 EX

Movement

Number of Axes: 3
X-axis Travel: 260 mm
Y-axis Travel: 120 mm
Z-axis Travel: 1010 mm

Technical Specification

Driven Tools: Yes
Spindle Power: 22 kW
Spindle Speed: 5000 RPM

Additional Information

Maximum turning length: 950 mm
Distance between centers: 970 mm
Maximum turning diameter: 340 mm
Rapid traverse X: 25 m/min
Rapid traverse Z: 30 m/min
Rapid traverse Y: 12.5 m/min
C-axis speed: 200 rpm
Tool turret: Okuma, 12 positions
Driven tool speed: 45–6,000 rpm
Driven tool power: 4.1 / 7.1 kW
Tailstock travel: 1,015 mm
Tailstock taper: CM 5
Maximum tailstock thrust: 5 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
