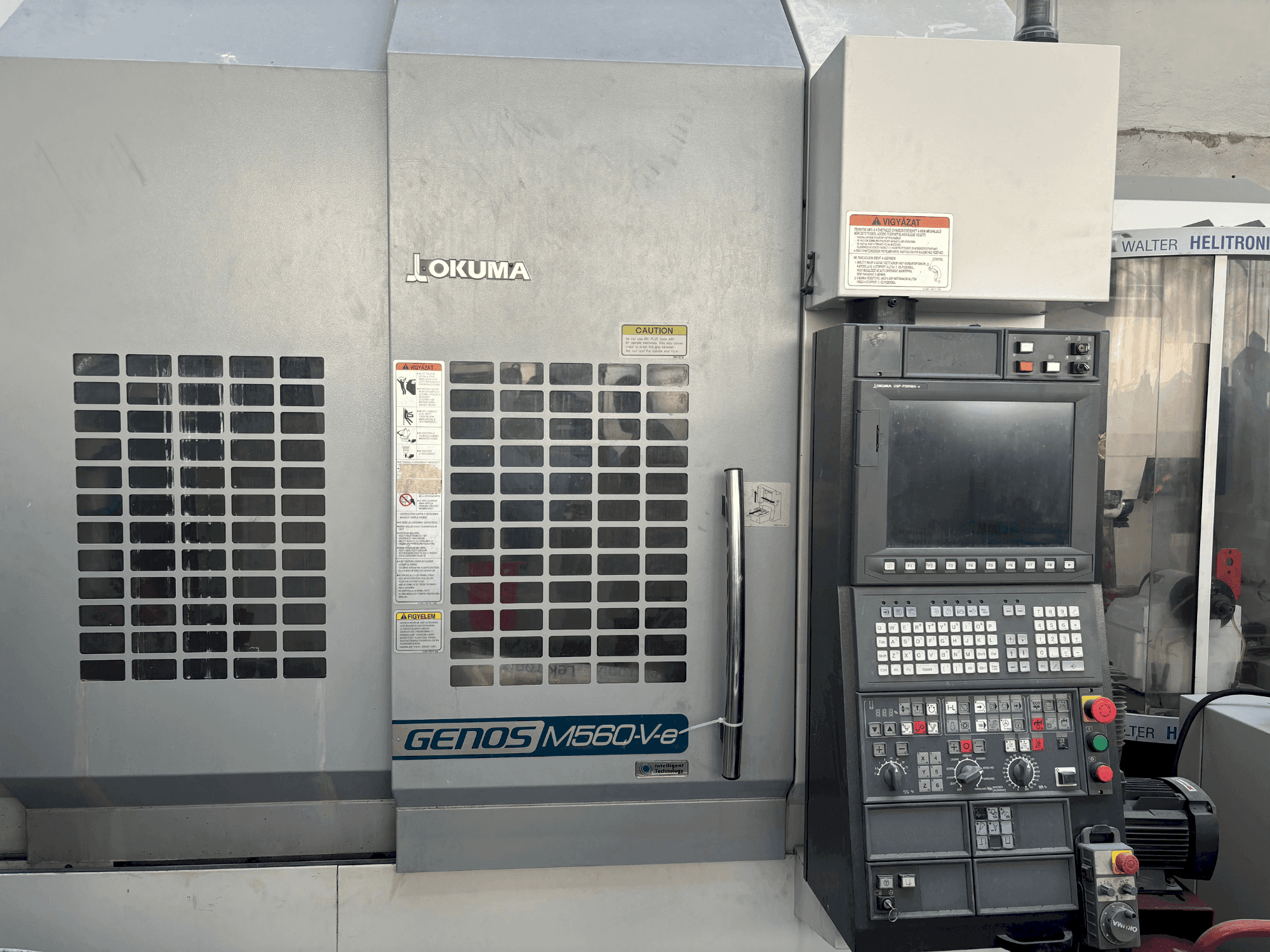

Front view of Okuma Genos M56-V-e machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Okuma Genos M56-V-e

Photo Gallery

Okuma - Genos M56-V-eHU-MIL-OKU-2019-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Okuma Genos M56-V-e For Sale | gindumac.com

Show in original language

This 3-axis Okuma Genos M56-V-e vertical machining centre was manufactured in 2019. It features a spacious 1,300 mm x 560 mm table, a high-speed spindle capable of up to 15,000 RPM, and a robust 32-tool automatic tool changer. The rapid traverse rates are 40 m/min for the X/Y-axis and 32 m/min for the Z-axis. Ideal for handling complex parts with its powerful 22 kW spindle motor. For more information about this vertical machining centre, please reach out to us.

Overview

brand: Okuma
year: 2019
MODEL: Genos M56-V-e
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
availability: Sold
control unit brand: OKUMA

Technical Information - Okuma Genos M56-V-e

General Data

Measurements width: 2783 mm
Measurements depth: 2610 mm
Measurements height: 2940 mm
Machine weight: 8800 kg

Control Unit

Model: OSP-P300MA-H
Brand: OKUMA

Main drive

Number of spindles: 1
Spindle speed range: 15000 RPM 1/MIN
Spindle motor power: 22 kW
Tool taper: CAT 40 or BT 40
Number of axis: 3

Movement

X-AXIS Movement: 1050 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 460 mm

Table

Outer length: 1300 mm
Outer width: 560 mm
Table load: 900 kg

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Cooling System: Integrated through-spindle coolant and flood coolant system
- Chip Management: Chip auger or conveyor system for efficient chip removal
- Safety Features: Full enclosures, interlocked doors, and emergency stop functions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
