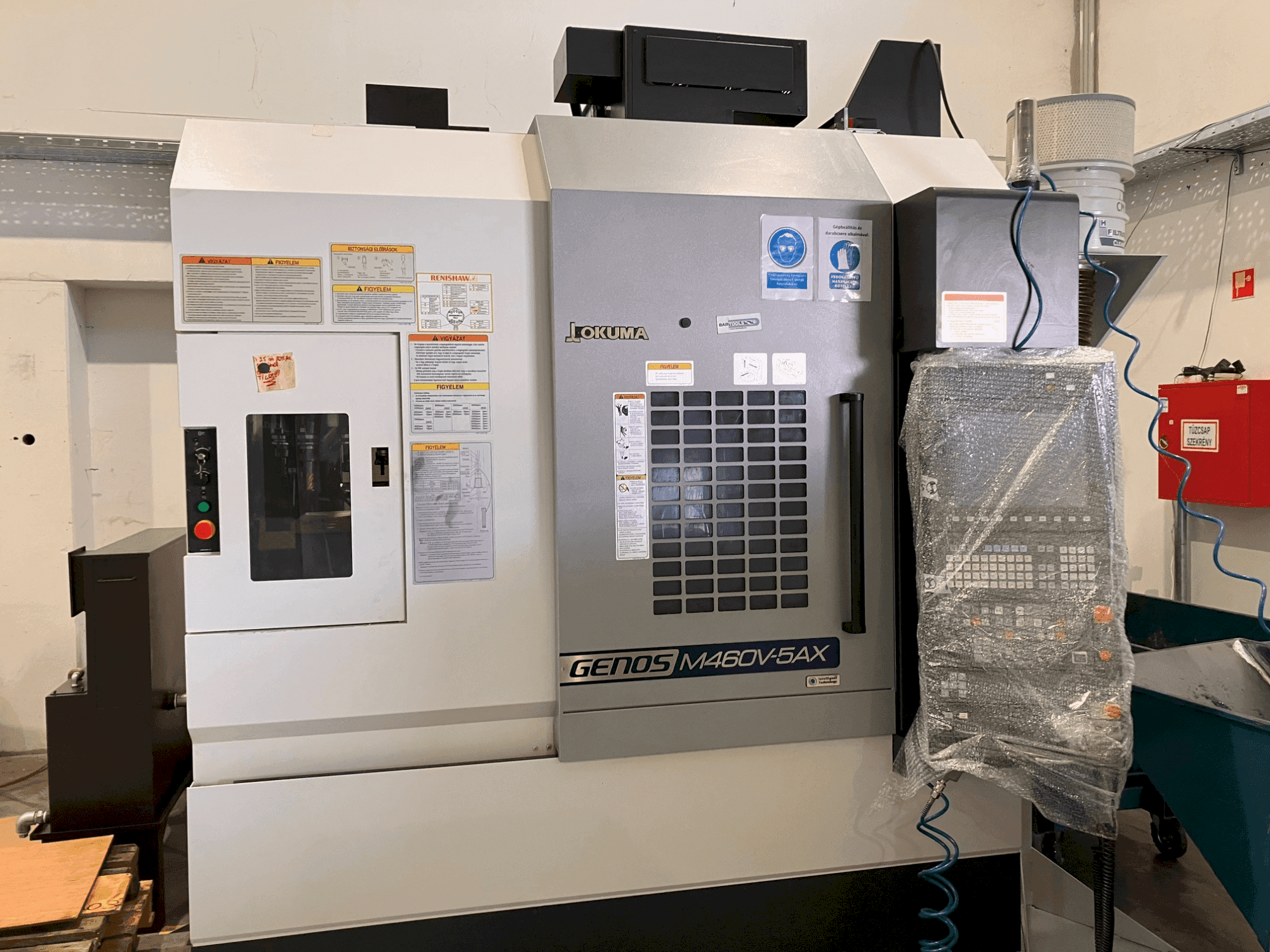

Front view of Okuma GENOS M460V-5AX machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Okuma GENOS M460V-5AX

Photo Gallery

Okuma - GENOS M460V-5AXHU-MIL-OKU-2019-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Okuma GENOS M460V-5AX For Sale | gindumac.com

Show in original language

This 5-axis Okuma GENOS M460V-5AX was manufactured in 2019, featuring a rapid traverse speed of 40 m/min in X/Y-axis and 32 m/min in Z-axis. It includes a high-speed trunnion-type 2-axis rotary table, a 48-tool ATC, and a main spindle speed up to 15,000 min-1. Ideal for complex machining tasks, consider the opportunity to buy this Okuma GENOS M460V-5AX vertical machining centre. Contact us for more information about this machine.

Overview

brand: Okuma
year: 2019
MODEL: GENOS M460V-5AX
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre

Technical Information - Okuma GENOS M460V-5AX

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: 22/18.5 kW
Spindle bore: 70 mm
Number of axis: 5

Movement

X-AXIS Rapid traverse: 40 m/min
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Rapid traverse: 32 m/min

Additional Information

Additional equipment

Spindle Head Cooling with Oil Controller
Hydraulic Power Pack for Tool Unclamping
ATC Air Blower
Chip Air Blower, Nozzle Type
Coil Type Chip Conveyor, 0.1 kW x 2 pcs
Chip Pan
Pre-arrange for Lift-up Chip Conveyor Floor Type M-A Type
Thermo Active Dimension Stabilizer-Spindle (TAS-S)
Thermo Active Dimension Stabilizer-Construction (TAS-C)
Totally Enclosed Guard (CE Mark Application)

Machine Benefits

Technical Machine Benefits

Status indicator lamp, 2-layer type (blue: operation end lamp / yellow: alarm lamp)
5-axis auto tuning system
Geometric error gauging
Geometric error compensation
Straightness compensation
Auto work gauging with renishaw touch probe rmp60
Cutting feedrate: max. 32 m/min.

Extra Information

CNC Controller: OSP-P300MA with 15" Colour Display, Touch Panel Program Storage Capacity: 4GB Operation Buffer: Standard 2MB Easy-to-Operate Functions Absoscale X/Y/Z-axis Workpiece Table: Trunnion-type High speed 2-axis rotary table Table Size: Diameter 400mm A-axis Speed: 40 min-1 C-axis Speed: 50 min-1 Tools 48-tool ATC ATC Specification: MAS BT40 + JIS Special pull stud (with through hole) Media Coolant Supply System: Tank Capacity: 170L (Effective 100L) Pump Motor: 0.25 kW Shower Coolant Supply Through-the-Spindle Coolant Supply System, Middle Pressure 1.5 MPA / 20L/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
