Okuma Genos L300MW

Photo Gallery

Video gallery

SOLD

Okuma - Genos L300MW

2013

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

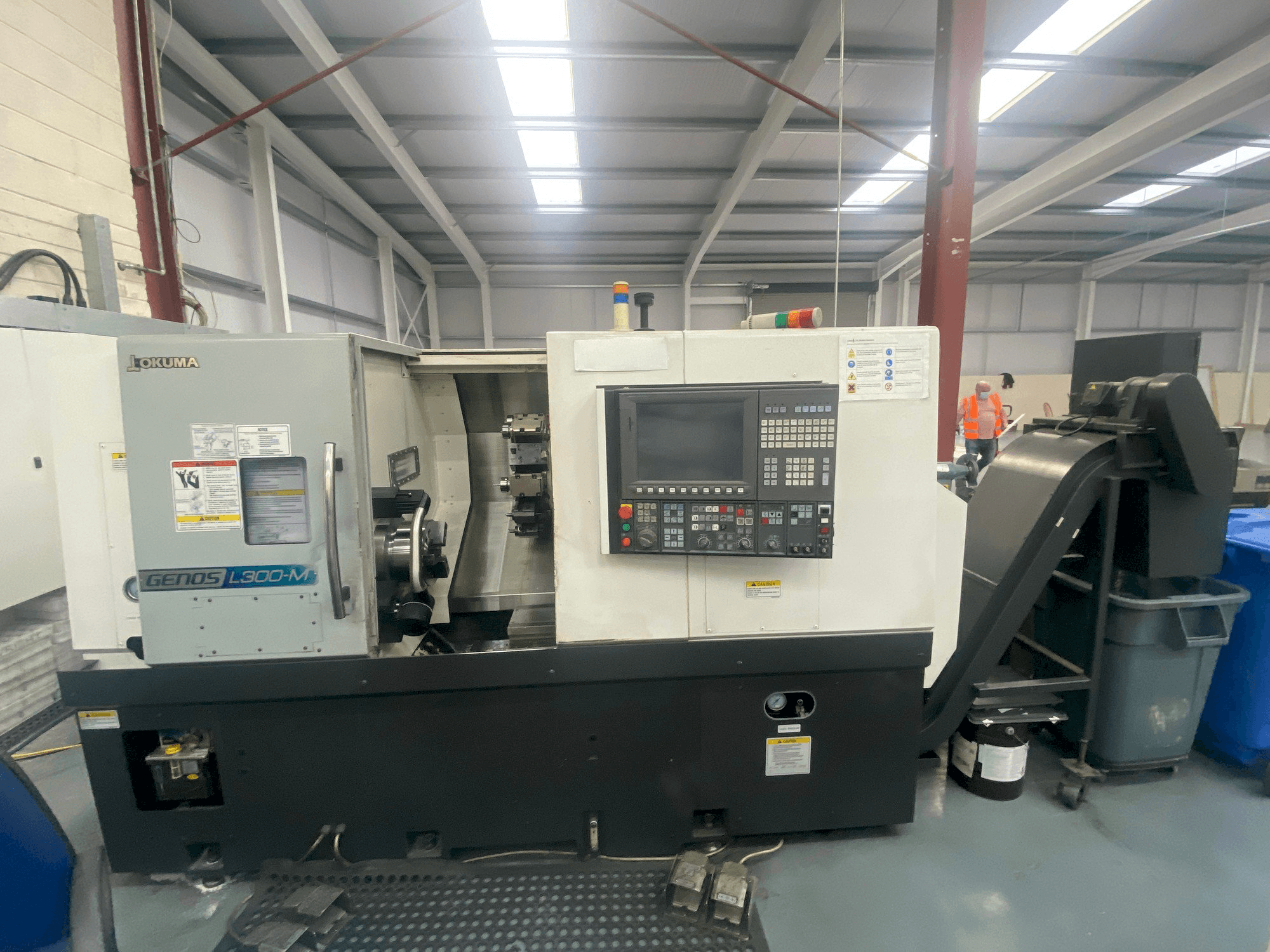

Okuma Genos L300MW Lathe

Show in original language

This Okuma Genos L300MW Lathe was made in Taiwan in 2013. It shows 6705 operating hours. It is equipped with a control unit of the same brand. This 4 axis machine can works with a spindle speed up to 3000 rpm. Includes tool holders with driven holders, sets of chuck jaws and a machine manual. It has been working for medical device industry. Very Good Condition.

Overview

brand: Okuma
year: 2013
MODEL: Genos L300MW
production hours: 6705
application type: Turning
Location: Ireland
machine type: Lathe
availability: Sold
control unit brand: Okuma
GINDUMAC ID: IE-TUR-OKU-2013-00001

Technical Information

General Data

Measurements width: 3030 mm
Measurements depth: 2240 mm
Measurements height: 2210 mm
Machine weight: 5300 KG

Control Unit

Brand: Okuma
Model: OSP-P300L-R
CNC main language: ENGLISH
CNC language customizable: Yes

Main drive

Number of spindles: 2
Spindle speed range: 3000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 237 mm
Z-AXIS Movement: 460 mm
C-AXIS Movement: 360 Deg MM

Workpiece

Workpiece drm: 300 mm
Workpiece z: 150 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Main electronic connection: 3 x 380V / 60Hz
Power consumption: 25.2 kVA
Chip conveyor: Yes

Additional equipment

- Tool Holders Including Driven Holders
- Sets of Chuck Jaws
- 250mm Hydraulic Chuck on Main Spindle
- 150mm Hydraulic Chuck on Sub Spindle
- Manual Tool Setter
- Shamchully 4 Jaw Chuck
- Transformer
- Set of Collets

Additional Information

Machine history

End product: Medical device parts
Industries: Medical device industry

Machine Benefits

Technical Machine Benefits:
- - Simultaneous axis operation
- - Sub spindle lathe
- - 12 station driven tool turret
- - Full c axis
Qualitative Machine Benefits:
- - Machine manual
- - Low hours
- - Very good condition
- - Well maintained machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

GENOS-L-E-7a-300Mar2015.pdf
