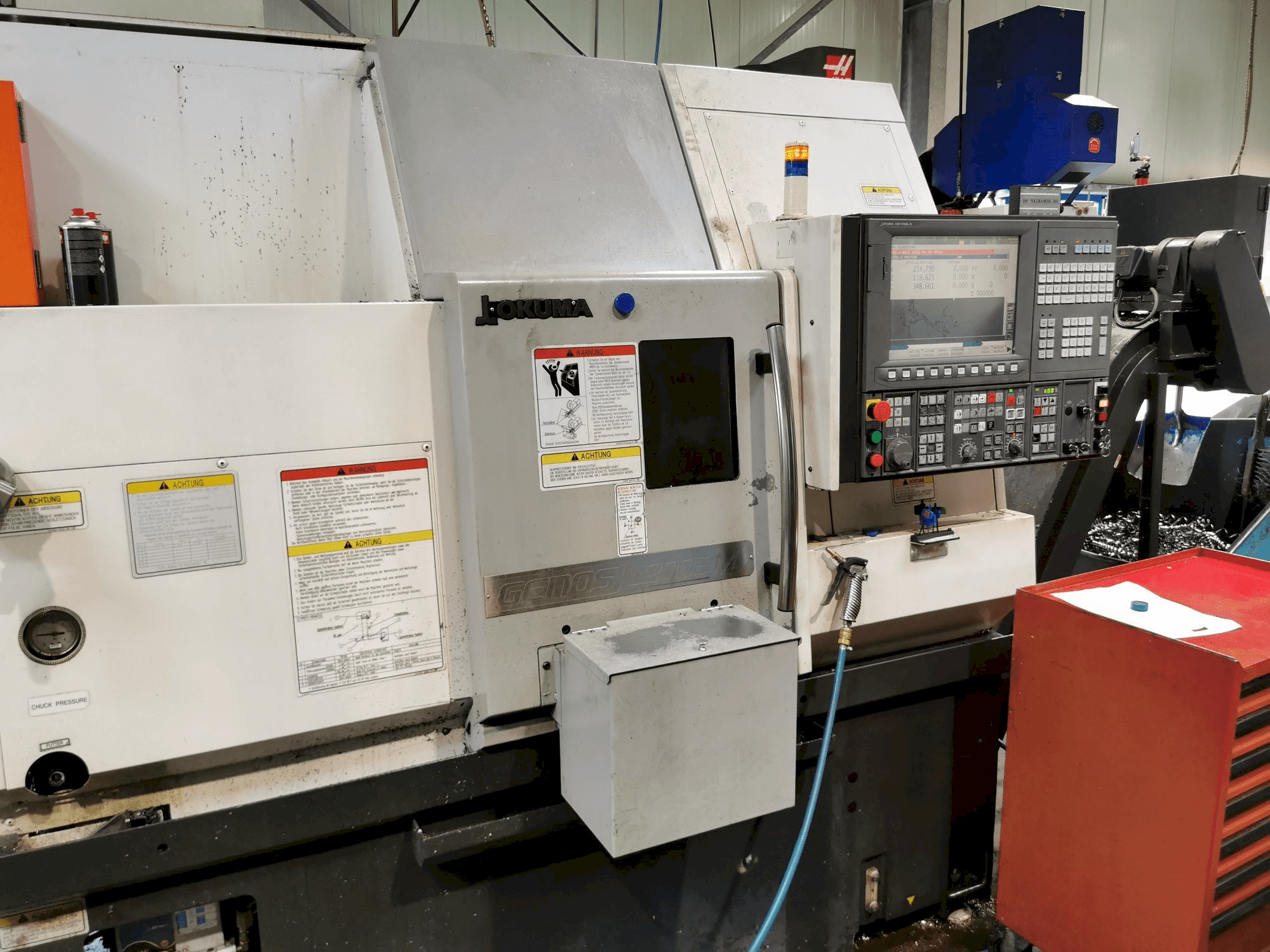

Front view of Okuma GENOS L200E-MY machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Okuma GENOS L200E-MY

Photo Gallery

Okuma - GENOS L200E-MYDE-TUR-OKU-2014-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Okuma GENOS L200E-MY

Show in original language

This Okuma GENOS L200E-MY Lathe was built in Taiwan in 2014. It has a production record of 23768 hours, of which 13225 are running time, 9657 are spindle hours and 9517 are machining time. It is equipped with an OKUMA OSP-P300L-R control unit. This machine works with a turning range 200 x 380 mm. It includes a set of tool holders for turning.

Overview

brand: Okuma
year: 2014
MODEL: GENOS L200E-MY
production hours: 23768
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: OKUMA

Technical Information - Okuma GENOS L200E-MY

General Data

Machine weight: 3900 kg

Control Unit

Model: OSP-P300L-R
Brand: OKUMA

Movement

Y-AXIS Movement: 85 mm (+30/-55 mm)

Workpiece

Workpiece weight: 1.9 kg

Additional Information

Additional equipment

set of tool holders for turning (no driven holders)
2 overturning holders short
1 lathe tool holder
2 over-turning holders long
3 inner holder H32-M 32 MM
reducing sleeves for inner holders h32-m 2 x 32 mm each to 12/16/20/25 mm
1 reducing sleeve for inner holder H32-M from 32 mm to MK2
3 protective plugs

Machine Benefits

Technical Machine Benefits

Turning range 200 x 380 mm
12 driven tool stations 4 kw / 15. 3 nm / 50-6000 rpm, c-axis, shank 30 x 55 mm
Reinforced main drive 11 kw / 93 nm / 100 -4500 rpm
Hollow clamping device with chuck 210 mm and bore in draw tube 52 mm
Reinforced coolant pump 0. 8 kw 4 bar
For workpieces up to 50 x 120 mm long

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
