Nexturn - SA 45XIT-TUR-NEX-2013-00002
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools

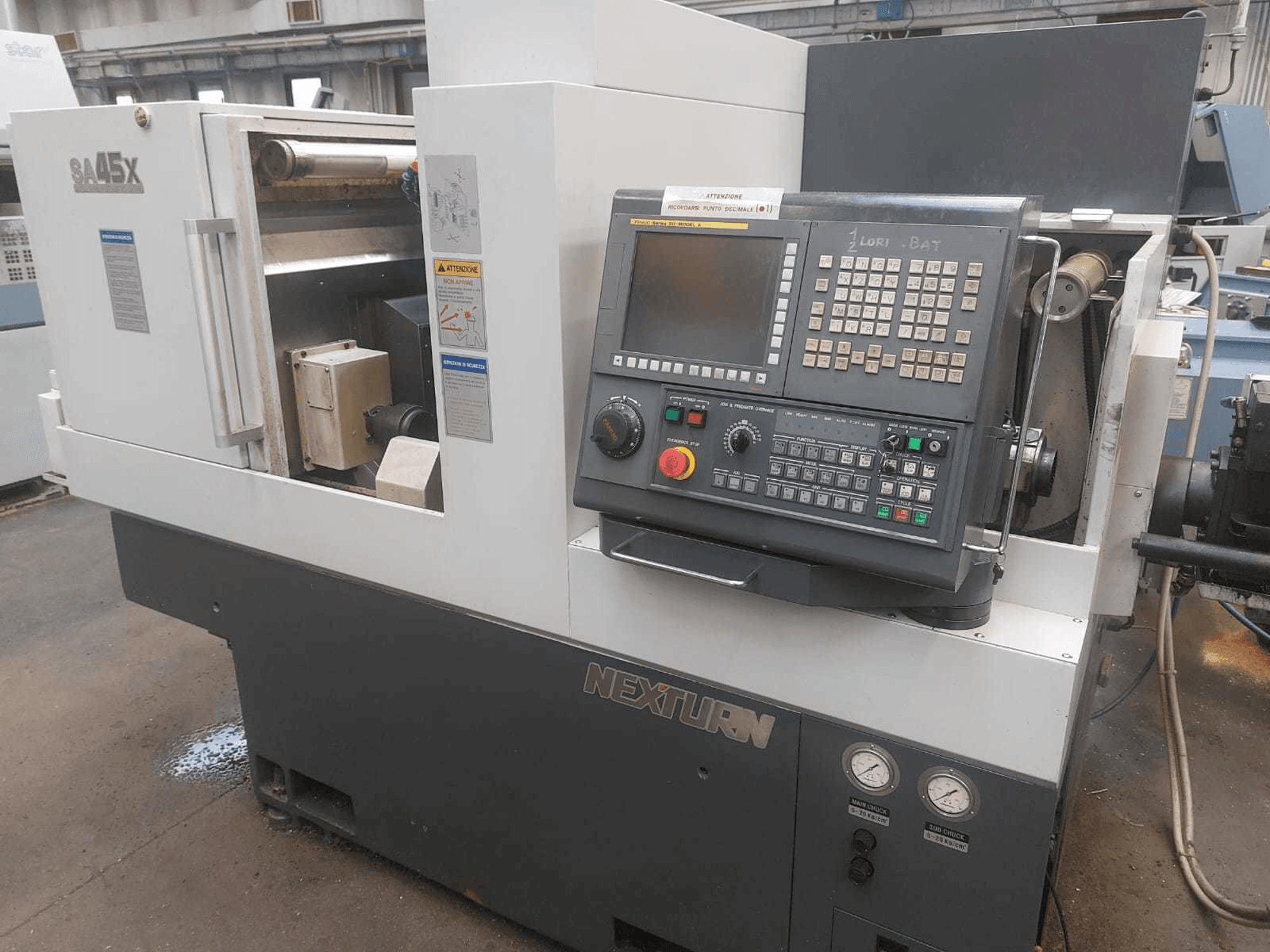

- Nexturn SA 45X Swiss Type Turning machine
This Nexturn SA 45X Swiss Type Turning machine was built in 2013 and has 18773 hours, of which 8777 are cutting hours.. It is equipped with a Fanuc Series 31i-modelA control unit and has 6 linear axes. The machine has a spindle speed of 6000 rpm. It includes a Bar feeder Iemca Boss 545.
Overview
- brand: Nexturn
- year: 2013
- MODEL: SA 45X
- production hours: 18773
- application type: Turning
- Location: Italy
- machine type: Swiss Type Turning Machine
- control unit brand: FANUC
Technical Information - Nexturn SA 45X
Control Unit
- Control Brand: FANUC
- Control Model: Series 31i-modelA
Dimensions
- Machine Depth: 1460 mm
- Machine Height: 1750 mm
- Machine Weight: 3800 kg
Movement
- Number of Axes: 6
- X-axis Travel: 135 mm
- Y-axis Travel: 260 mm
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 6000 RPM
Additional Information
Additional equipment
- Bar feeder Iemca Boss 545
Machine Benefits
Technical Machine Benefits
- Main spindle bar diameter 45 mm
- Sliding headstock travel (z1) 80 mm
- Fixed sliding headstock yes
- Number of linear axes 6
- Number of fixed tools tool holder plate 10
- Number of driven tools tool holder plate 5
- High coolant pressure yes
- Sub spindle rpm 6000, bar diameter 45 mm, x-axis travel sub spindle 180 mm, z-axis travel sub spindle 228 mm, number of back driven tool posts 4, y-axis travel 220
- Coolant used whole oil
- Chip conveyor hinged belt
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
