Nexturn NST 38

Nexturn - NST 38IT-TUR-NEX-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

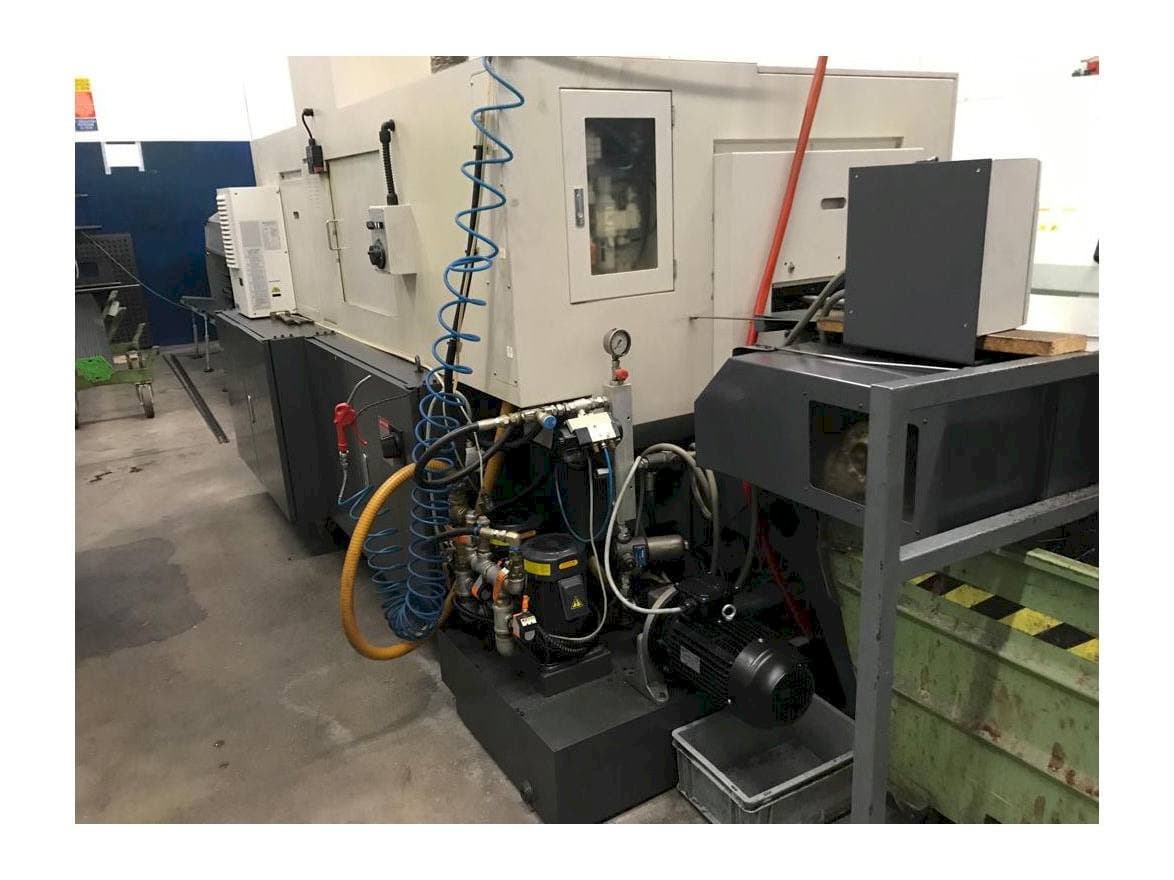

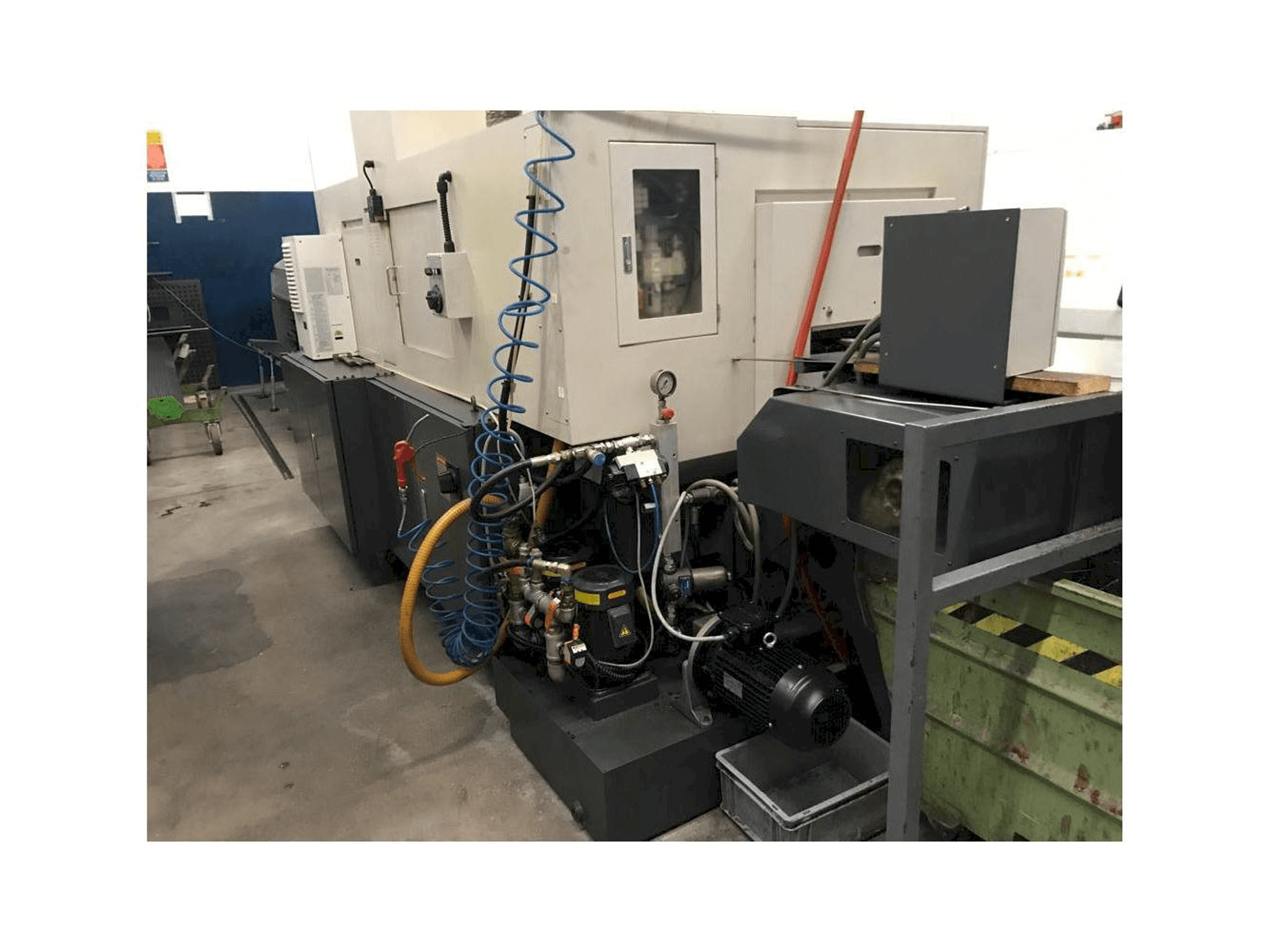

Nexturn NST 38 Lathe

Show in original language

This Nexturn NST 38 Lathe was made in 2013 in Korea. It is equipped with a Fanuc Series 31-i Model A control unit and has 11 axis. The machine has a spindle speed of 8000 rpm.

Overview

brand: Nexturn
year: 2013
MODEL: NST 38
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Nexturn NST 38

Control Unit

Model: Series 31-i Model A
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 11/15 kW
Number of axis: 11

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter from bar Ø 38 mm
- - Drilling diameter Ø 16 mm/m12
- - Turning length 150 mm
- - Hole size 16mm
- - Turning diameter from bar max. Ø8-38mm
- - Counter-spindle rotation speed: 6000 rpm
- - Counter-spindle motor power 2. 2/5. 5 kw
- - No. Of axes 11 (x1-y1-z1) (x2 -y2-z2) (x3-y3-z3) y2(c1-c2)
- - Rapid advances y1-y2-y3 24m/min
- - 8-position tool turret
Qualitative Machine Benefits:
- - Lns bar feeder
- - Accessories chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
