Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Netstal - SYNERGY 600-60CH-INJ-NET-1999-00003
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- Netstal SYNERGY 600-60

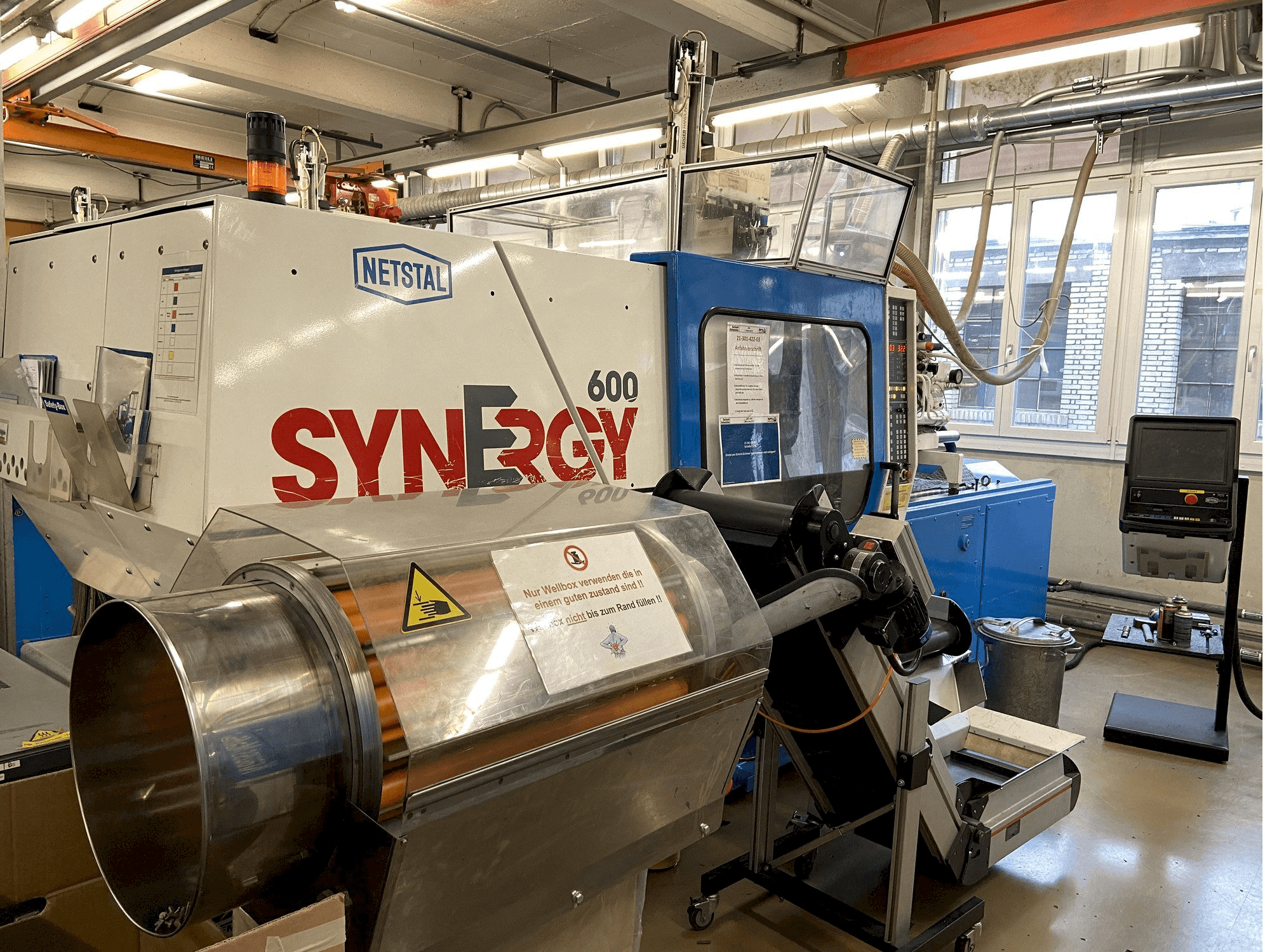

This Netstal SYNERGY 600-60 Injection Moulding Machine was built in 1999. It has 96833 production hours. This machine is operated with a control unit of the same brand. It can work with a clamping force 600 kN and an injection pressure 210 bar.
Overview
- brand: Netstal
- year: 1999
- MODEL: SYNERGY 600-60
- production hours: 96833
- application type: Injection Moulding
- Location: Switzerland
- machine type: Electrical Injection Moulding Machine
- availability: Sold
- control unit brand: NETSTAL
Technical Information - Netstal SYNERGY 600-60
Control Unit
- Model: SYCAP
- Brand: NETSTAL
Tools
- Max weight: 1250 Kg
Injection Unit
- Screw diameter: 18 mm
- Shot weight: 23,2 g/ps
- Stroke volume: 25,4 CM³
- Injection pressure: 210 bar
Clamping unit
- Clamping force: 600 kN
- Opening stroke: 0 - 340 mm
- Distance between bars: (h x v) 410 x 410 mm
- Mould height min: 200 mm
- Mould height max: 500 mm
Media
- Main electronic connection: 400 V 50 Hz
- Power consumption: 15 kW
Additional Information
- Technical Machine Benefits:
- - Injection force 59 kn
- - Opening force 196 kn
- - Tie bar diameter 65 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
