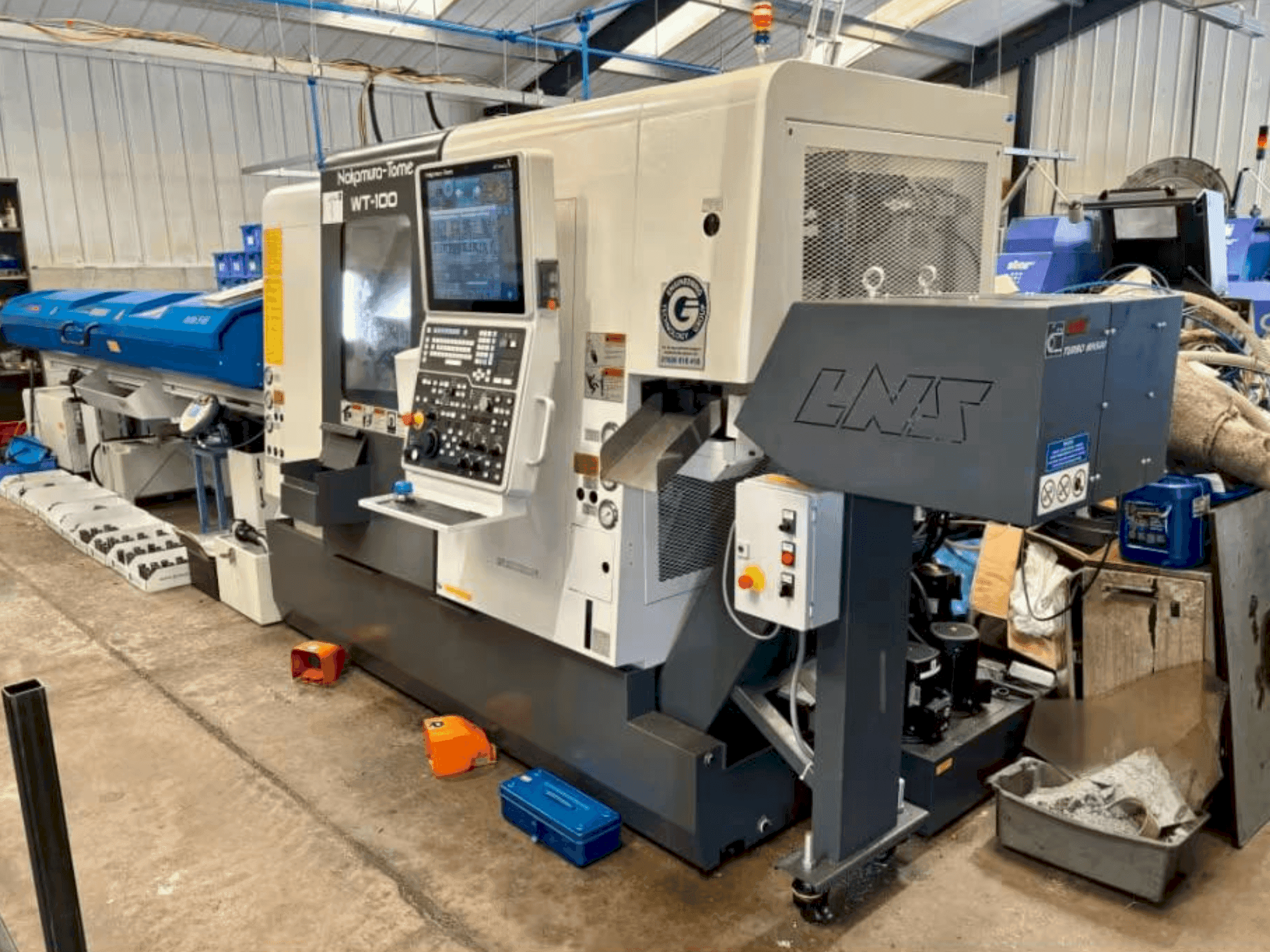

Front view of NAKAMURA WT-100 machine
Front view of NAKAMURA WT-100 machine

NAKAMURA - WT-100IT-TUR-NAK-2019-00001

Rs. 16,203,276
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 6-axis NAKAMURA WT-100 was manufactured in 2019 and features dual spindles with a speed of 6,000 rpm and a motor power of 11/7.5 kW each. It boasts a bar capacity of Ø42 mm and a maximum turning diameter of Ø190 mm. The machine includes a dodecagonal drum turret with 24 indexing positions and rapid traverse rates up to 40 m/min. If you are looking to get high-quality turning capabilities, consider the NAKAMURA WT-100 machine we have for sale. Contact us for more information.

Overview

  • brand: NAKAMURA
  • year: 2019
  • MODEL: WT-100
  • application type: Turning
  • Location: Italy
  • machine type: Horizontal Turning Machine

Technical Information - NAKAMURA WT-100

Movement

  • Number of Axes: 6
  • Y-axis Travel: 31 mm

Technical Specification

  • Spindle Speed: 6000 RPM

Additional Information

  • Main spindle:

    • Spindle nose: A2-5

    • Through bore: Ø56 mm

  • Sub spindle:

    • Speed: 6,000 rpm

    • Spindle nose: A2-5

    • Through bore: Ø56 mm

  • Distance between spindle noses: 735–210 mm

  • Bar capacity (main/sub): Ø42 mm

  • Turrets:

    • Type: Dodecagonal drum (12 stations)

    • Indexing positions: 24

    • Standard turning diameter: Ø170 mm

    • Maximum turning diameter: Ø190 mm

    • Maximum turning length: 503 mm

  • Tooling:

    • Collet chucks: Hardinge A2-5 65DL

    • Turning tool shank: 20 × 20 mm

    • Boring bar diameter: Ø25 mm

    • Driven tooling speed: 6,000 rpm (7.1 / 2.2 kW motor)

  • Axis travels:

    • X1 / X2: 135 mm

    • Z1 / Z2: 503 mm

    • C-axis: 0.001° increment

  • Rapid traverse rates:

    • X1 / X2: 16 m/min

    • Z1 / Z2: 40 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
