Show in original language

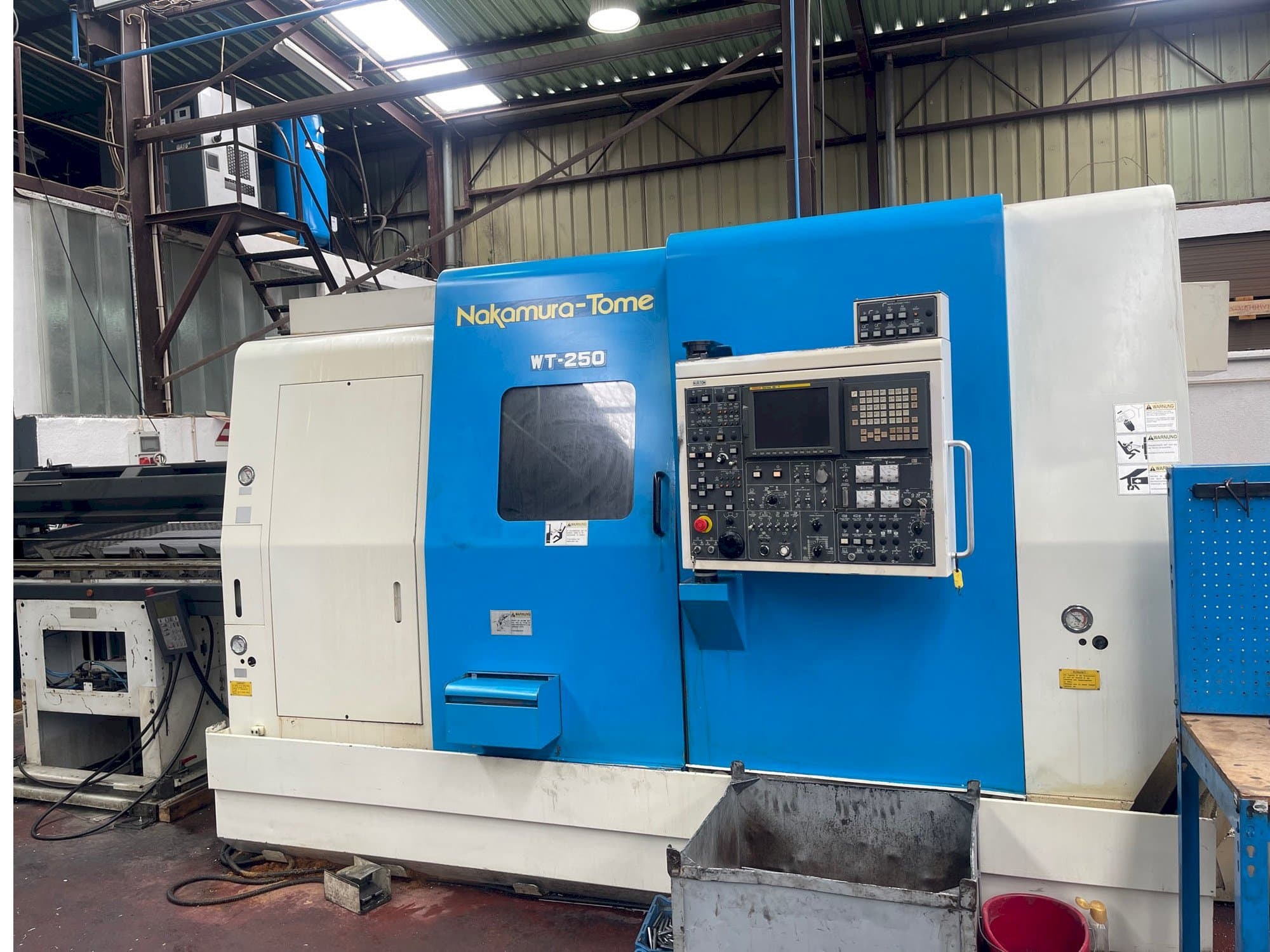

This NAKAMURA Tome WT-250 Lathe machine was manufactured in the year 2001. It has 7 axis and operates with a FANUC 18i-T control unit. The machine works with a main spindle máx. diameter bar of 65mm and a spindle speed from 59 up to 4500 rpm. Included Barfeeder 1.5M LNS QUICK LOAD SERVO + 4 driven tools.

Overview

  • brand: NAKAMURA
  • year: 2001
  • MODEL: Tome WT-250
  • application type: Turning
  • Location: Portugal
  • machine type: Turn-Mill Centre
  • control unit brand: FANUC

Technical Information - NAKAMURA Tome WT-250

Control Unit

  • Control Brand: FANUC
  • Control Model: 18i-T

Movement

  • Number of Axes: 7

Technical Specification

  • Spindle Power: 18.5 kW
  • Spindle Speed: 4500 RPM

Additional Information

Additional equipment

  • Barfeeder 1.5M LNS QUICK LOAD SERVO + 4 driven tools

Machine Benefits

Qualitative Machine Benefits

  • Turret 1 nº driven tools – 12 x/z travell: 195/600 [mm] y travell : +/- 41 [mm] drivens tools speed: 80 - 3600 [rpm] driven tools power : 3,7 [kw]
  • Turret 2 nº driven tools – 12 x/z travell: 195/600 [mm] drivens tools speed: 80 - 3600 [rpm] driven tools power: 3,7 [kw]

Technical Machine Benefits

  • Main spindle máx. Diameter bar – 65mm
  • Diameter max. Turning: 250 mm
  • Nose : a2-6
  • C axis : 0,001 [°]
  • Sub-spindle: diameter max bar – 51mm
  • Nose : a2-5
  • Power spindle: 11 kw
  • Diameter max. Turning: 165 mm
  • C axis : 0,001 ° travell: 620mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
