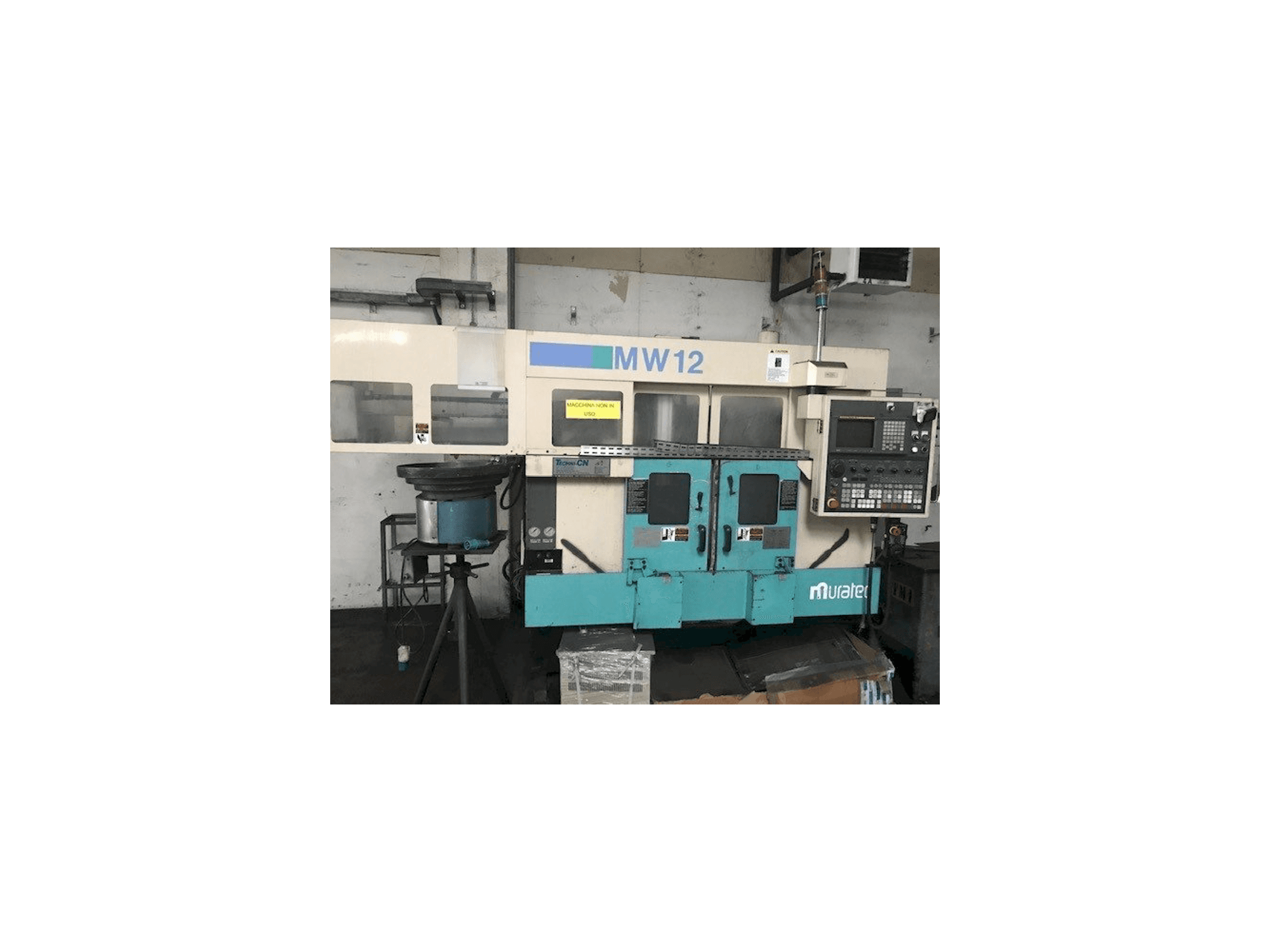

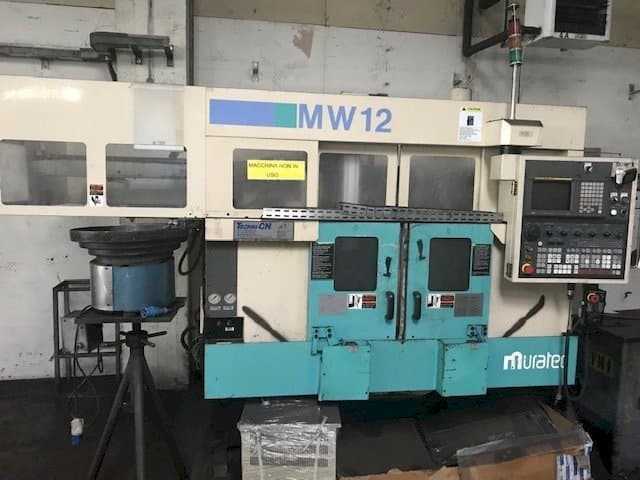

Muratec MW 12 CNC

Photo Gallery

Muratec - MW 12 CNCIT-TUR-MUR-1997-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Muratec MW 12 CNC

Show in original language

This Muratec MW 12 CNC Lathe was manufactured in 1997 in Japan. It is equipped with a Fanuc Series 16-T CNC control unit. It can works with a spindle speed range of 45-4500 rpm.

Overview

brand: Muratec
year: 1997
MODEL: MW 12 CNC
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Muratec MW 12 CNC

Control Unit

Model: Series 16-T CNC
Brand: FANUC

Main drive

Spindle speed range: 45-4500 1/MIN
Spindle motor power: 7.5 kW / 30 min

Movement

X-AXIS Movement: 130 mm
Z-AXIS Movement: 145 mm

Turret

Number of turrets: 8
Max tool length: 75 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter with magazine 120 mm
- - Max. Turning diameter without magazine 230 mm
- - Spindle diameter 210 mm
- - Distance between spindles 340 mm max. 295 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
