➤ Used MTE BT-2700 Milling Machine For Sale | gindumac.com

Show in original language

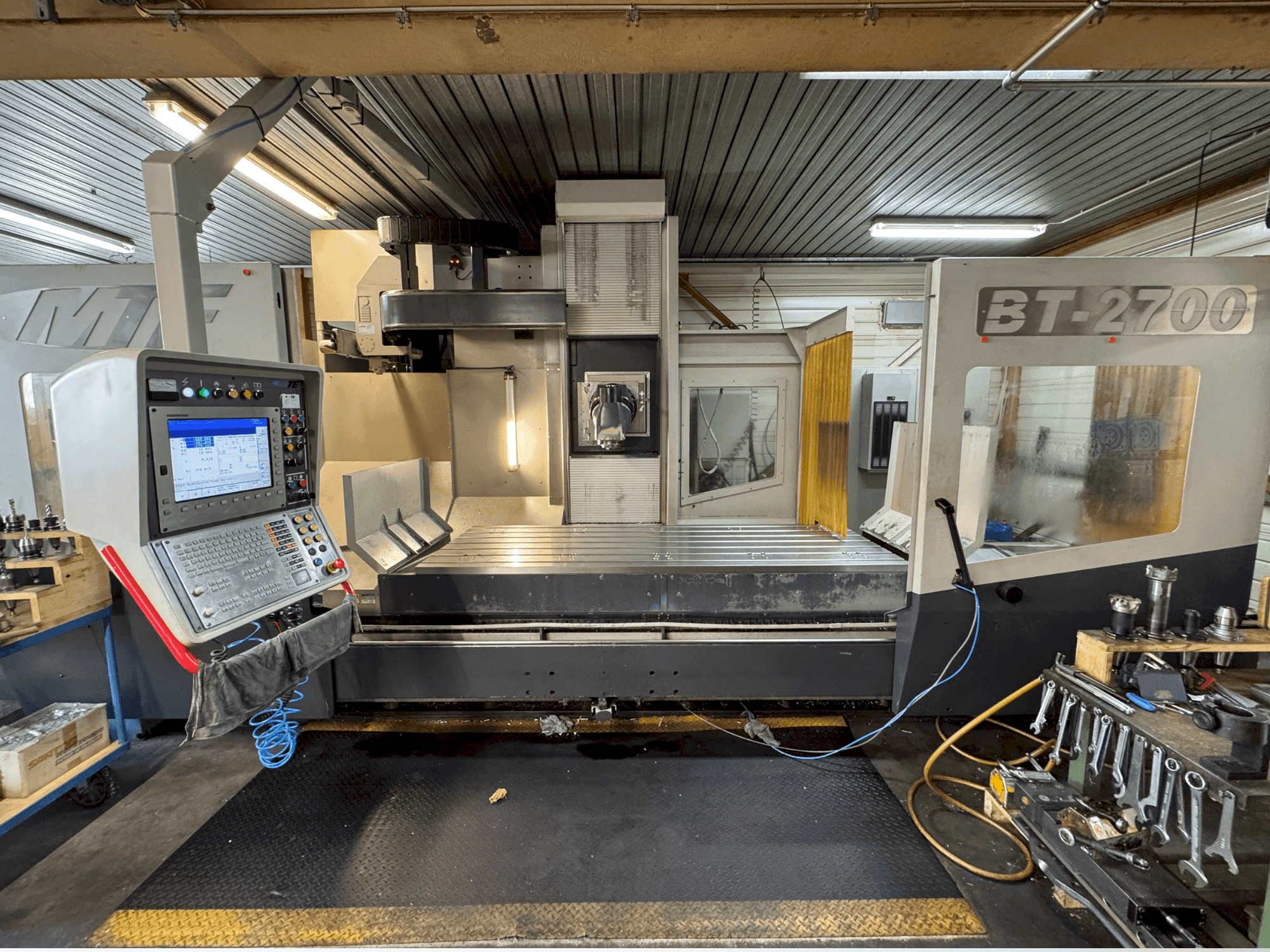

This 3-axis MTE BT-2700 CNC milling machine was manufactured in 2015. It features a robust Heidenhain ITNC 530 CNC control, a high-capacity clamping table of 2,700 mm length, and a maximum load of 9,000 kg. The machine offers a spindle speed up to 6,000 rpm and a rapid traverse rate of 25,000 mm/min. Ideal for high-precision, heavy-duty milling tasks. Contact us for more information about this machine.

Overview

brand: MTE
year: 2015
MODEL: BT-2700
application type: Milling
Location: Germany
machine type: CNC Milling Machine
control unit brand: HEIDENHAIN

Technical Information - MTE BT-2700

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530

Movement

X-AXIS Movement: 2500 MM
Y-AXIS Movement: 1200 MM
Z-AXIS Movement: 1250 MM

Additional equipment

- Hydraulic system / Cooling unit with temperature control / Cooling lubricant system Control cabinet with lighting and air conditioning unit / Telescopic cover / Work area lighting / Safety fencing and secured access door

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Clamping table/clamping surface length: 2700 mm / width: 1000 mm
- - Maximum drive power: 32 kw from 198 rpm / maximum torque: 1120 nm (constant up to 376 rpm) / speed range: 0-6000 rpm / spindle speeds 6000 rpm: low range 0-984 rpm, medium range 918-2456 rpm, high range 2404-6000 rpm
- - Cnc control with a 15. 1" flat screen and pivoting control pendulum

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
