➤ Used MTCut T20MC - 2016 - Lathe For Sale | gindumac.com

Show in original language

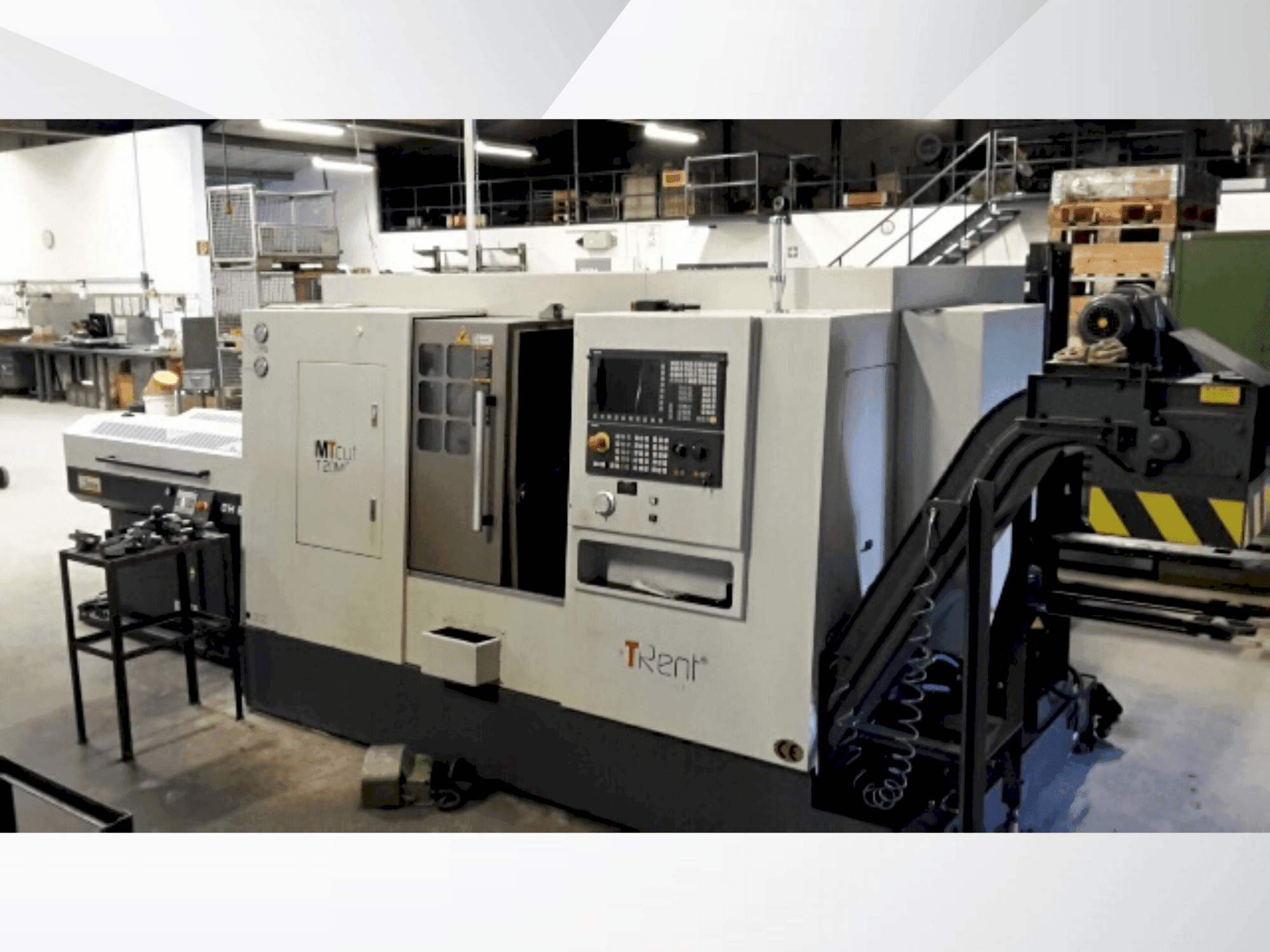

This MTCut T20MC lathe was manufactured in 2016. It features a Siemens 828D control, a turning diameter of 196 mm, and a Sauter turret with VDI30, all 12 stations driven. Additional features include an integrated measuring arm, parts catcher, tailstock, chip conveyor, and a high-pressure pump. It also comes with a bar loader LNS for 1 - 1.2 m bars and a retrofitted collet chuck system with a 52mm aperture. For more information about this lathe, please reach out to us.

Overview

brand: MTcut
year: 2016
MODEL: T20MC
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: Siemens

Technical Information - MTcut T20MC

Control Unit

Brand: Siemens
Model: 828D

Main drive

Number of axis: 2

Movement

X-AXIS Movement: 161 MM
Z-AXIS Movement: 520 MM

Workpiece

Workpiece drm: 196mm

Additional equipment

- Sauter turret with VDI 30 all 12 stations driven
- Integrated measuring arm
- Parts catcher
- Tailstock
- Chip conveyor
- High-pressure pump
- Bar loader LNS for 1 - 1.2m bars
- Collet chuck system for E185 52mm aperture

Additional Information

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
