MT Cut V110H Vertical Machining Center

Show in original language

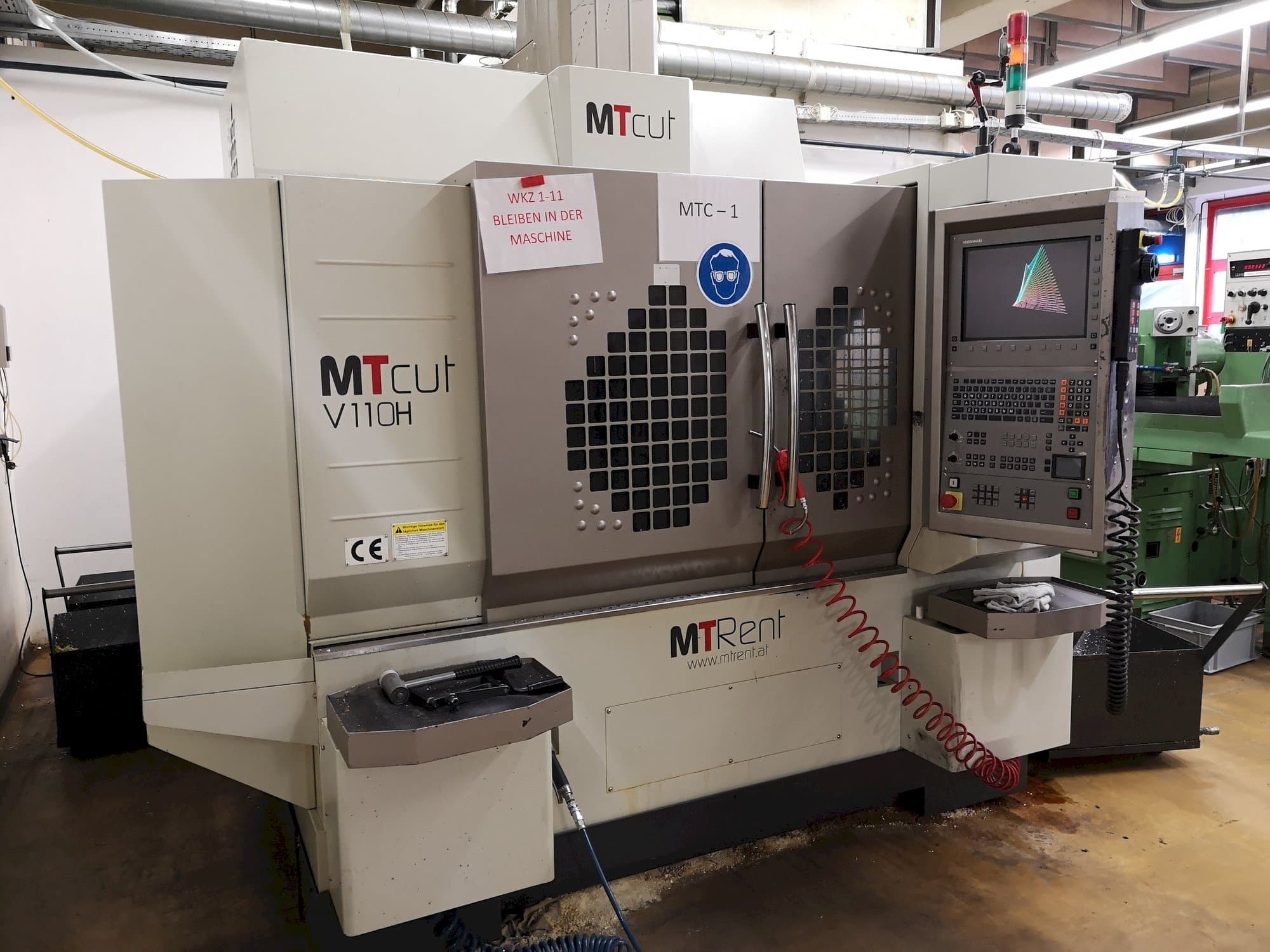

This MT Cut V110H Vertical Machining Center was built in Taiwan in the year 2007. It is equipped with a Heidenhain control unit. Its BB40 spindle can operate with a speed up to 12000 rpm.

Overview

brand: MTcut
year: 2007
MODEL: Cut V110H
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MTcut Cut V110H

Control Unit

Control Brand: HEIDENHAIN

Dimensions

Machine Depth: 2870 mm
Machine Height: 3000 mm
Machine Weight: 8500 kg
Table Length: 1250 mm
Table Load: 1000 kg
Table Width: 610 mm

Movement

X-axis Travel: 1100 mm
Y-axis Travel: 610 mm
Z-axis Travel: 610 mm

Technical Specification

Spindle Speed: 12000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Spindle diameter Ø 70mm
Positioning accuracy 0. 005mm
Repeat accuracy x. Y. And z-axis 0,003mm
Distance spindle nose - work table 120 - 730mm
Distance spindle centre to stand 668mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
