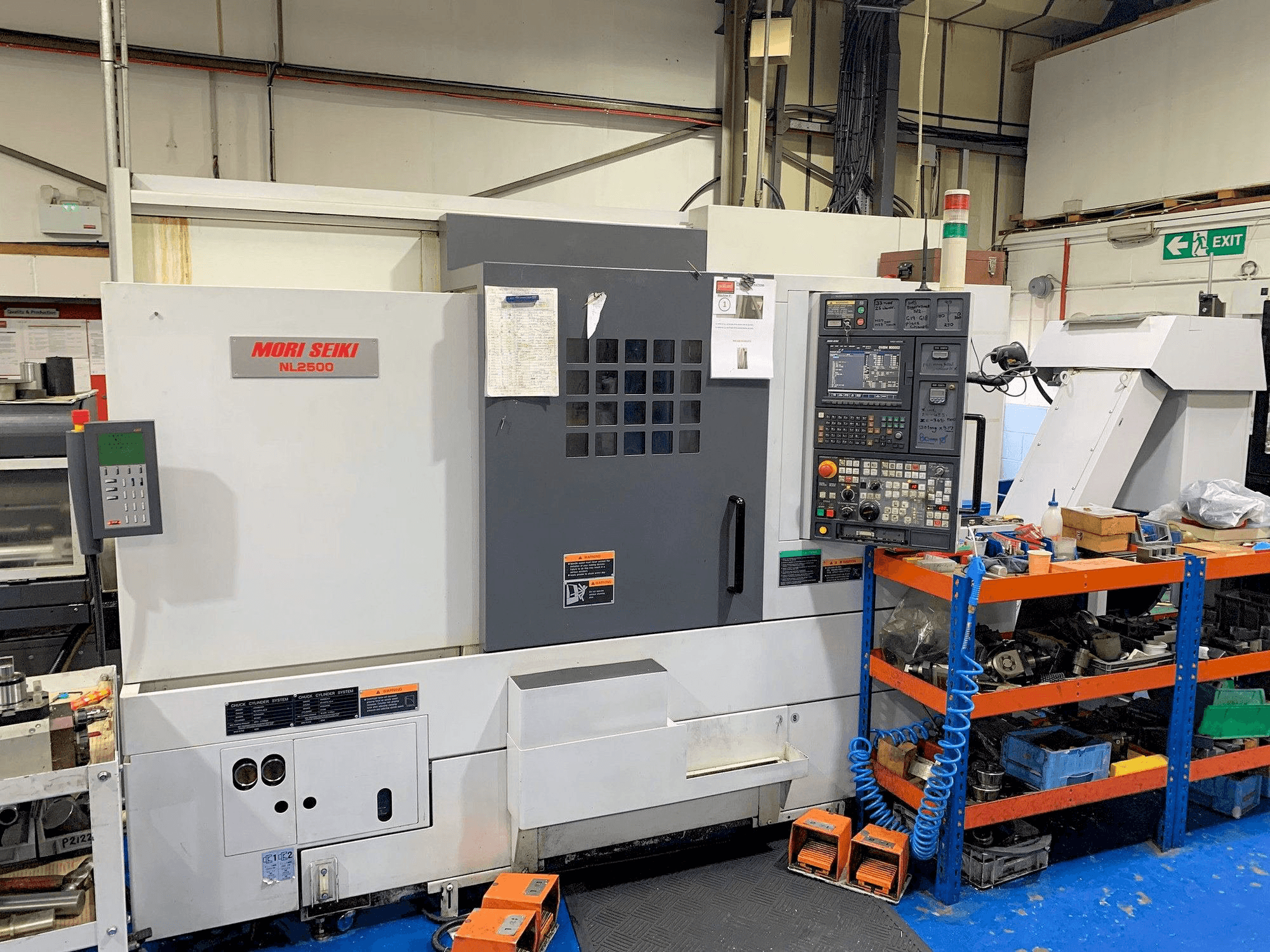

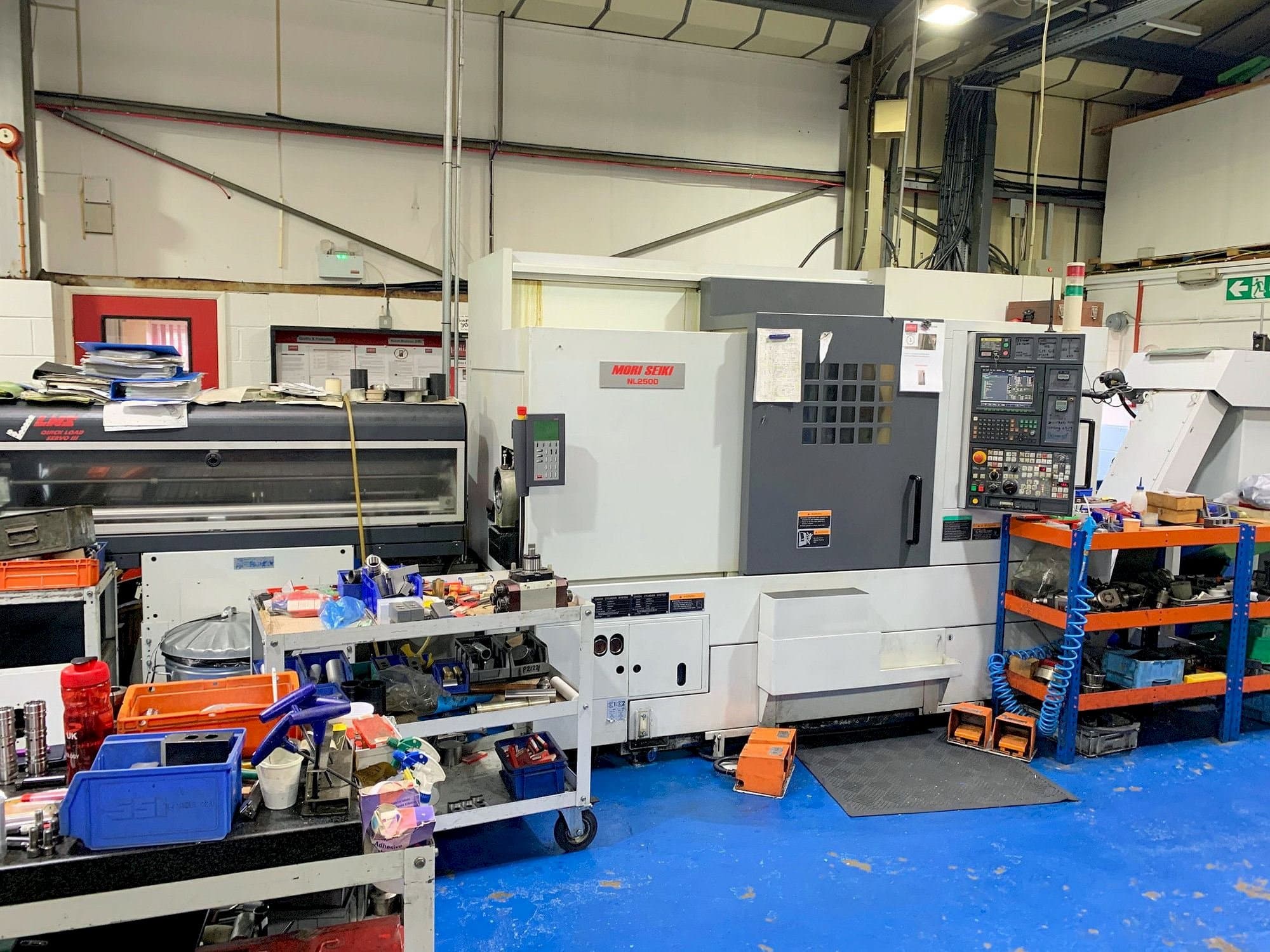

Front view of MORI SEIKI NL2500SY / 700 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MORI SEIKI NL2500SY / 700

Photo Gallery

MORI SEIKI - NL2500SY / 700GB-TUR-MOR-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MORI SEIKI NL2500SY / 700

Show in original language

This MORI SEIKI NL2500SY / 700 Lathe was manufactured in Japan in the year 2007. It has 8744 hours of cutting time. It is equipped with a MORI SEIKI MSX-850 III control unit. This 4 axis machine is capable of working with the main spindle speed up to 4000 rpm. It includes a Barfeed Magazine LNS QUICK LOAD. This machine is in very good conditions.

Overview

brand: MORI SEIKI
year: 2007
MODEL: NL2500SY / 700
production hours: 8744
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre

Technical Information - MORI SEIKI NL2500SY / 700

Dimensions

Machine Depth: 1950 mm
Machine Height: 2150 mm
Machine Weight: 6500 kg

Movement

Number of Axes: 4
X-axis Travel: 260 mm
Y-axis Travel: 50 mm
Z-axis Travel: 795 mm

Technical Specification

Number of Tools: 12
Spindle Power: 18.5 kW
Spindle Speed: 4000 RPM

Additional Information

Additional equipment

Barfeed Magazine LNS QUICK LOAD

Machine Benefits

Qualitative Machine Benefits

Machine in very good condition

Technical Machine Benefits

Swing over bed 780 mm, over carriage 630 mm
Maximum machining diameter 356 mm
Maximum machining length 705 mm
Bar capacity 80 mm
Sub-spindle 11 kw
C axis & milling function, y axis
Turret milling power 5. 5 kw speed 6000 rpm
0. 001 degree c axis (both spindles)
Chuck size 10'' & 6'' (sub-spindle)
Parts catcher, tool setter, coolant, tooling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
