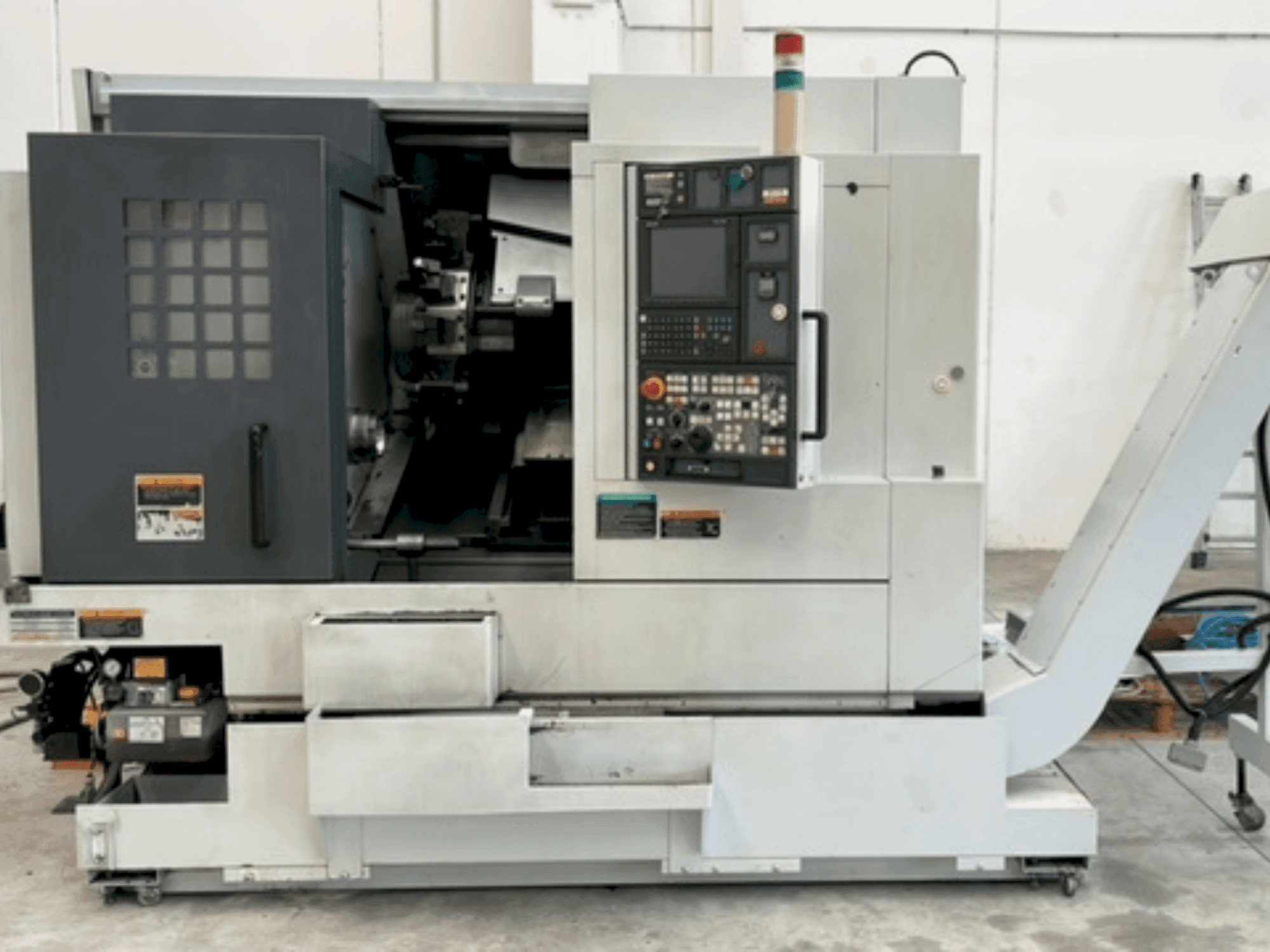

Front view of MORI SEIKI NL 2000Y/500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MORI SEIKI NL 2000Y/500

Photo Gallery

MORI SEIKI - NL 2000Y/500IT-TUR-MOR-2007-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MORI SEIKI NL 2000Y/500 lathe

Show in original language

This MORI SEIKI NL 2000Y/500 lathe was built in the year 2007. It is equipped with a MSX – 850III control unit and has 4 axis. It is equipped with an MSX–850III control unit. The machine has a spindle speed of 5000 rpm.

Overview

brand: MORI SEIKI
year: 2007
MODEL: NL 2000Y/500
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - MORI SEIKI NL 2000Y/500

General Data

Machine weight: 5700 kg

Control Unit

Model: MSX – 850III

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 18.5 kw

Movement

Y-AXIS Movement: +/- 50mm

Additional Information

Additional equipment

Short bar loader LNS Quick Load Servo III - Chip conveyor a carpet – tool setting – piece picking hand

Machine Benefits

Technical Machine Benefits

Max. Diam. Turning 366 mm
Max. Turning length 510 mm
Max. Diam. Turning from 65 mm bar
Spindle connection asa 6 "
Turret: 12 pos turret stations. All motorized
Dimensions of turning/boring tools; 25x25 / 50mm
Max. Rotation speed of driven tools 6000 rpm
Motorized tools power 5,5 kw

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
