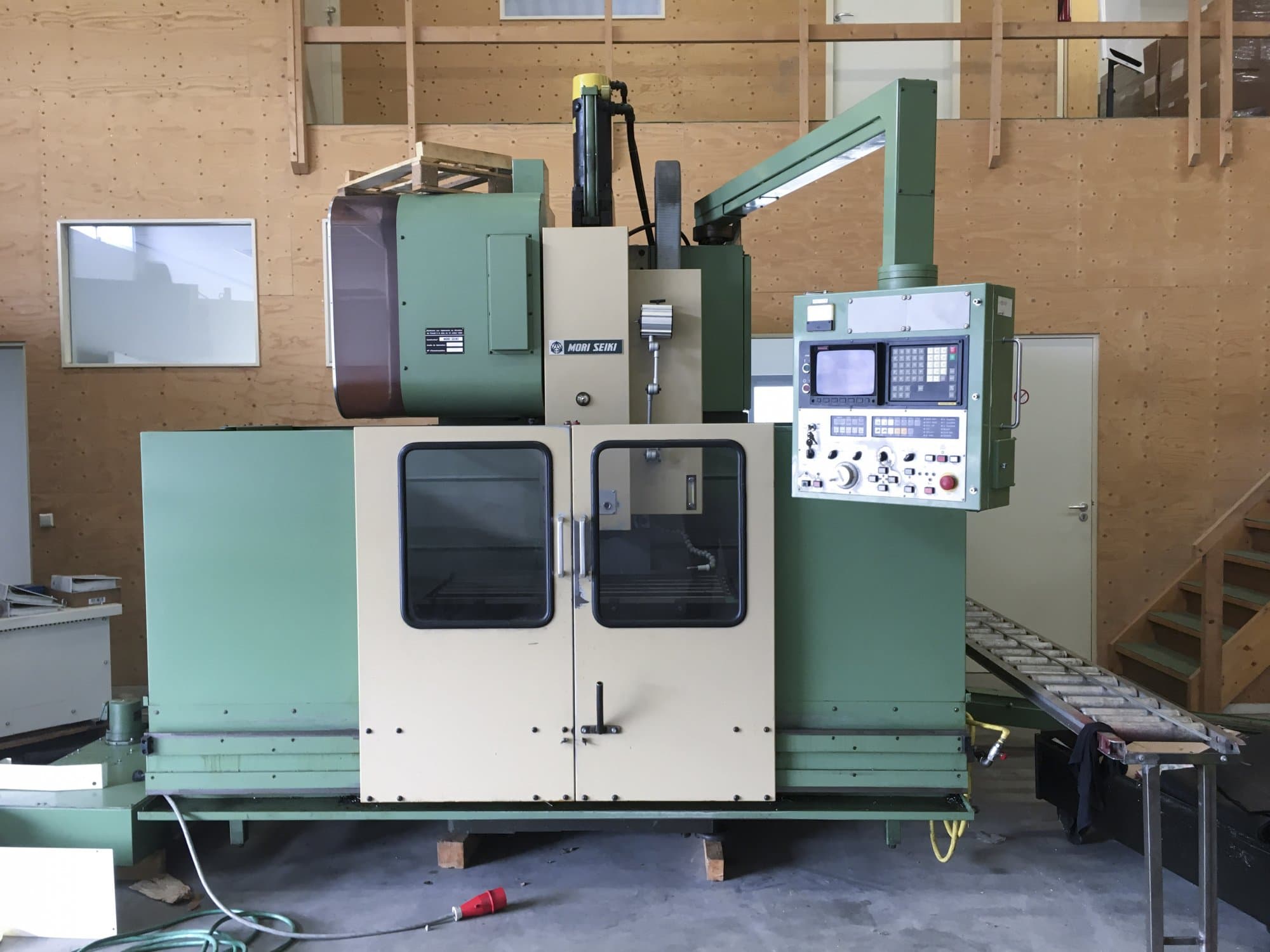

Front view of MORI SEIKI MV-45/40 Machine
Front view of MORI SEIKI MV-45/40 Machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

MORI SEIKI - MV-45/40NL-MIL-MOR-1986-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This MORI SEIKI MV-45/40 Vertical Machining Center, produced in Japan in 1986, has a production history of approximately 28000 working hours. Equipped with a FANUC 11M Control unit, this model stands out due to its 30x tool changer and its extra large bed with 4 slideways. The ceramic spindle is a standard equipment for this machine and was replaced in 2014. During this past, this MORI SEIKI has mainly worked with aluminum and has been inspected regularly.

Overview

  • brand: MORI SEIKI
  • year: 1986
  • MODEL: MV-45/40
  • production hours: 28000
  • application type: Milling
  • Location: Netherlands
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - MORI SEIKI MV-45/40

General Data

  • Measurements width: 3800 mm
  • Measurements depth: 3500 mm
  • Measurements height: 3150 mm
  • Machine weight: 8000 kg

Control Unit

  • Model: 11M
  • Brand: FANUC

Main drive

  • Number of spindles: 1
  • Spindle speed range: 6000 1/min

Movement

  • X-AXIS Movement: 800 mm
  • Y-AXIS Movement: 460 mm
  • Z-AXIS Movement: 510 mm

Workpiece

  • Workpiece drm: 160 mm
  • Workpiece weight: 1000 kg

Table

  • Outer length: 1200 mm
  • Outer width: 460 mm

Tools

  • Max weight: 20 kg
  • Max tool diameter: 95 mm
  • Max tool length: 300 mm

Media

  • Main electronic connection: 380 V
  • Power consumption: 22 kVA
  • Chip conveyor: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
