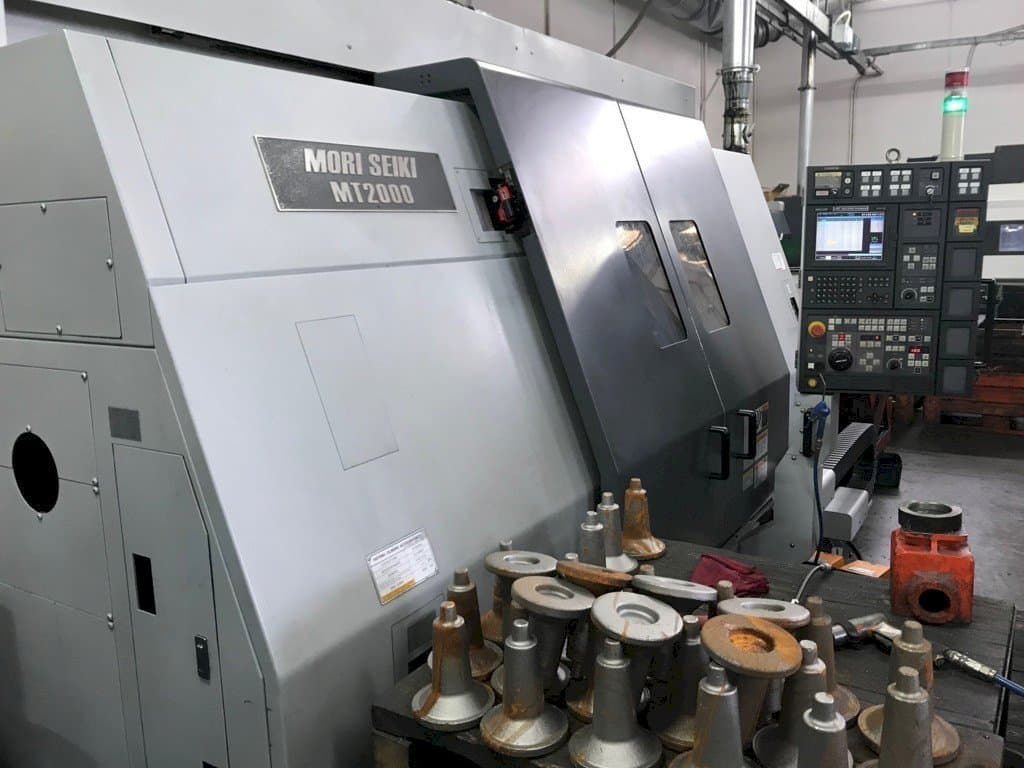

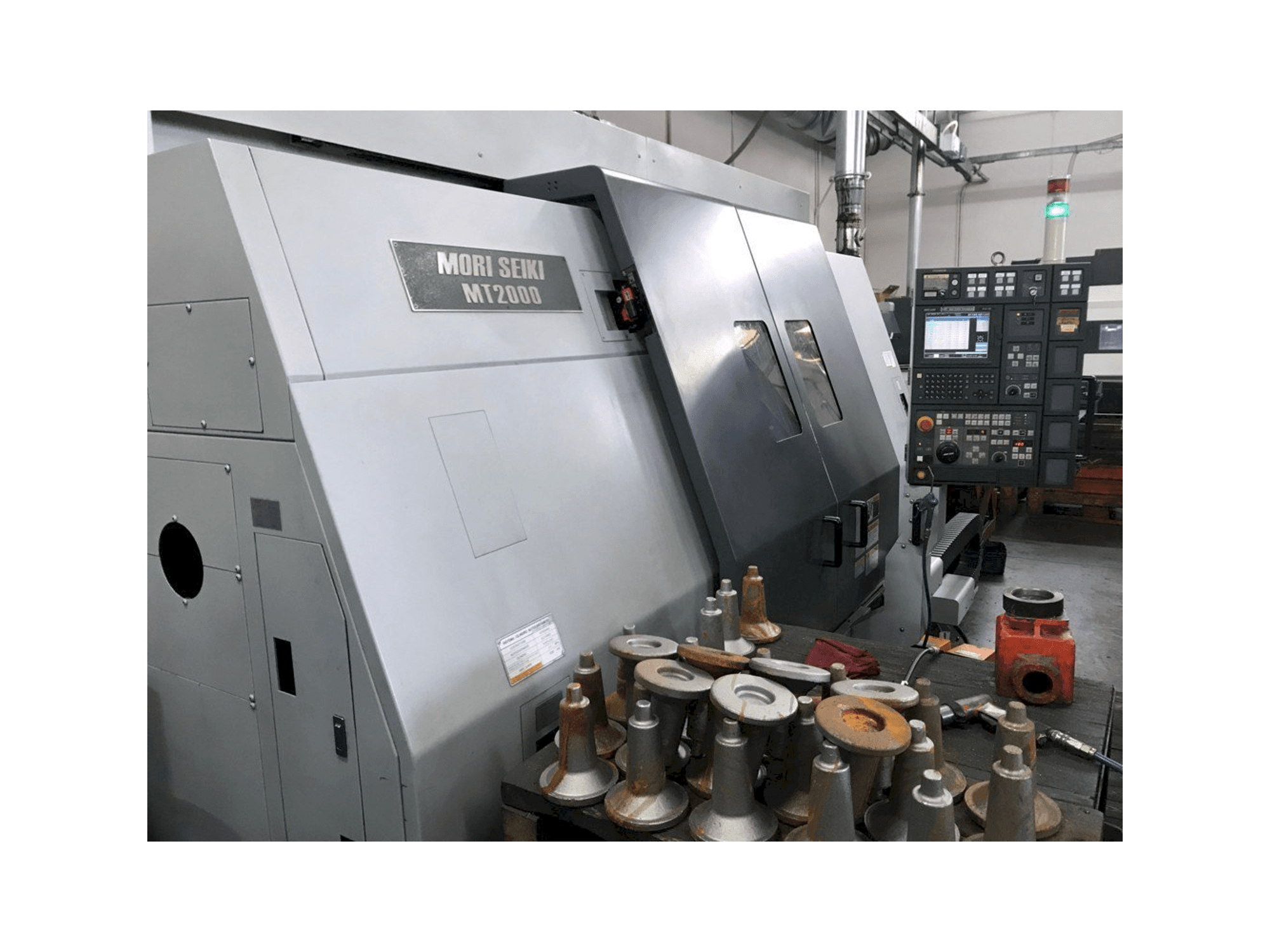

Front view of MORI SEIKI MT 2002 SZ machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MORI SEIKI MT 2002 SZ

Photo Gallery

MORI SEIKI - MT 2002 SZIT-TUR-MOR-2002-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MORI SEIKI MT 2002 SZ Lathe

Show in original language

This MORI SEIKI MT 2002 SZ Lathe was manufactured in 2002 in Japan. Equipped with a MORI SEIKI MSG 501 Control unit, this double spindled machine can work with a speed of 4500 and 6000 rpm respectively.

Overview

brand: MORI SEIKI
year: 2002
MODEL: MT 2002 SZ
application type: Turning
Location: Italy
machine type: Turn-Mill Centre

Technical Information - MORI SEIKI MT 2002 SZ

General Data

Measurements width: 2650 mm
Measurements depth: 3830 mm
Measurements height: 2881 mm
Machine weight: 12000 kg

Control Unit

Model: MSG 501

Main drive

Number of spindles: 2
Spindle speed range: 4500/6000 1/MIN
Spindle motor power: 22 kW

Movement

X-AXIS Movement: 565 mm
Y-AXIS Movement: +/- 80 mm
Z-AXIS Movement: 1077 mm
Backgauge-X Movement: 155 mm
Backgauge-X1 Movement: 933 mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits

Maximum working diameter: 550 mm
Maximum working length: 1020 mm
Motorized lower turret
End of cycle lamp
Auto-off
Tool life management

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
