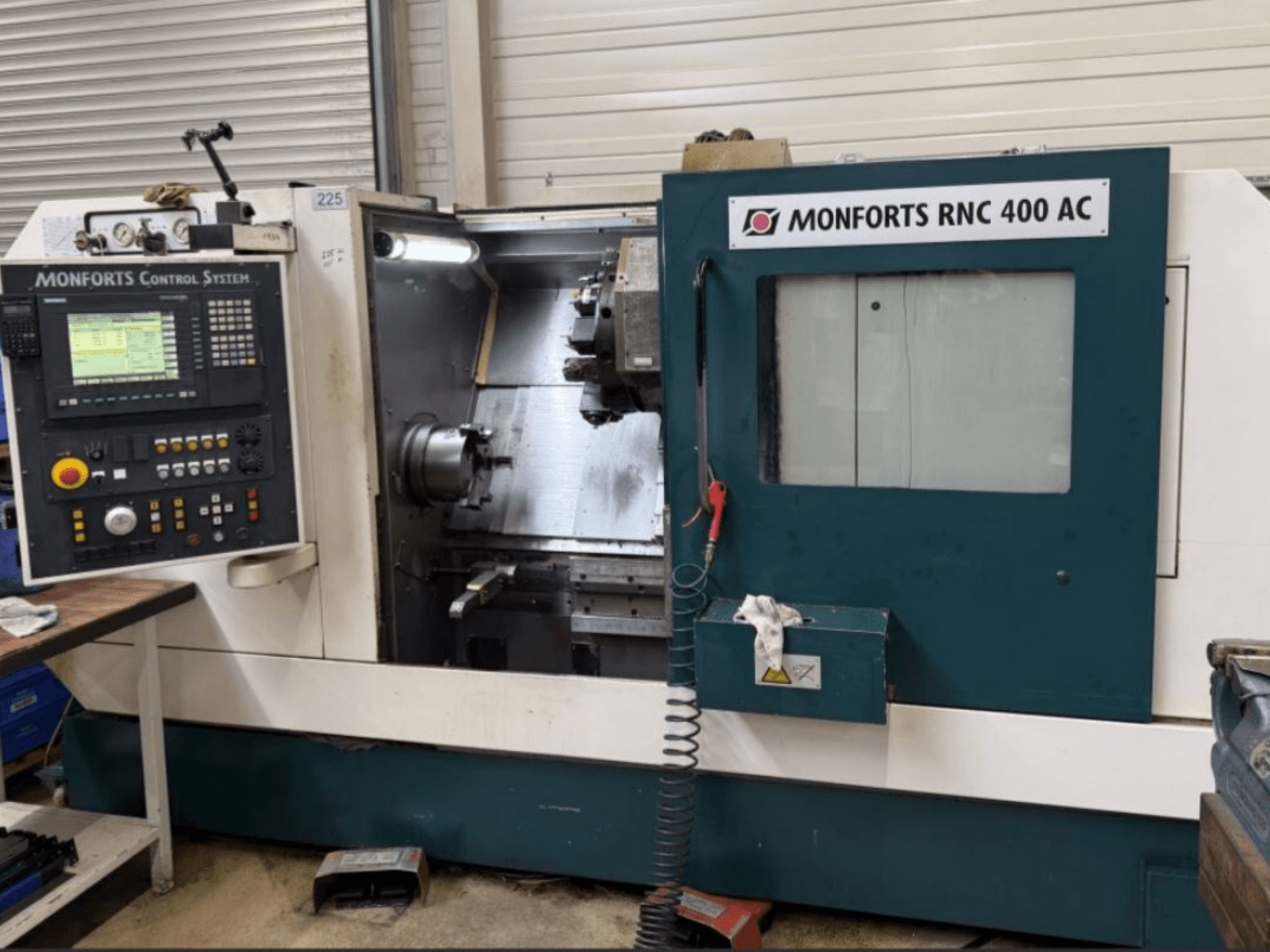

Monforts - RNC 400 ACDE-TUR-MON-2000-00002

• CNC memory: 256 kB (buffered RAM), expandable to 1.5 MB

• Programming language: DIN 66 025 with high-level language extensions

• Swing over bed: 410 mm

• Swing over cross slide: 280 mm

• Turning length: 600 mm

• Spindle bearing diameter: 130 mm

• Spindle nose: DIN 55026 A6

• Material clearance (bar capacity): 65 mm

• Max. torque: 500 Nm

• Axes/feeds: AC servo drives with electronic safety monitoring; rapid traverse X/Z 24/24 m/min; feed force X/Z 7.2/10.7 kN

• Turret: 12-station disc turret (DIN 69880/VDI 3425/2), 40 mm shaft diameter

• Driven tools: 12 stations; max power 13.6 kW (25% ED); max torque 28.9 Nm; max speed 4500 rpm

• C-axis: 0–25 rpm; 300 Nm holding torque

• Tailstock: Separate guide rail; manual clamping; 900 mm travel; 90 mm quill stroke; 12,000 N force (adjustable); MT3

• Hydraulic system: Central pressure oil supply for hydrostatics and clamping

• Cooling: 310 L tank; reinforced coolant pump (3 bar, 40 L/min)

• Bed: 60° slant bed; steel welded construction on reinforced concrete base with 3-point support

• Power requirements: 3x400 V, 50 Hz; total connected load 20.5 kW (41 kVA)

Additional equipment

• Hydraulic hollow clamping device

• Parts catcher

• A6 drawtube for collet chuck

• 200 mm suction nozzle

• 1 GB storage expansion

• Network card

• Driven tools with tapping without compensation chuck
