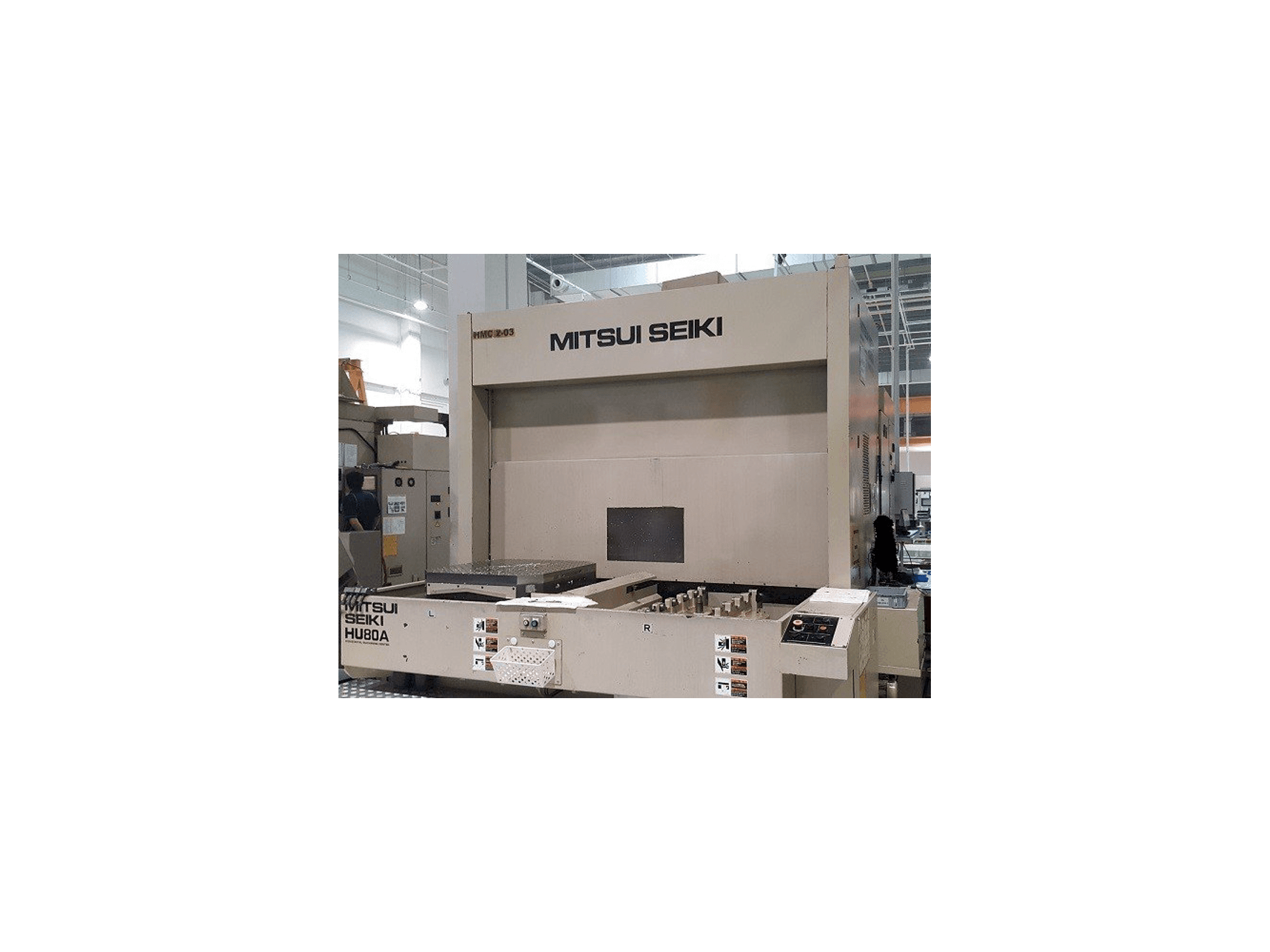

Front view of Mitsui Seiki HU80A machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mitsui Seiki HU80A

Mitsui Seiki - HU80ASG-MIL-MIT-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mitsui Seiki HU80A Milling

Show in original language

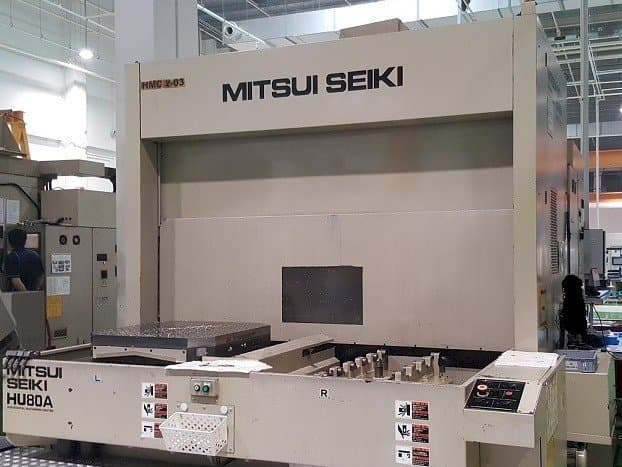

This Mitsui Seiki HU80A Horizontal Machining Center Machine was built in the year 2007. It is equipped with a Heidenhain iTNC 530 HSCI – 3D control unit. This machine can perform with a spindle speed range up to 28000 rpm. The machine counts with a Direct absolute measuring system with air purage, a Tropical Climate Package, a Laminated safety glass and a Coolant.

Overview

brand: Mitsui Seiki
year: 2007
MODEL: HU80A
application type: Milling
Location: Singapore
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - Mitsui Seiki HU80A

Main drive

Spindle speed range: 20-6000 1/MIN
Spindle motor power: AC 18.5KW/15KW
Number of axis: 4

Table

Outer length: 800 mm
Outer width: 800 mm
Table load: 1600 kgs

Tools

Slots in storage: 60

Additional equipment

- X,Y &Z axis linear feedback scale
- Coolant system: 600 liters
- Built in coil type + floor scraper type chip conveyor: Oil skimmer
- Mist cooling system
- 3 Mpa through spindle coolant
- Mist collector
- 640 memory
- Custom Macro B

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table longitudinal stroke (x): 1200 mm
- - Spindle head vertical stroke (y): 950 mm
- - Table cross stroke (z): 900 mm
- - Distance from table surface to spindle axis: 150-1100 mm
- - Distance from spindle nose to table centre: 150-1050 mm
- - B axis table index: 0. 001 deg. (36,000 position)
- - B axis: 0. 001 deg. (36,000 position)
- - Surface on pallet: m16 tapped hole, 24 places
- - Spindle taper: iso 7/24 (50t) bt50
- - Spindle diameter: 100 mm
Qualitative Machine Benefits:
- - Spindle torque: max 600nm / 30 min rating
- - Rapid traverse: 24000 mm/min
- - Cutting feed: 0. 1 – 10,000 mm/min
- - Number of pallet: 2 (800 x 800 mm)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
