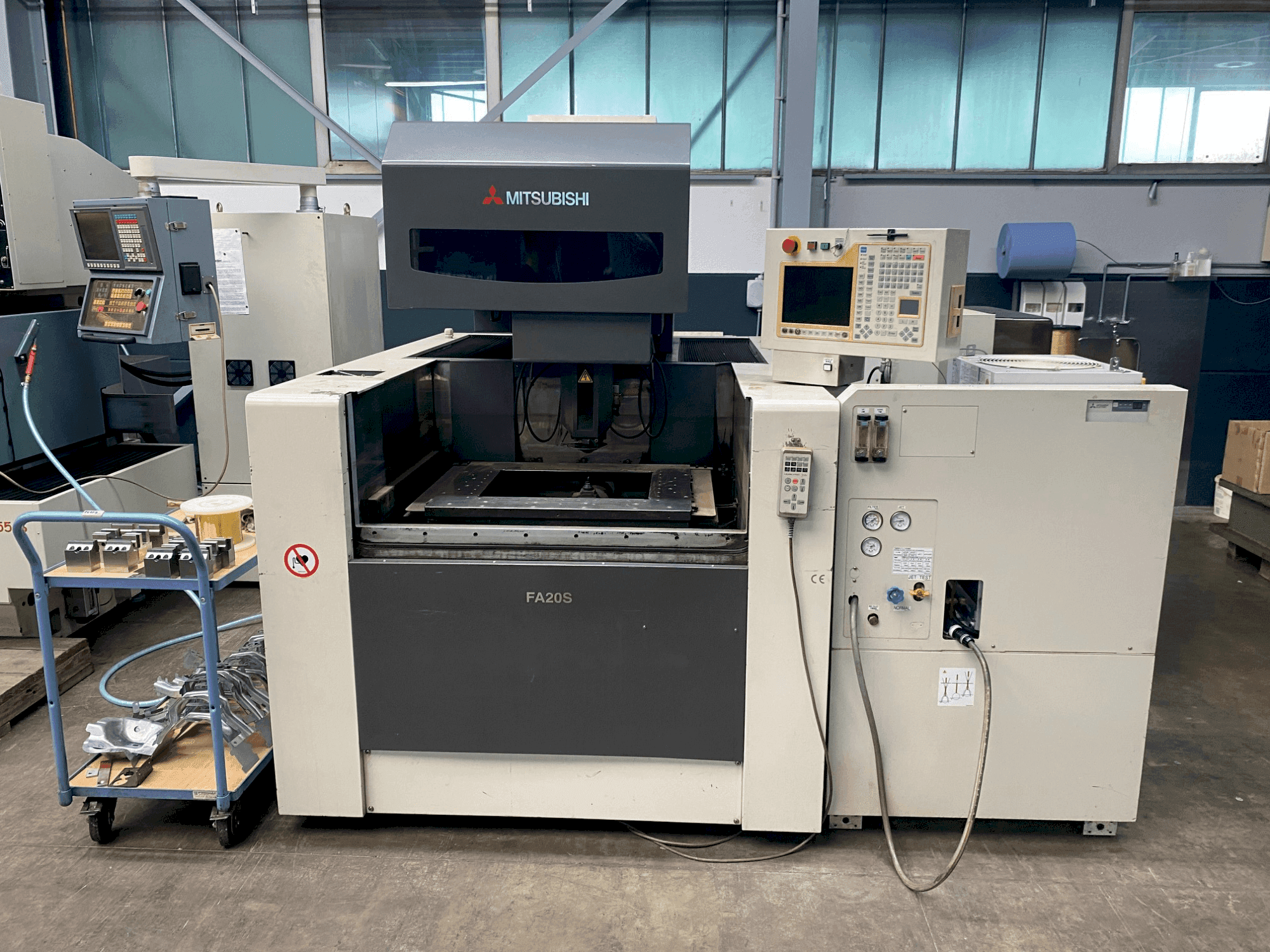

Front view of Mitsubishi FA 20 SM  machine

Mitsubishi - FA 20 SMDE-EDM-MIT-2006-00001

Rs. 3,298,100
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis Mitsubishi FA 20 SM wire EDM machine was manufactured in 2006. It features a travel path of 500 x 350 x 300 mm, a conic angle capacity for a 260 mm workpiece height, and can handle workpieces up to 1500 kg. It supports wire diameters from 0.1 to 0.36 mm and includes automatic water beam threading and a wire chopper. If you are looking to get high-quality EDM capabilities, consider the Mitsubishi FA 20 SM machine we have for sale. Contact us for more information.

Overview

  • brand: Mitsubishi
  • year: 2006
  • MODEL: FA 20 SM
  • application type: EDM
  • Location: Germany
  • machine type: Wire EDM Machine
  • availability: Immediately

Technical Information - Mitsubishi FA 20 SM

General Data

  • Measurements width: 2710 MM
  • Measurements depth: 2420 MM
  • Measurements height: 2150 MM
  • Machine weight: 3500 KG

Main drive

  • Number of axis: 5

Movement

  • X-AXIS Movement: 500 mm
  • Y-AXIS Movement: 350 mm
  • Z-AXIS Movement: 300 mm
  • V-Axis Movement: +/- 75 mm
  • U-Axis Movement: +/- 75 mm

Workpiece

  • Workpiece x: 1050 mm
  • Workpiece y: 800 mm
  • Workpiece z: 295 mm
  • Workpiece weight: 1500 kg

Table

  • Outer length: 780 mm
  • Outer width: 630 mm

    Additional equipment

    • - Automatic Water Beam Threading
    • - Wire Chopper

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Possible wire diameters: 0. 1 - 0. 36 mm
        • - Wire spool reception: 10 kg
        • - Max. Advance (xy): 1300 mm/min
        • - Tank capacity: 740 liters
        • - Filler fineness: 1-2 µm
        • - Filler elements: 2
        • - Temperature control: dielectric cooler
        • - Weight unfilled: 350 kg

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
