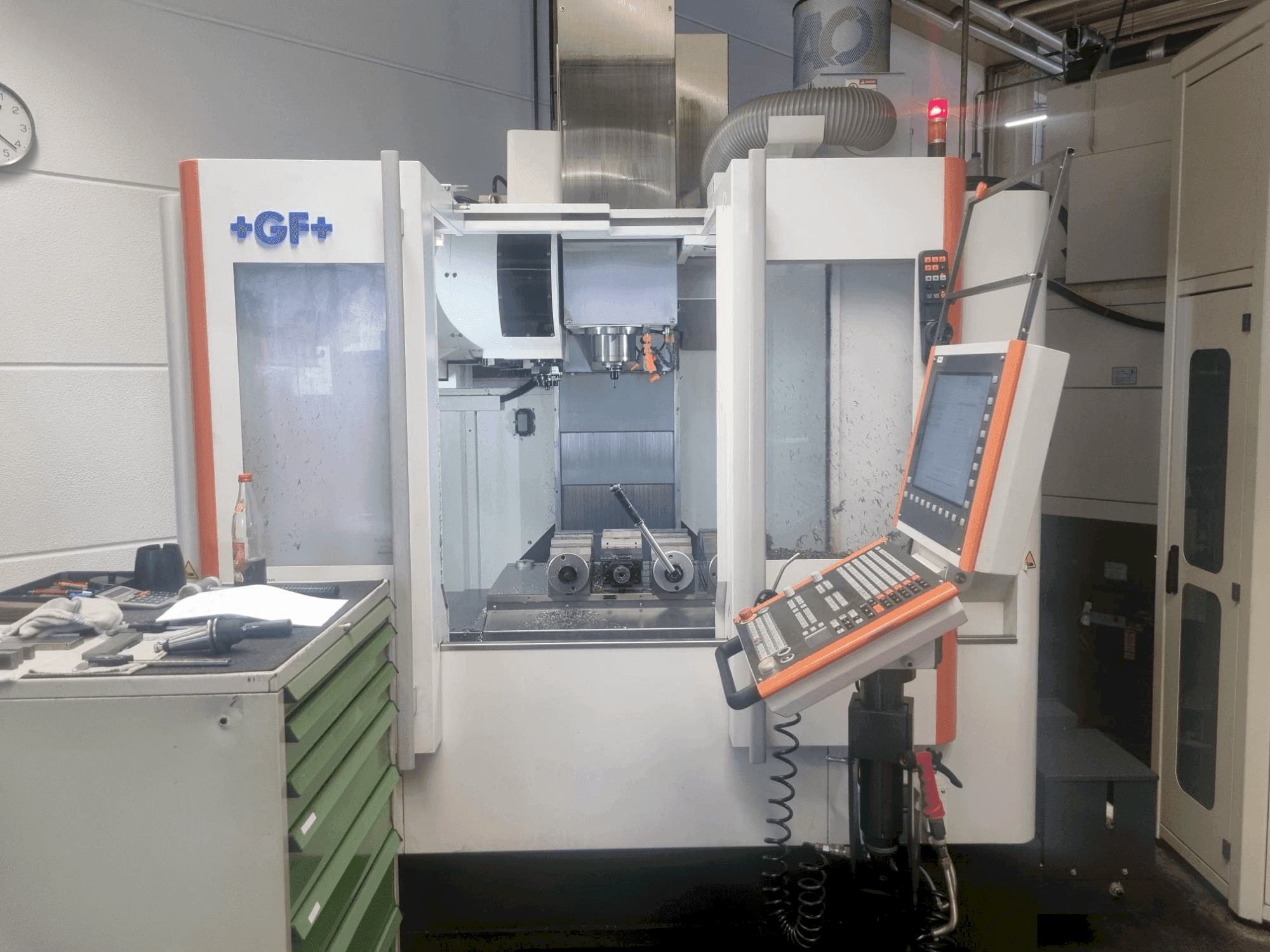

This 3-axis MIKRON VCE 800 Pro vertical machining centre was manufactured in 2019. It features a Heidenhain TNC 620 control, a 10,000 rpm spindle, and a tool magazine with 40 slots for ISO 40 tools. Additional highlights include a spindle cooling system, chip conveyor, and IKZ at 20 bar. A great opportunity to buy this MIKRON VCE 800 Pro vertical machining centre. For more information about this vertical machining centre, please reach out to us.
Overview
- brand: MIKRON
- year: 2019
- MODEL: VCE 800 Pro
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - MIKRON VCE 800 Pro
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 620
Movement
- Number of Axes: 3
- X-axis Travel: 800 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 540 mm
Technical Specification
- Number of Tools: 40
- Spindle Speed: 10000 RPM
- Taper Size: ISO 40
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- Tool magazine: 40x ISO 40 with panel
- Conversion kit: ISO 40 for DIN pull studs
- Linear scales: VCE800 Pro
- Software option: 17 touch probe TNC620
- Spindle cooling system: Air/water
- 3D probe: m&h
- Tool length measurement: m&h
- Bed flushing
- Air through spindle centre
- Spray gun
Machine Benefits
Technical Machine Benefits
- Comprehensive tool magazine with 40 positions
- Advanced cooling and filtration systems
- Equipped with linear scales for precision
- Integrated 3d probe and tool length measurement
- Without any clamping devices and tools
- Without suction
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
