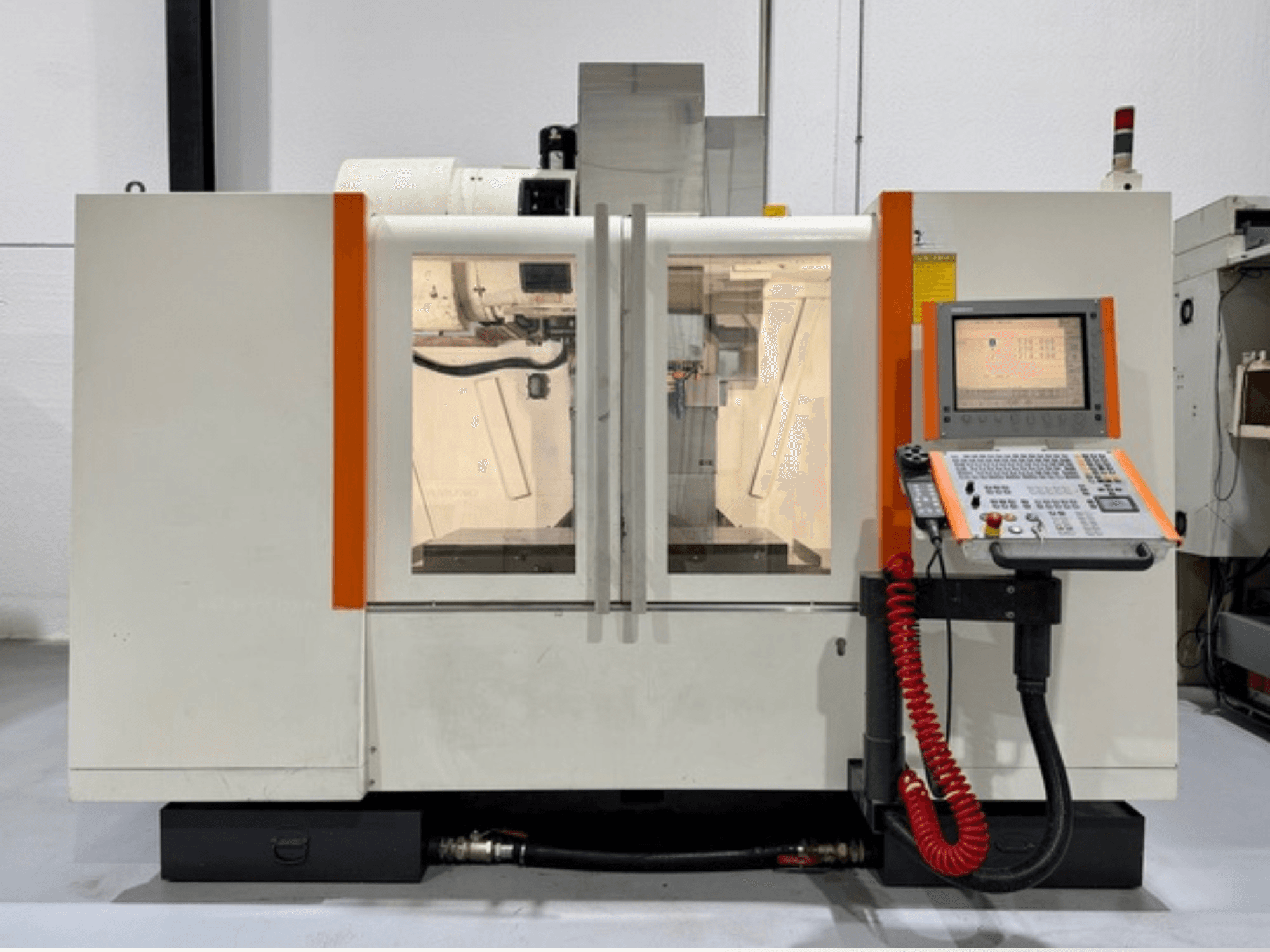

This 3-axis MIKRON VCE 1200 PRO was manufactured in 2011, featuring a robust vertical machining centre design. It boasts a table size of 1,220 x 620 mm, capable of handling a maximum weight of 1,700 Kg. Equipped with a spindle speed of 10,000 rpm and a motor power of 18.5 Kw, it ensures efficient machining. Tool capacity stands at 40 positions with a max tool diameter of 75 mm. Contact us for more information about this machine.
Overview
- brand: MIKRON
- year: 2011
- MODEL: VCE 1200 PRO
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - MIKRON VCE 1200 PRO
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Height: 2790 mm
- Machine Length: 3000 mm
- Machine Weight: 8000 kg
- Table Load: 1700 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1200 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 670 mm
Technical Specification
- Spindle Power: 18.5 kW
- Spindle Speed: 10000 RPM
- Taper Size: BT 40
Additional Information
X/Y/Z rapid traverse: 30 m/min
Tool stations: 40 positions
Max. tool diameter: 75 mm / 127 mm
Max. tool length: 300 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
