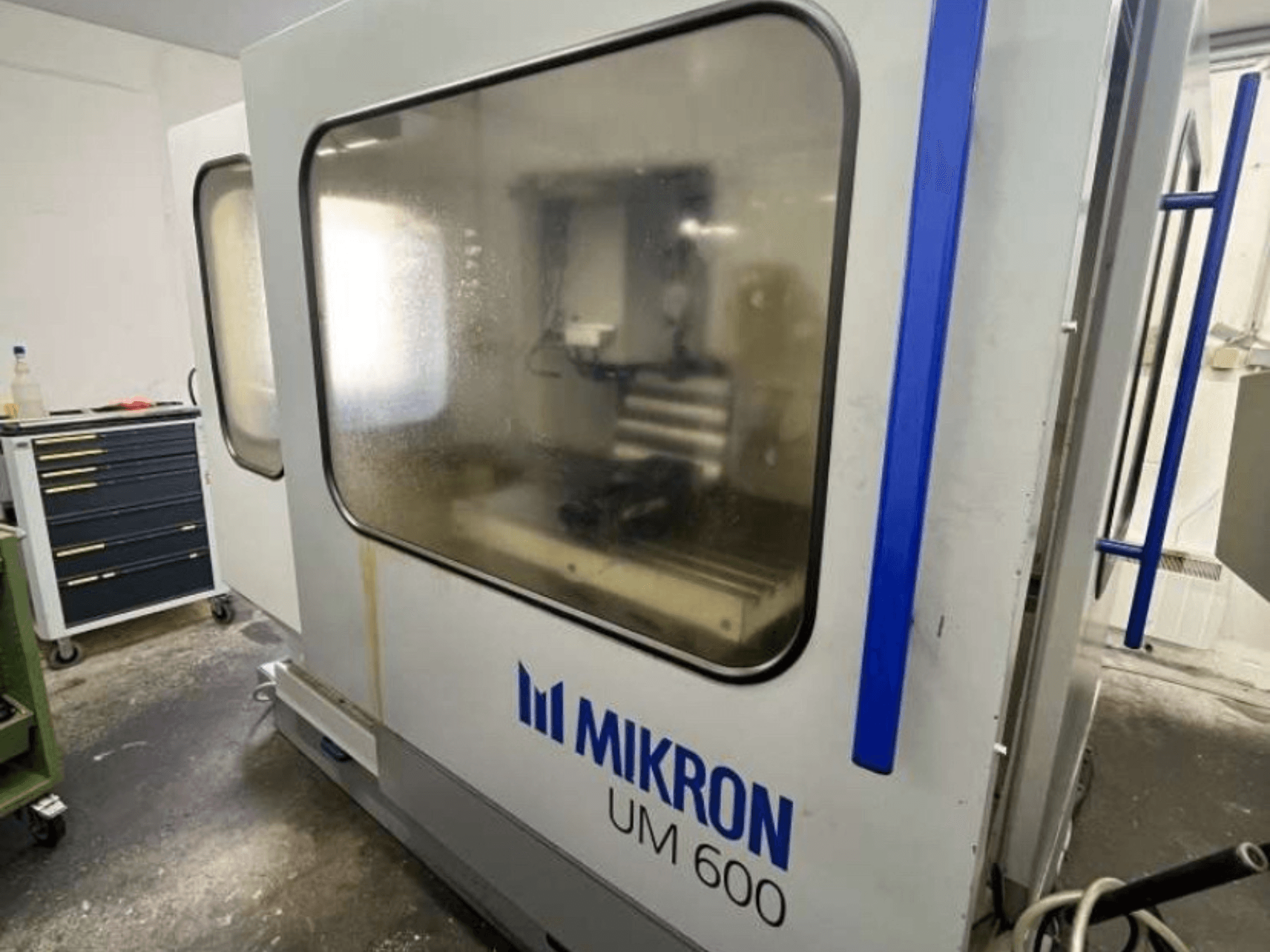

MIKRON - UM600 TNC 410/426AT-MIL-MIK-1998-00001

Machining spindles (vertical and horizontal)

• Drive power (44% duty cycle): 15 kW

• Drive power (100% duty cycle): 6 kW

• Motor torque: 50 Nm

• Max. torque at spindle (44% duty cycle): 800 Nm

• Number of gear stages: 4

• Max. tool diameter: 130 mm

• Included options: in-machine measurement and fast spindle

Feed drives (AC)

• Programmable feed rate X/Y: 0 – 15,000 mm/min

• Programmable feed rate Z: 0 – 12,000 mm/min

• Rapid traverse X/Y: 15,000 mm/min

• Rapid traverse Z: 12,000 mm/min

Coolant system

• Reservoir capacity: 150 l

• Flow rate: approx. 20 l/min

Clamping table

• Table size: 520 × 900 mm

• Number of T-slots: 4

• T-slot width: 14 H7

Tool changer TCD 44

• Tool positions: 22

• Tool diameter: 80 / 130 mm

• Max. tool length: 350 mm

• Max. tool weight of Tool changer TCD 44: 6 kg

• Max. workpiece weight in drum magazine: 200 kg

• Chip-to-chip time: 20–25 s

• Tool change time: 12–16 s

Electrical connection

• Total installed rated power: 15.8 kW

• Useful/connected power: 12.3 kW

• Operating voltage/frequency: 3 × 400 V / 50 Hz
