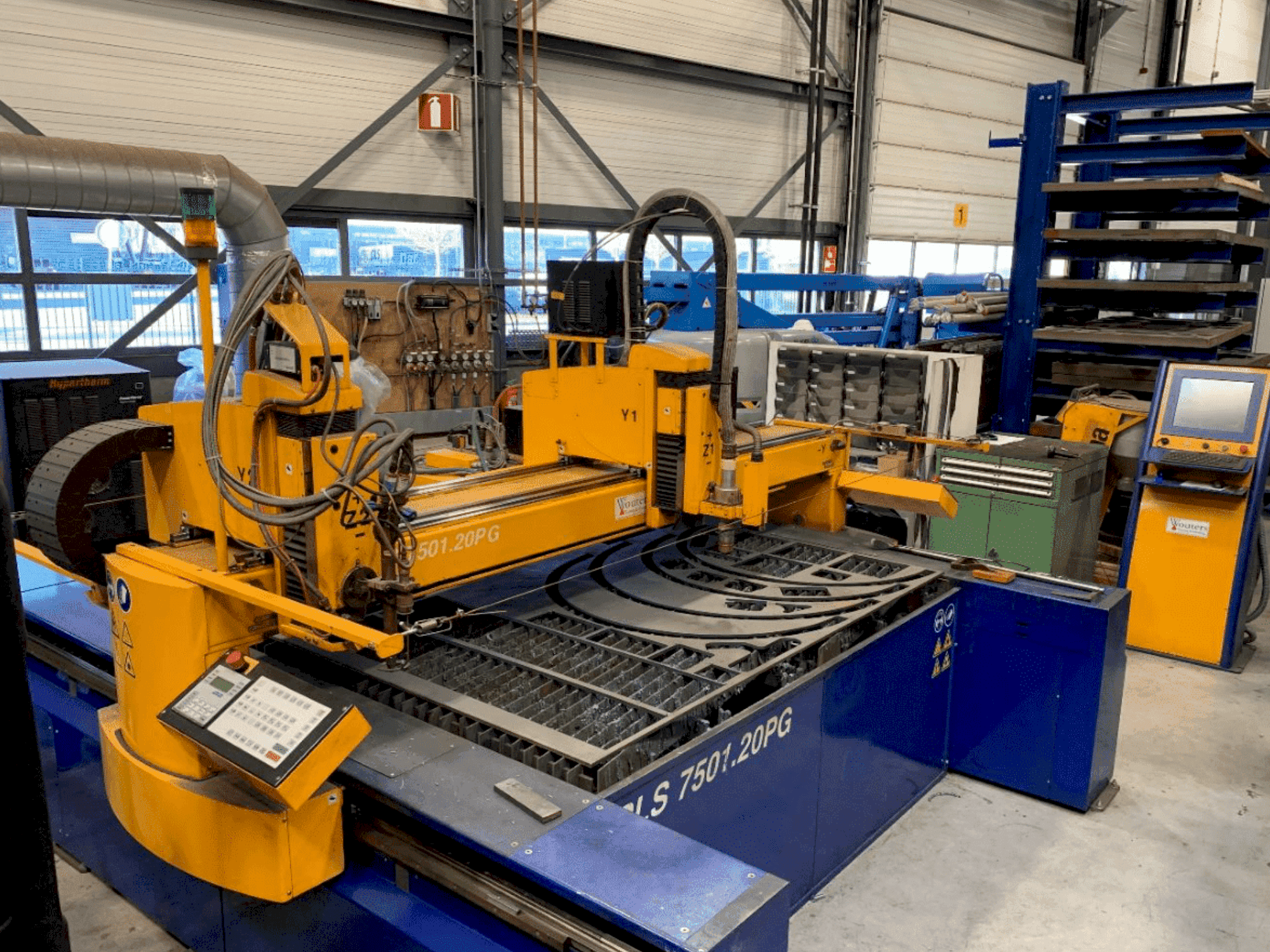

This MicroStep PLS7501.20PG was manufactured in 2011. A robust plasma cutting machine, it features a maximum plasma cutting thickness of 64mm and autogenous cutting up to 100mm. It boasts a large working surface of 1500 x 2000mm, expandable to 7500x2000mm, and can handle a maximum load of 800 kg/m². Ideal for precision work with its double-sided guidance and processor-controlled servo motors. For more information about this plasma cutting machine, please reach out to us.

Overview

brand: MicroStep
year: 2011
MODEL: PLS7501.20PG
application type: Cutting
Location: Netherlands
machine type: Plasma Cutting Machine

Technical Information - MicroStep PLS7501.20PG

Dimensions

Machine Depth: 1500 mm
Table Load: 800 kg

Additional Information

Machine Benefits

Qualitative Machine Benefits

High accuracy and repeatability standards

Technical Machine Benefits

Cutting thickness autogenous: 100mm
Maximum height under portal: 150mm
Positioning speed: up to 40,000 mm/min
Energy connections: 3x 400v + n + pe, 50hz, 16a, compressed air 6 bar
Guidance and drive: double-sided play-free guidance by means of precision gear racks with bevel gearing on both shafts
Drive motors: processor-controlled servo motors height control: motorized, via arc voltage for plasma.
Measuring system: irc 2500 imp/tr
Includes various cutting types and advanced guidance systems

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
