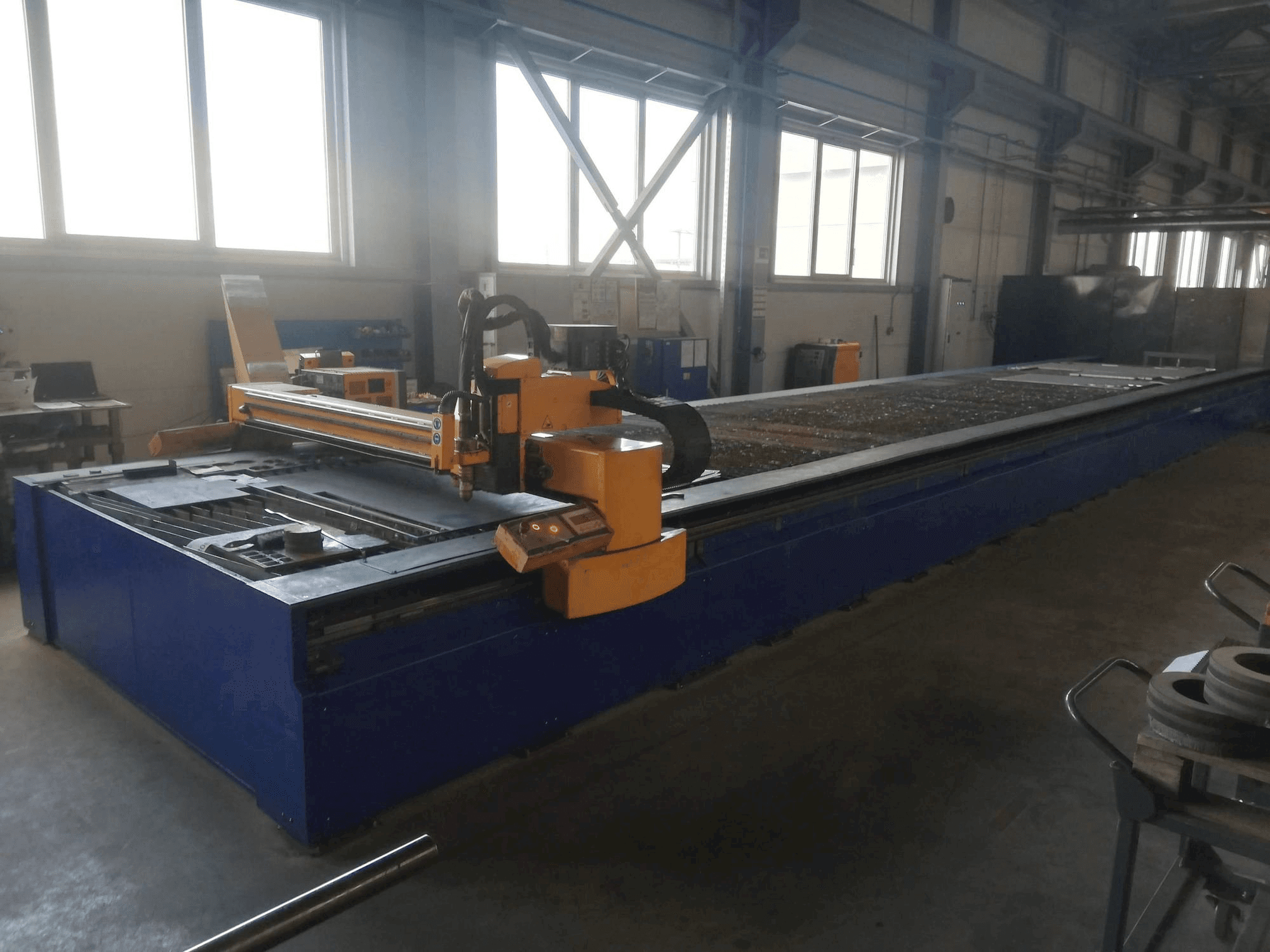

MicroStep - Pls 13501.20 PHR-PLA-MIC-2011-00001

Machine Benefits

Qualitative Machine Benefits

• The machine is regularly maintained by official service in croatia
• The machine was overhauled at the beginning of 2019
• At the beginning of the table we would place a 6x2m sheet and start the cutter
• During the cutting process, a new sheet is prepared in the second half and in this way we have reduced the preparation time.
• The portal is mounted on separate linear guides, so the portal is not in contact with the table (visible in the drawings), which achieves greater precision and cut quality.
• According to the croatian service, the table can be shortened to other dimensions if needed

Technical Machine Benefits

• Microstep spl cuting machine: 2000 x 13 500 mm
• Microstep iqm brnc 500 machine hmi
• Plasma source: kjellberg hifocus plus 161i
• Automatic gas console: kjellberg pgc
• Microstep iqm ekofan extraction unit
• 1 z axis
• Burner longitudinal movement: 13500 mm
• Burner cross movement: 2000 mm
• Burner vertical movement (plasma): 185 mm
• Burner vertical movement (gas-burner): 200 mm
