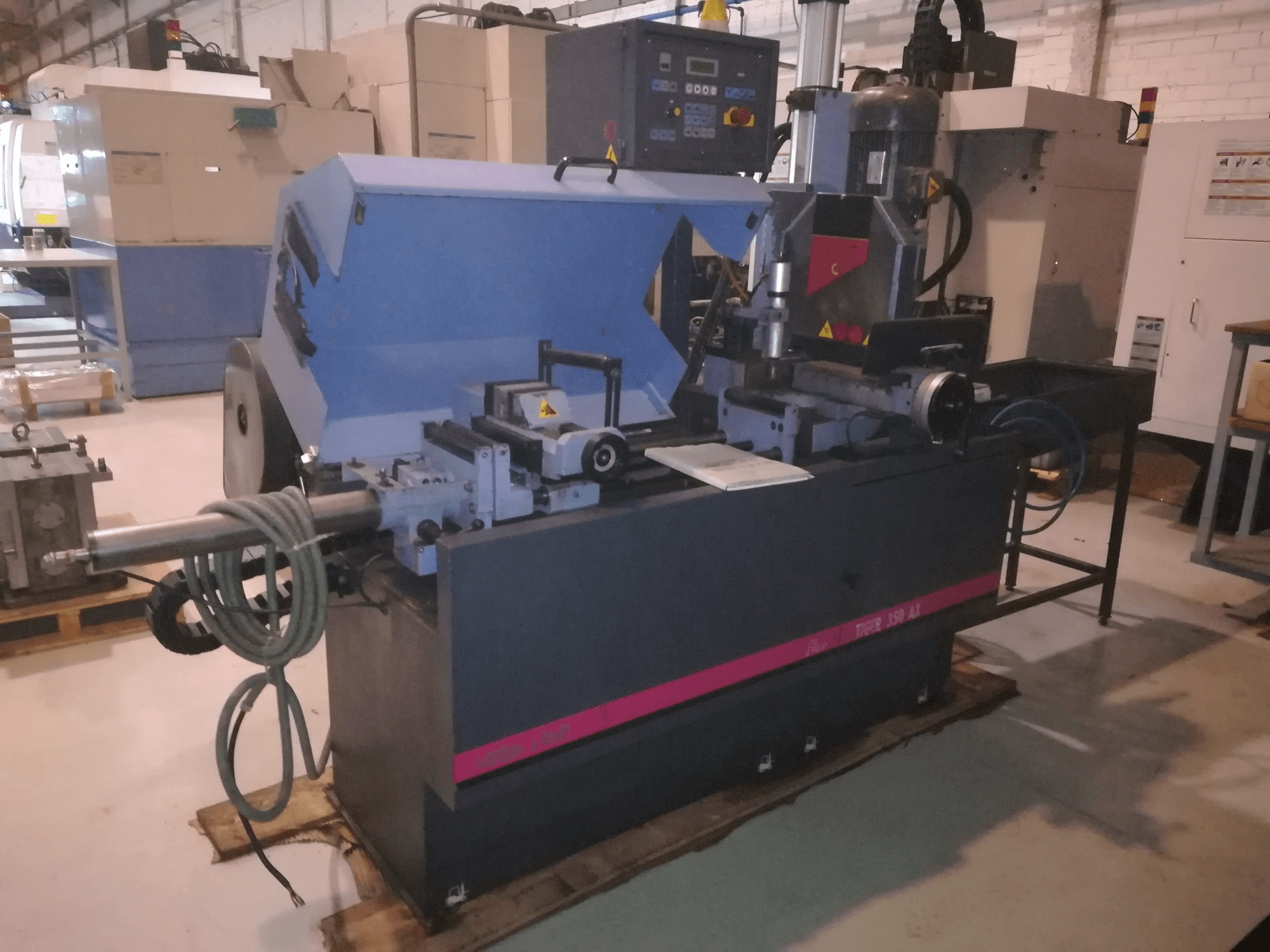

Front view of MEP TIGER 350 AX  machine

MEP - TIGER 350 AXES-SAW-MEP-1998-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This MEP TIGER 350 AX Sawing Machine was made in Italy in the year 1998. It is equipped with a control unit of the same brand. This machine has a max cutting diameter of 350 mm. This MEP incorporates cutting speeds of 15/30/45/90 rpm.

Overview

  • brand: MEP
  • year: 1998
  • MODEL: TIGER 350 AX
  • application type: Sawing
  • Location: Spain
  • machine type: Circular Metal Saw
  • availability: Sold

Technical Information - MEP TIGER 350 AX

General Data

  • Measurements width: 2210 mm
  • Measurements depth: 1040 mm
  • Measurements height: 2005 mm
  • Machine weight: 630 kg

Main drive

  • Spindle speed range: 15/30/45/90 1/MIN
  • Spindle motor power: 1,8/2,6 kW

Media

  • Main electronic connection: 230/380 V - 50 Hz

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Standard 4 speed machine
      • - Max. Cutting diameter: 350 mm
      • - Exercise pressure 6 bar
      • - Max. Opening of the cutting jaw: 190 mm
      • - Disc sheet dimensions: 350 x 32 x 2,5 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
