Mazak - VTC 800/30SRDK-MIL-MAZ-2018-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Mazak VTC 800/30SR For Sale | gindumac.com

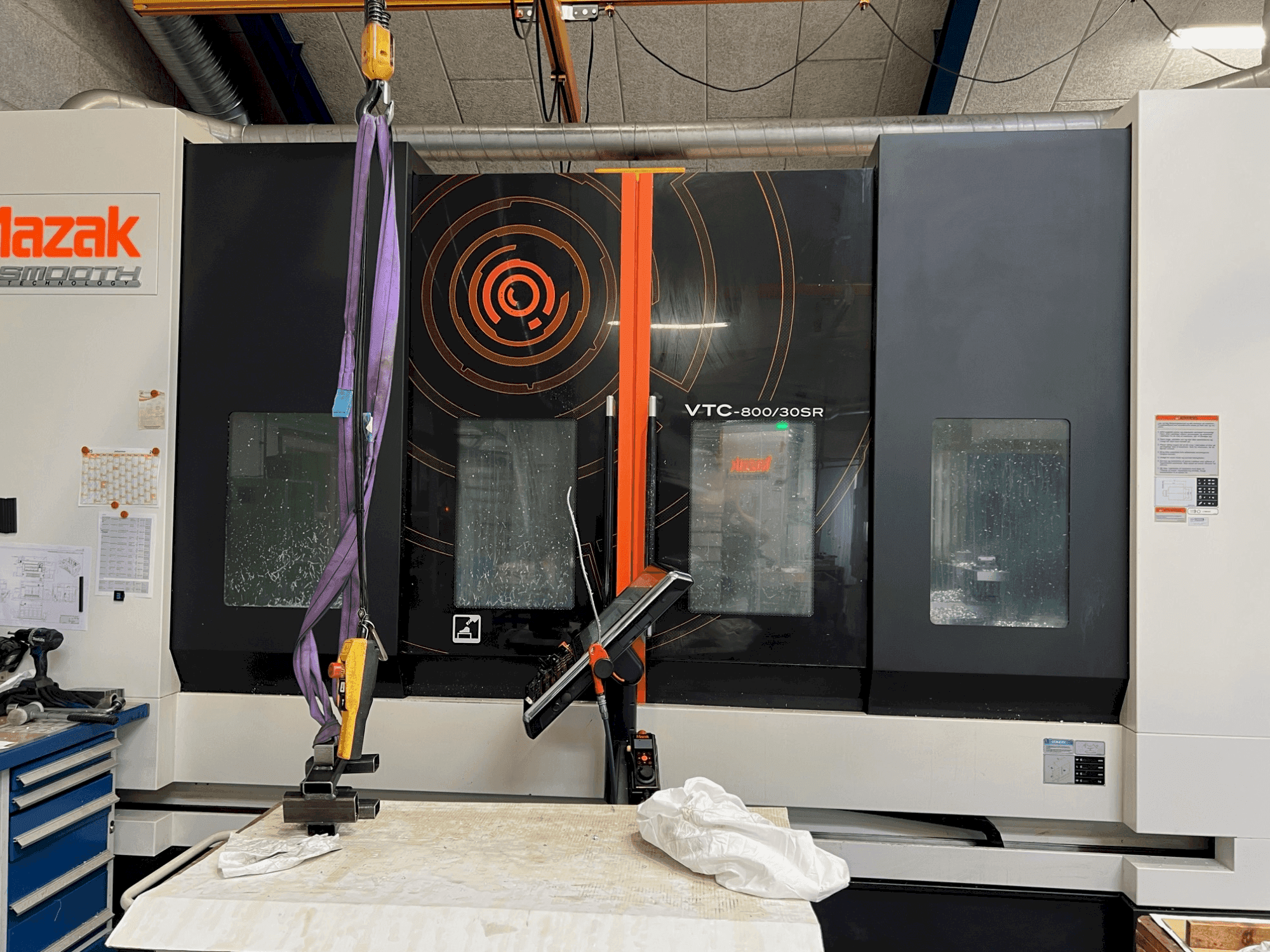

This 5-axis Mazak VTC 800/30SR was manufactured in 2018 and features a robust 48-tool magazine, high-pressure coolant system, and a NC rotary table with 360,000 positions. Ideal for complex 5-axis machining with its advanced synchronization and interpolation capabilities. If you are looking to get high-quality milling capabilities consider the Mazak VTC 800/30SR machine we have for sale. Contact us for more information about this machine.
Overview
- brand: Mazak
- year: 2018
- MODEL: VTC 800/30SR
- application type: Milling
- Location: Denmark
- machine type: Vertical Machining Centre
- control unit brand: MAZATROL
Technical Information - Mazak VTC 800/30SR
Control Unit
- Control Brand: MAZATROL
Additional Information
Additional equipment
- Workpiece air blast / Air through spindle in running / High pressure coolant system (Europe) / Preparation for chip conveyor (right) Chip conveyor right hand Mayfran / Mazak monitoring system B (RMP60) / Manual pulse generator 1 (detachable) / Ethernet operation function / Signal tower (3 colors lights)
Machine Benefits
Qualitative Machine Benefits
- Factory and local options including: additional work light / coolant gun / engraving/macro (meg 8k) / grundfos pump 30 bar
Technical Machine Benefits
- 48 tool magazine/ renishaw ts27r on lhs (mma+akb+8f) / auto pecking cycle with load detection / bysynchronized tapping / 5-axis machining package for smooth-x
- Nc rotary table (360000 positions) ds50c-r1-z
- 5th axis rotary operation / 5-axis / b1500 slope constant / bicyclical interpolation
- Axis travel : saddle (longitudinal) x-axis: 3,000 mm / column (cross) y-axis: 820 mm / spindle head (vertical travel) z-axis: 720 mm / spindle head rotation (b-axis): deg. ±110 / c-axis (rotary table): 360,000 positions (via nc rotary table ds50c-r1-z)
- Spindle taper hole: 7/24 taper, no. 40 / spindle speed maximum (standard): 18,000 min⁻¹
- Table length dimension: 3,500 mm / table width dimension: 820 mm / table loading capacity: 2,500 kgf
- Tool storage capacity (option): 48 tools
- Machine height (from floor level): 3,356 mm / machine width: 5,250 mm / machine depth: 4,046 mm / machine weight: 16,300 kgf
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
