Mazak VTC 800/30 SLR

Photo Gallery

Mazak - VTC 800/30 SLRIT-MIL-MAZ-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

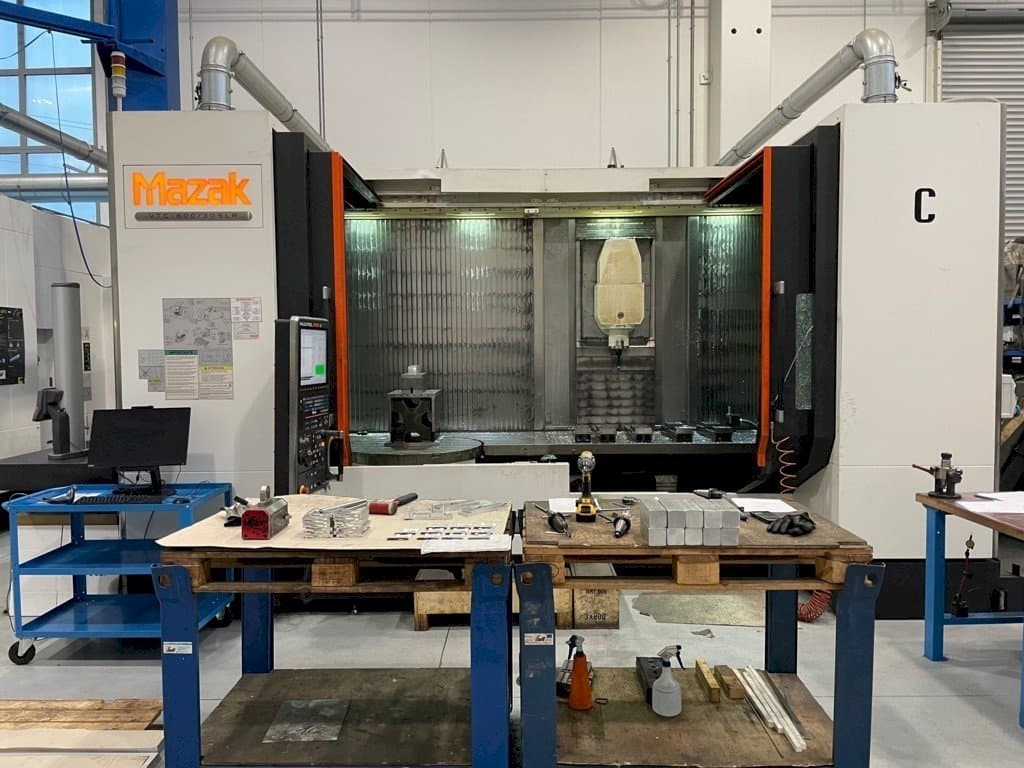

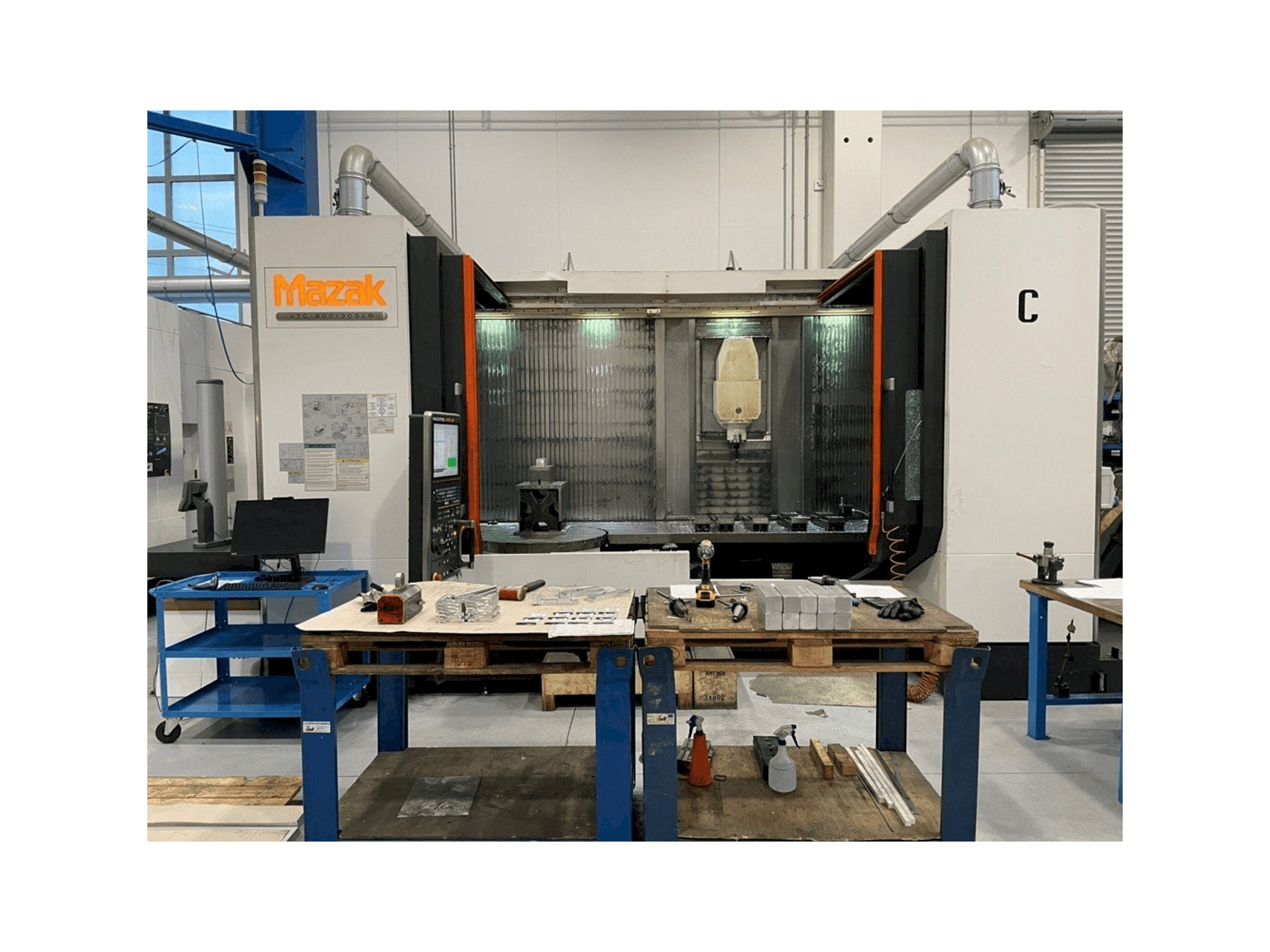

Mazak VTC 800/30 SLR Vertical Milling machine

Show in original language

This Mazak VTC 800/30 SLR Vertical Milling machine was made in 2017 and has been installed in the year 2018. It has a working history of 2500 hours. This 5 axis machine is operated through a Mazatrol matrix 2 control unit. It comes with a spindle speed up to 18000 rpm and a table dimension of 3500 x 820 mm.

Overview

brand: Mazak
year: 2017
MODEL: VTC 800/30 SLR
production hours: 2500
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak VTC 800/30 SLR

Control Unit

Control Brand: MAZATROL
Control Model: matrix 2

Dimensions

Machine Depth: 5250 mm
Machine Height: 3330 mm
Table Length: 3500 mm
Table Width: 820 mm

Movement

Number of Axes: 5
X-axis Travel: 3000 mm
Y-axis Travel: 800 mm
Z-axis Travel: 720 mm

Technical Specification

Spindle Power: 35 kW
Spindle Speed: 18000 RPM
Taper Size: ISO 40

Additional Information

Additional equipment

Hive tool magazine no. 155
Remote handwheel
Central bulkhead for pendular machining
3-colour lamp
Spindle nose air blower
High pressure coolant
Through the spindle 15 bar
Renishaw RMP60 probe
5 axis packages
Sensitive drilling cycle

Machine Benefits

Technical Machine Benefits

Matrix 2 numerical control
Measurements width add: 624 mm (mobile cnc panel)
Integrated rotary table Ø 1000
X, y, z axis rapid feed speed: 50 m/min
Spindle power: 15 min working - 35 kw / continuous - 26 kw
G07 cylindrical interposer
Lateral chip conveyor
Right-handed mayfran conveyor
B-axis head rotation: +/- 110 degrees
C axis: +/- 360 degrees

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
