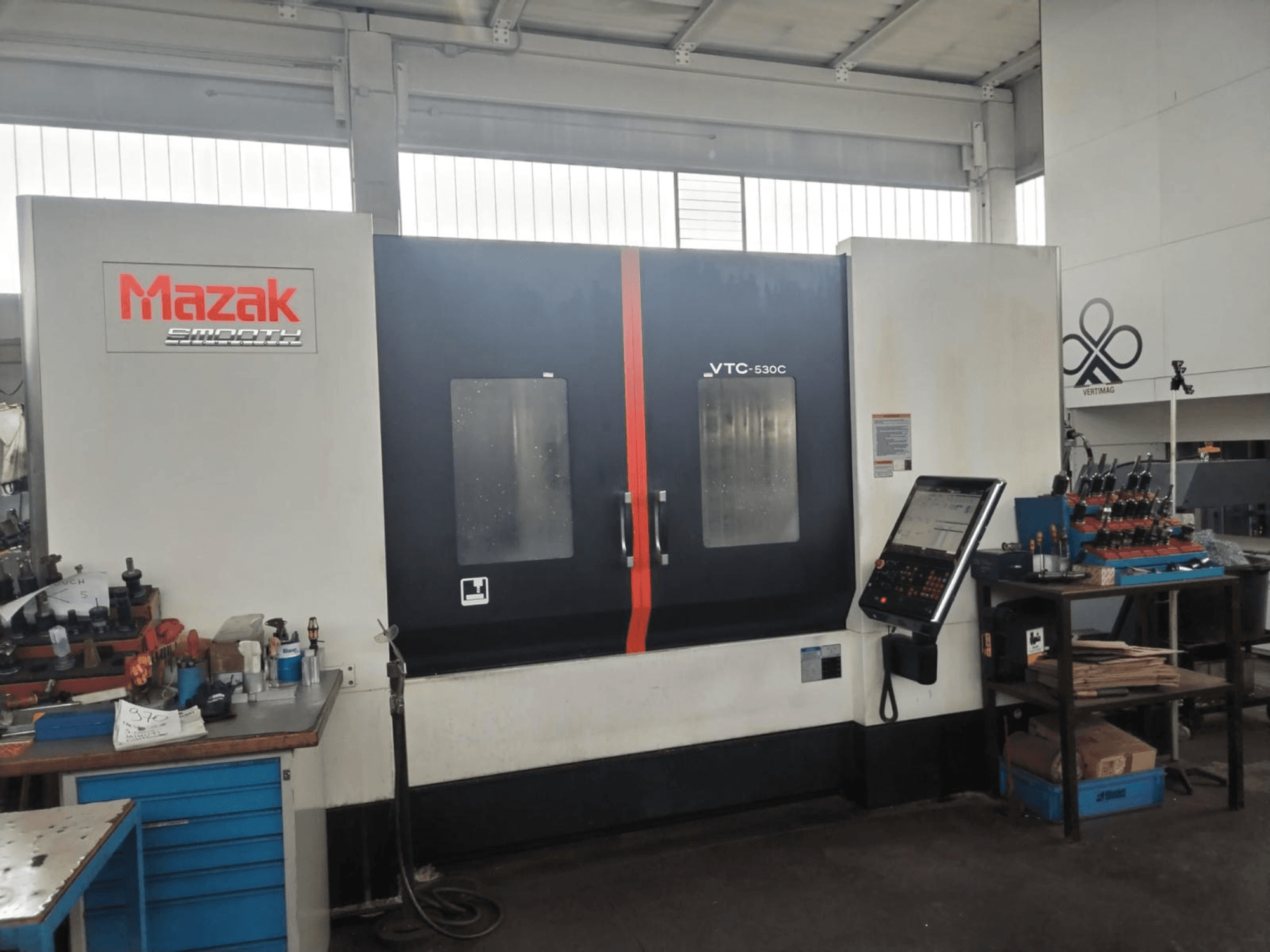

This 3-axis Mazak VTC-530C was manufactured in 2021. It features an impressive X-axis travel of 1740 mm, Y-axis travel of 530 mm, and Z-axis travel of 660 mm. The machine includes a robust table size of 2300 x 760 mm and a maximum table load capacity of 1400 kg. If you are looking to get high-quality machining capabilities, consider the Mazak VTC-530C vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Mazak
- year: 2021
- MODEL: VTC-530C
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - Mazak VTC-530C
Dimensions
- Table Length: 2300 mm
- Table Load: 1400 kg
- Table Width: 760 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1740 mm
- Y-axis Travel: 530 mm
- Z-axis Travel: 660 mm
Technical Specification
- Spindle Speed: 12000 RPM
- Taper Size: ISO 40
- Tool Stations: 30
Additional Information
CNC control unit: Mazak SmoothG
Table: surface T-slots
Max workpiece dimensions: 4100 mm x 905 mm x 790 mm
Distance table top to spindle nose: 180 mm
Rapid feedrate (X/Y/Z): 42,000 mm/min
Coolant pressure: 25 bar
Cumulative machine hours:
Power On (Accensione): 13920:02'22"
Auto Operation (Op. Autom.): 10602:32'58"
Auto Cut (Op. Aut. Tag): 10048:01'46"
Cut Time (Op. Di Tag.): 7162:26'22"
Total Time (Tempo Tot.): 13920:02'20"
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
