Mazak VTC-300C-II

Photo Gallery

Mazak - VTC-300C-IIGB-MIL-MAZ-2009-00002

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak VTC-300C-II

Show in original language

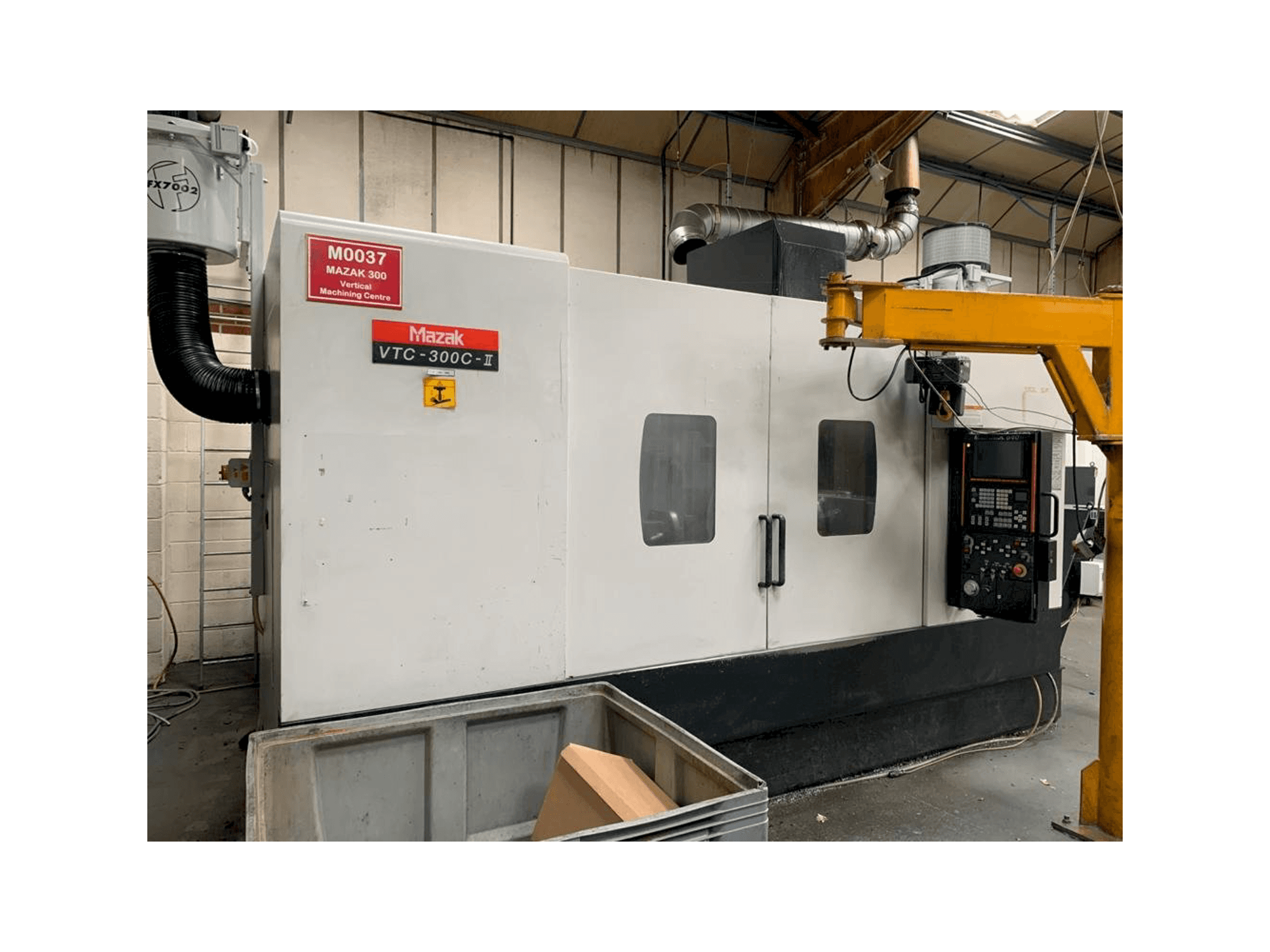

This Mazak VTC-300C-II Vertical Machining Center was made in the United Kingdom in the year 2009. It is equipped with a MAZATROL 640M control unit. This 3 axis machine counts with a spindle speed up to 12000 rpm. It includes an interlocked guards and a Low Volt Light as many other technical benefits. This machine is in very good conditions.

Overview

brand: Mazak
year: 2009
MODEL: VTC-300C-II
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak VTC-300C-II

General Data

Measurements width: 4450 mm
Measurements depth: 3460 mm
Measurements height: 3086 mm
Machine weight: 11000 kg

Control Unit

Model: 640M
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 18.5 kW
Number of axis: 3

Movement

X-AXIS Movement: 1740 MM
Y-AXIS Movement: 760 MM
Z-AXIS Movement: 660 MM

Workpiece

Workpiece weight: 1200 KG

Table

Outer length: 2000 MM
Outer width: 760 MM

Tools

Slots in storage: 30
Type of tool holder: BT 40

Media

Main electronic connection: 415 V
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4th axis rotary table
- - Coolant
- - Low volt light
- - Interlocked guards
- - Rapid feedrates 36 m/min
- - Swarf conveyor
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
