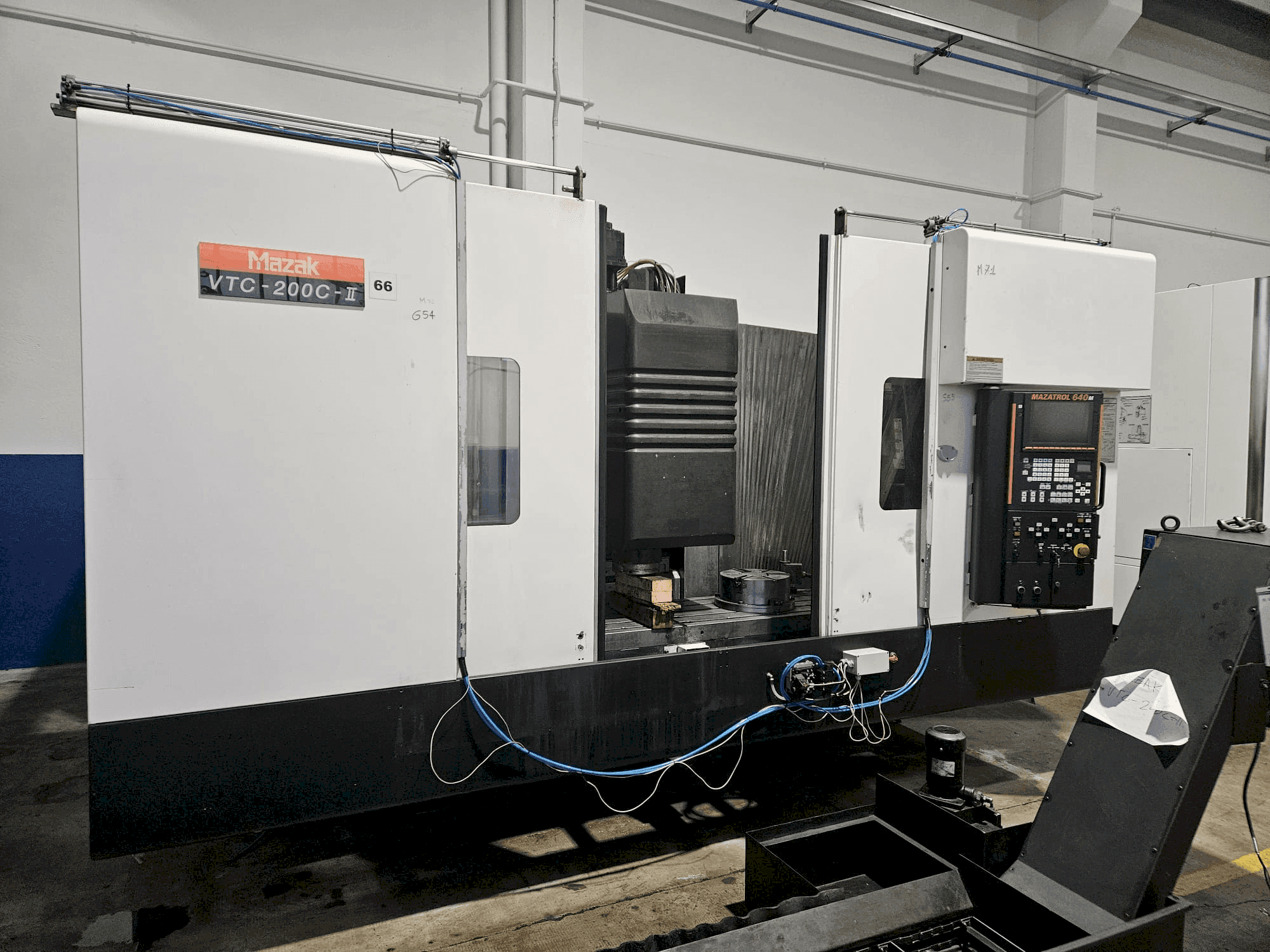

Mazak VTC 200 C II

Photo Gallery

Mazak - VTC 200 C IIIT-MIL-MAZ-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MAZAK VTC-200C-II | Vertical machining centre

Show in original language

This 3-axis MAZAK VTC-200C-II was manufactured in 2014. A vertical machining centre featuring a Mazatrol Fusion 640 M CNC control, with X, Y, and Z axis travels of 1660mm, 510mm, and 510mm respectively. It boasts a spindle speed of up to 12,000 rpm and a spindle motor power of 18.5 kW. The machine includes a tool magazine for 30 tools and is equipped with a high-pressure pump of 15 bar, enhancing its operational efficiency. Contact us for further details.

Overview

brand: Mazak
year: 2014
MODEL: VTC 200 C II
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak VTC 200 C II

Control Unit

Control Brand: MAZATROL
Control Model: Mazatrol Fusion 640 M

Dimensions

Machine Depth: 4525 mm
Machine Height: 2759 mm
Machine Weight: 8200 kg
Table Length: 2000 mm
Table Width: 510 mm

Movement

Number of Axes: 3
X-axis Travel: 1660 mm
Y-axis Travel: 510 mm
Z-axis Travel: 510 mm

Technical Specification

Spindle Power: 18.5 kW
Spindle Speed: 12000 RPM
Taper Size: ISO 40
Tool Stations: 30

Additional Information

Additional equipment

Machine Specific Data
Central bulkhead for pendulum work
External robot/automation interface
Automatic doors
Remote flyer
Right side chip conveyor

Machine Benefits

Technical Machine Benefits

Maximum torque: 95 nm
High spindle speed and power, automation compatibility, high-pressure coolant system
Tool magazine for 30 tools

Extra Information

machine manuals, part lists, CNC in digital and paper format, Original CE certification
