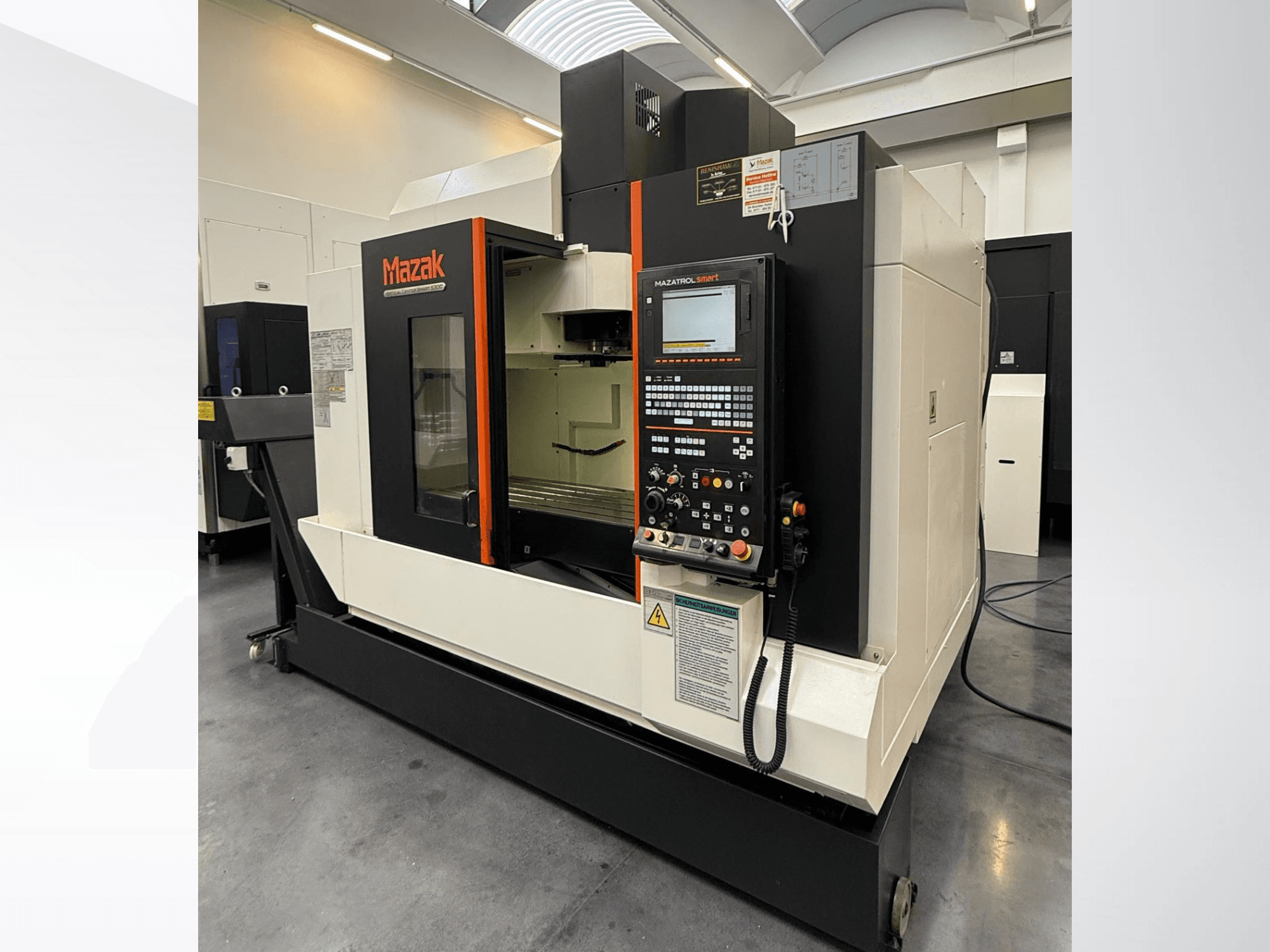

This 3-axis Mazak VCS 530C was manufactured in 2012. It features a table size of 1300 × 550 mm, X/Y/Z travels of 1050/530/510 mm, and a high-speed spindle up to 12,000 rpm. The tool magazine holds 30 tools, enhancing productivity. Ideal for detailed machining tasks, consider the opportunity to buy this Mazak VCS 530C vertical machining centre. Contact us for more information.
Overview
- brand: Mazak
- year: 2012
- MODEL: VCS 530C
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - Mazak VCS 530C
Dimensions
- Machine Depth: 2835 mm
- Machine Height: 2785 mm
- Machine Length: 2280 mm
- Machine Weight: 6900 kg
Movement
- X-axis Travel: 1050 mm
- Y-axis Travel: 530 mm
- Z-axis Travel: 510 mm
Additional Information
Rapid Traverse X-Axis: 36000 mm/min
Rapid Traverse Y-Axis: 36000 mm/min
Rapid Traverse Z-Axis: 36000 mm/min
Table Size: 1300 x 550 mm
Tool Magazine (ATC): 30 tools
Automatic Tool Presetter: Yes, contact type
Through-Spindle Coolant (High Pressure): 15 bar
Chip Conveyor: Belt type
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
