Mazak VCN-530C

Photo Gallery

Mazak - VCN-530CDK-MIL-MAZ-2017-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak VCN-530C For Sale | gindumac.com

Show in original language

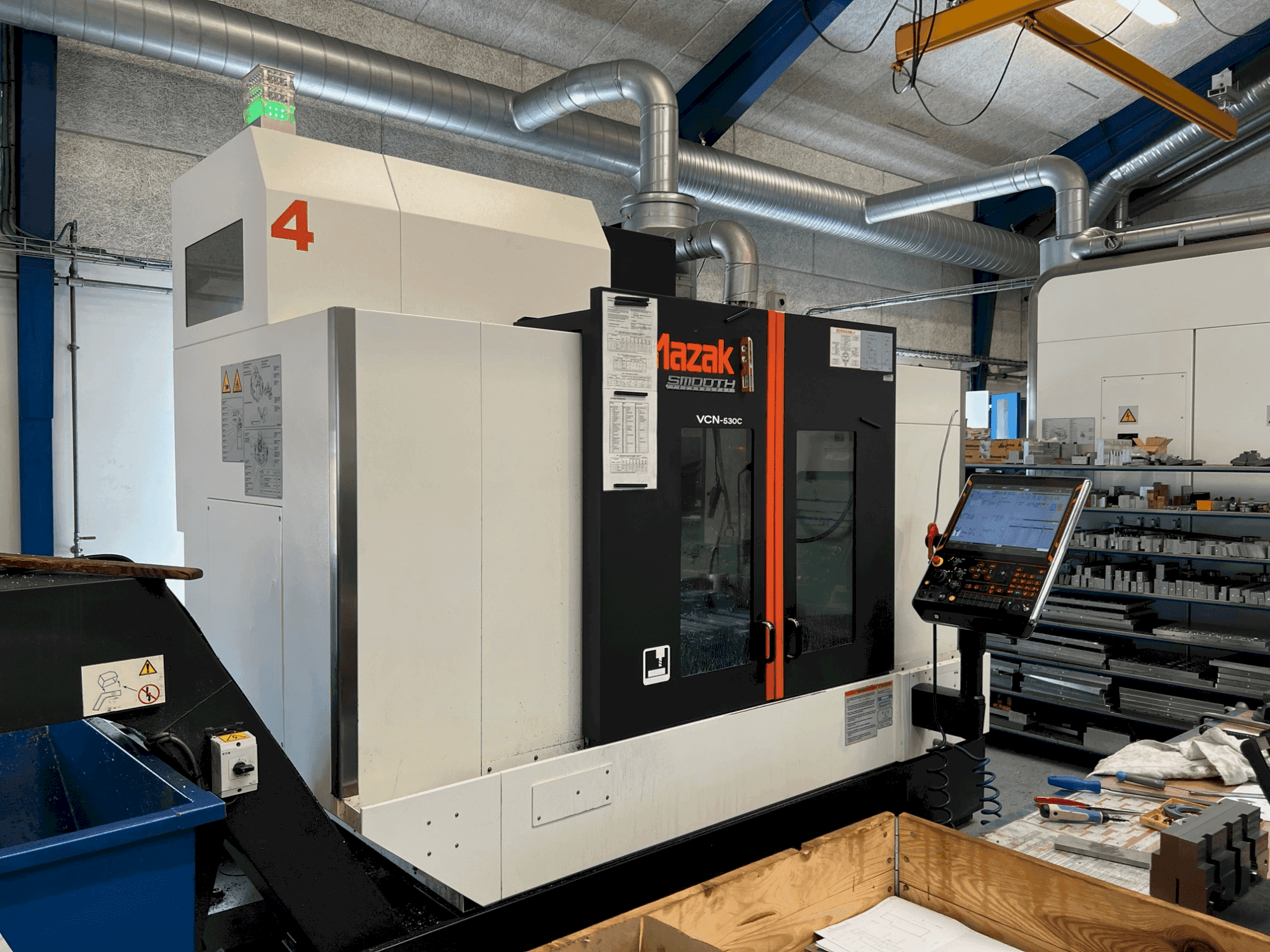

This 3-axis Mazak VCN-530C was manufactured in 2017 and features high-pressure coolant through the system, synchronized tapping, and Ethernet operation functionality. Ideal for precise and efficient machining, it also includes a chip conveyor for steel and a signal tower with three colors. If you are looking to get high-quality milling capabilities, consider the Mazak VCN-530C machine we have for sale. Contact us for more information about this machine.

Overview

brand: Mazak
year: 2017
MODEL: VCN-530C
application type: Milling
Location: Denmark
machine type: Vertical Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak VCN-530C

Control Unit

Control Brand: MAZATROL

Additional Information

Additional equipment

Workpiece air blast / Chip conveyor left disposal (hinge/for steel) / Signal tower (3 colors lights)/ Renishaw, RMP60 / Renishaw, TS27 / Ekstra kolevandskar 1000 x 1000 mm

Machine Benefits

Technical Machine Benefits

Ethernet operation function
Air through spindle in running / hi-press coolant thru system (15 kgf, 213 psi) / cover coolant (required for chip conveyor)
Synchronized tapping / maximum program size: 8mb / g00 slope constant
Axis travel : table: cross-wise travel amount (x-axis): 1,050 mm / saddle: back & forth travel amount (y-axis): 530 mm / spindle head: up & down travel amount (z-axis): 510 mm
Spindle taper bore: 7/24 taper no. 40 / rotating speed maximum: 12,000 min⁻¹
Table work dimension (cross): 1,300 mm / table work dimension (longitudinal): 550 mm
Magazine capacity (standard): 30 / tool shank: cat 40
Height from floor level: 2,808 mm / width: 2,950 mm / length: 3,139 mm / weight of machine without coolant tank (standard spec. ): 6,800 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
