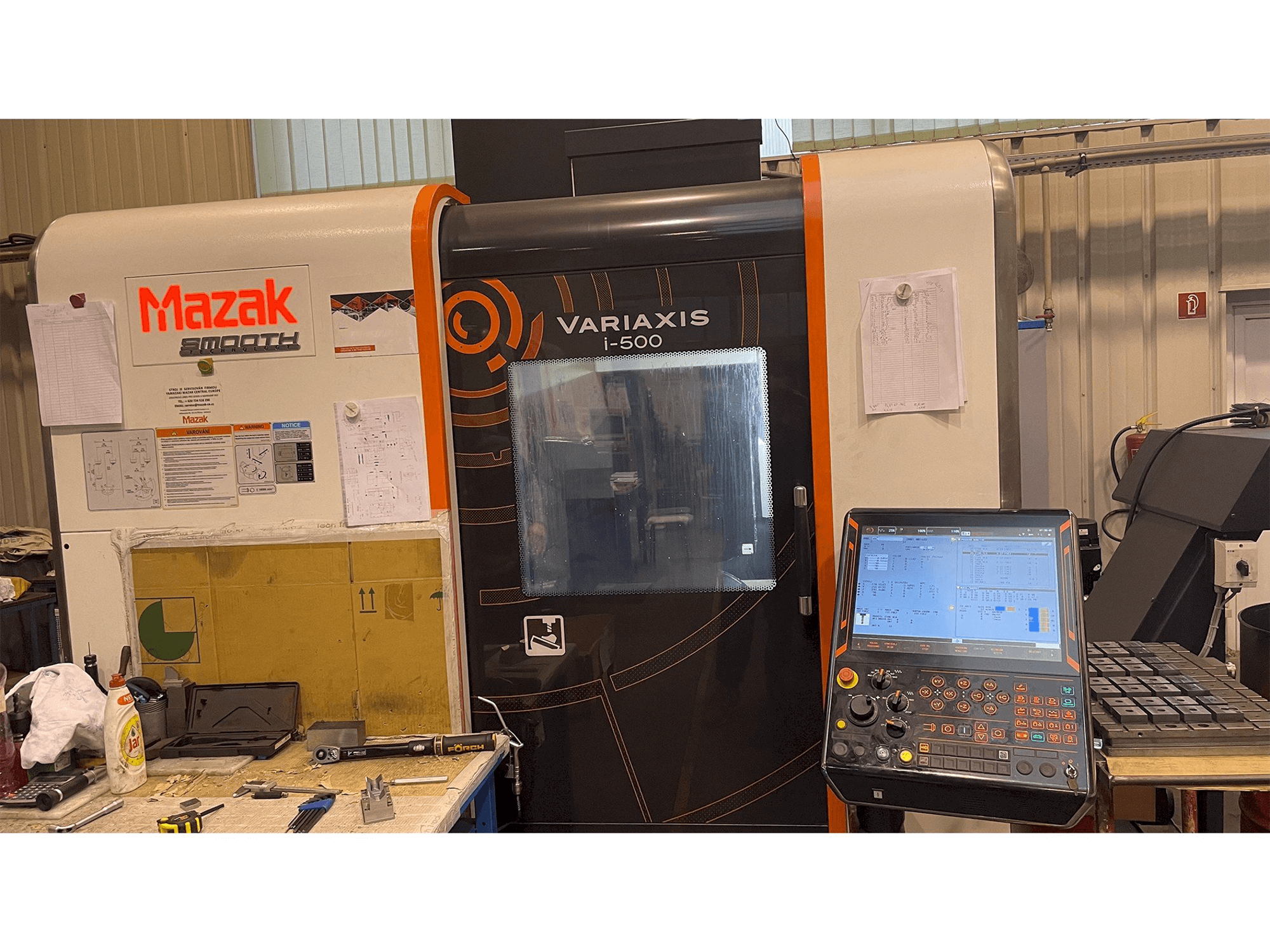

Front view of Mazak Variaxis i-500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Variaxis i-500

Photo Gallery

Mazak - Variaxis i-500SK-MIL-MAZ-2020-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Variaxis i-500 Vertical machining center

Show in original language

This Mazak Variaxis i-500 Vertical machining center was made in the year 2020. It has been on for 7160 hours, of which 3533 are spindle hours. It is operated through a Mazak SmoothX control unit. This 5 axis machine works with a spindle speed up to 12000 rpm. It is under warranty until Feb/2022. Very good condition.

Overview

brand: Mazak
year: 2020
MODEL: Variaxis i-500
production hours: 3533
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak Variaxis i-500

Control Unit

Model: SmoothX
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 350 mm
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 550 mm
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 56 m/min
A-AXIS Rapid traverse: 18000 °/min
C-AXIS Rapid traverse: 18000 °/min

Workpiece

Workpiece weight: 300 KG

Tools

Slots in storage: 40
Max weight: 8 KG
Max tool diameter: 90 mm
Max tool length: 300 mm
Type of tool holder: BT 40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine manual
Very good condition
Under warranty until 2/2022

Technical Machine Benefits

Simultaneous axis operation
Maximum workpiece diameter: 500 mm
Maximum workpiece height: 350 mm
A-axis (table tilt) travel amount/indexing: 0. 0001° -120 to +30 degrees
C-axis (table rotation) travel amount/indexing 0. 0001° ±360
Through spindle coolant
Renishaw probe: 600 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
