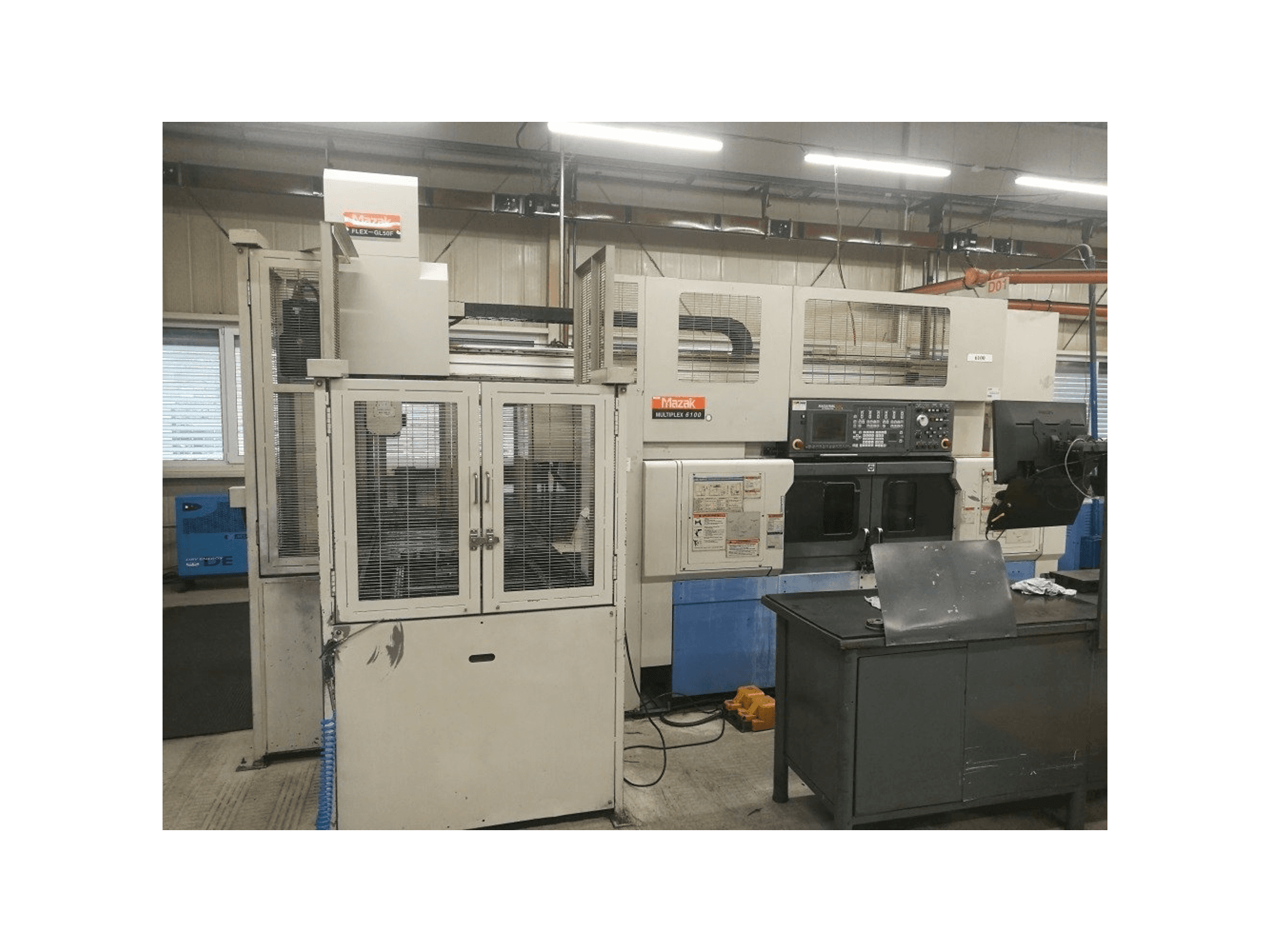

Front view of Mazak Multiplex 6100 + robot FLEX-GL50F machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Multiplex 6100 + robot FLEX-GL50F

Photo Gallery

Mazak - Multiplex 6100 + robot FLEX-GL50FCZ-TUR-MAZ-2001-00005

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

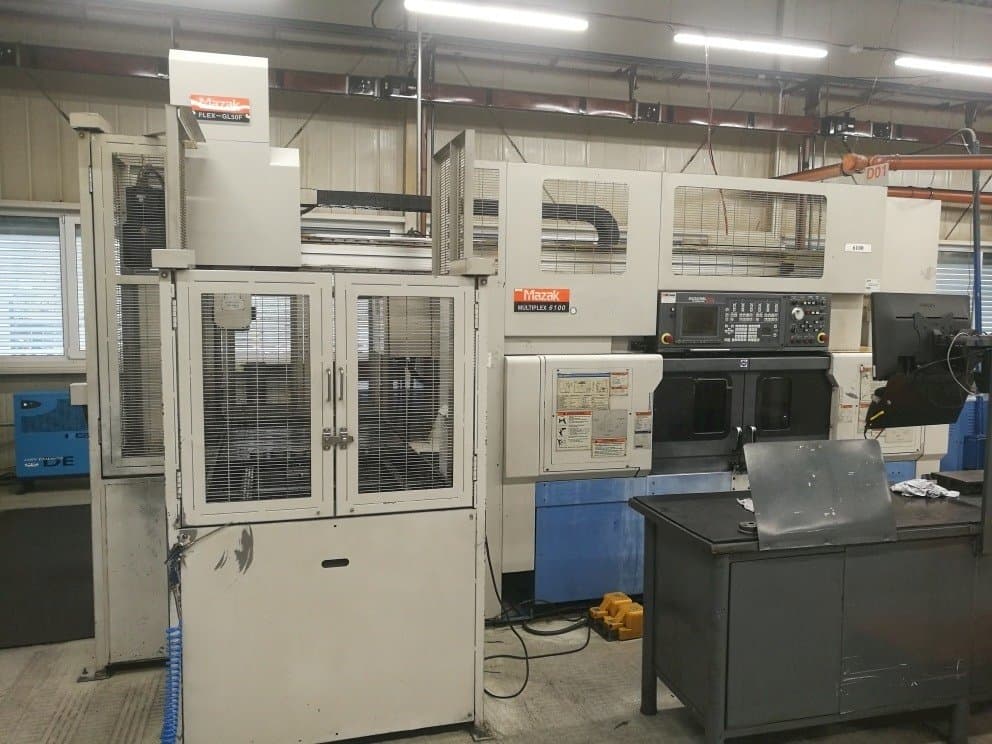

MAZAK Multiplex 6100 + robot FLEX-GL50F Lathe

Show in original language

This MAZAK Multiplex 6100 + robot FLEX-GL50F Lathe was manufactured in the year 2001 in Japan. It is equipped with a Mazak Mazatrol 640T control unit and has 3 axis. The machine has a spindle speed of 6000 rpm, is in good condition and well maintained.

Overview

brand: Mazak
year: 2001
MODEL: Multiplex 6100 + robot FLEX-GL50F
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre
control unit brand: MAZATROL

Technical Information - Mazak Multiplex 6100 + robot FLEX-GL50F

General Data

Measurements width: 3000 mm
Measurements depth: 1650 mm
Measurements height: 2090 mm
Machine weight: 6400 kg

Control Unit

Brand: MAZATROL
Model: Mazatrol 640T

Main drive

Number of spindles: 2
Spindle speed range: 6000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 200 mm
Z-AXIS Movement: 365/420 mm

Turret

Number of turrets: 2

Tools

Slots in storage: 12

Additional equipment

- Mazak Flex GL-50F portal robot (2001)
- Tool holders incl. driven holders
- Tool holders - · External holder: 7x · Internal holder: 9x · Front holder: 4x · Horizontally driven: 10x · Vertically driven: 3x

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum cutting diameter 230 mm
- - Distance between spindles 1030 mm
- - Maximum cutting length 700 mm
- - Spindle through hole 61 mm
- - Max. Bar diameter 51 mm
- - Spindle motor power (cont. /25%) 7. 5/11 kw
- - Rapid feedrates x/z/y 30/33 m/min
- - C axis on both spindles
- - Max. Milling tool speed 4500 rpm, power 3. 7 kw
Qualitative Machine Benefits:
- - Good condition
- - Regularly serviced and maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
