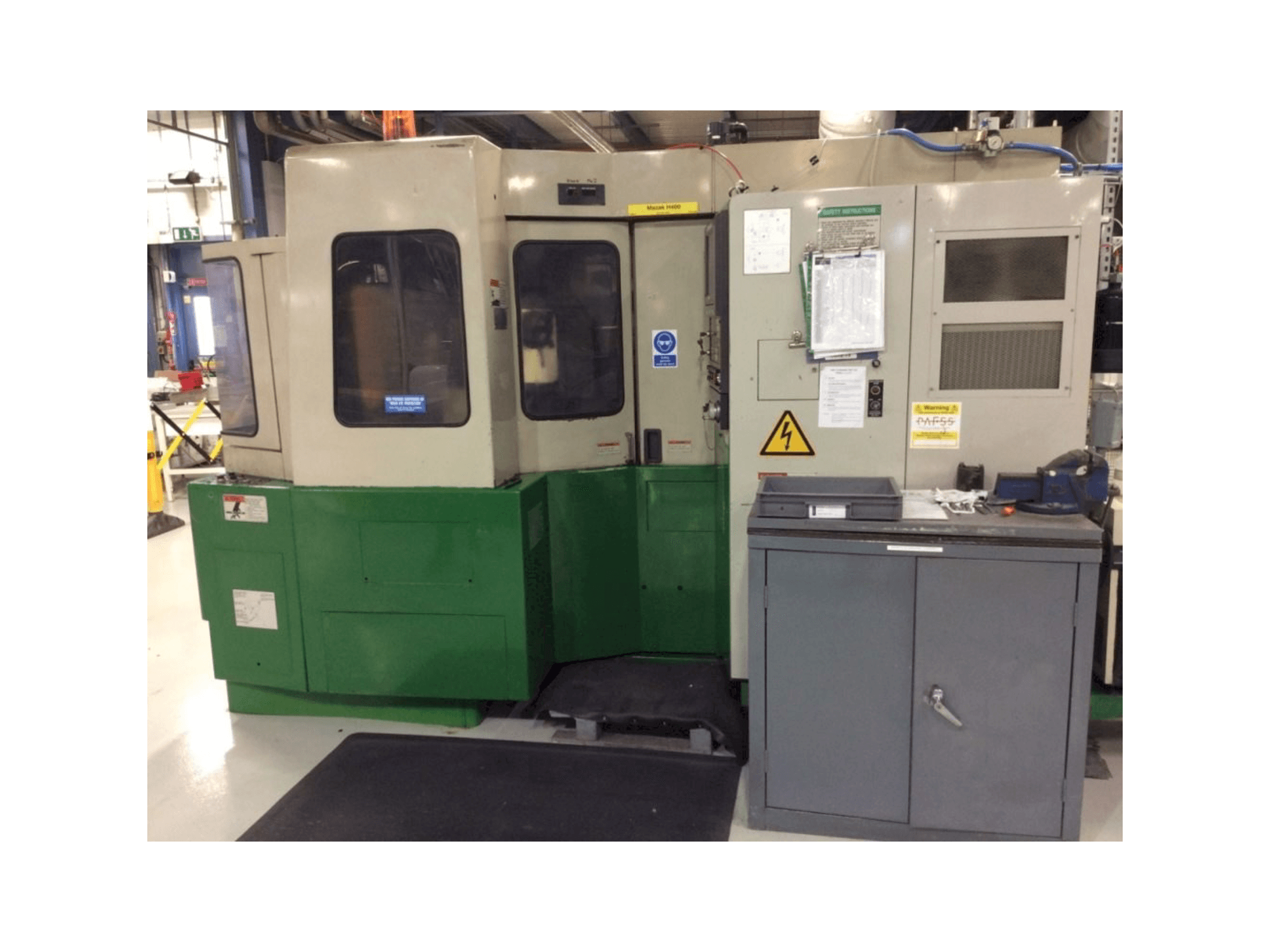

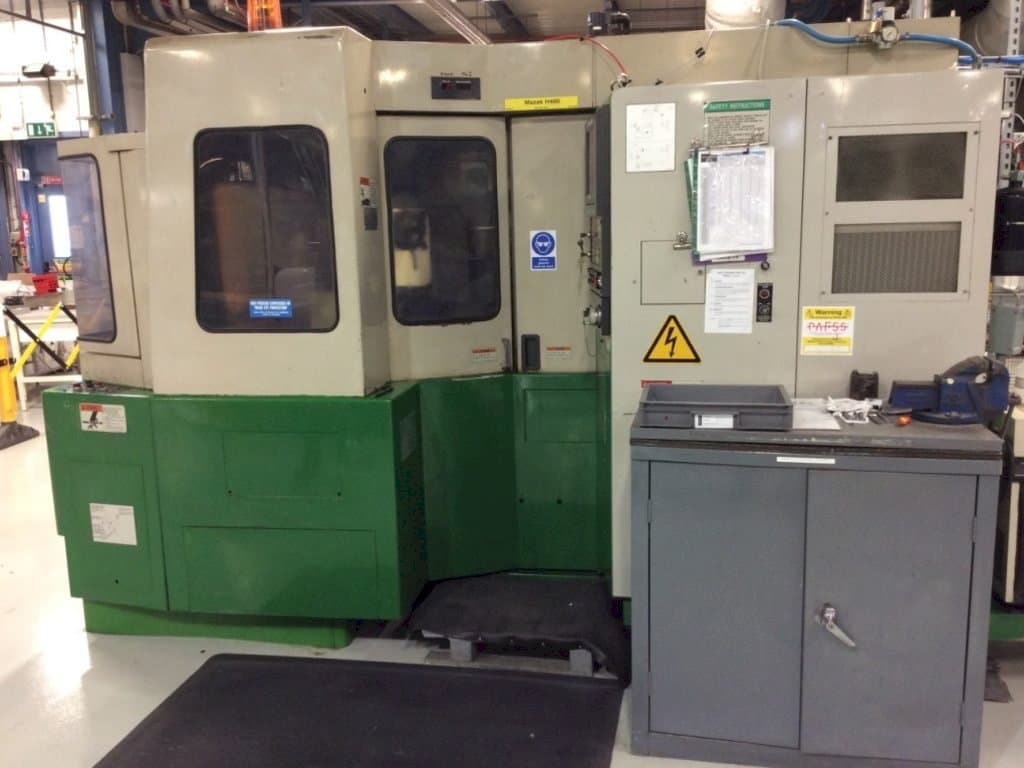

Front view of Mazak Mazatech H400 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Mazatech H400

Photo Gallery

Mazak - Mazatech H400IE-MIL-MAZ-1990-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Mazatech H400 Horizontal Machining Center

Show in original language

This Mazak Mazatech H400 Horizontal Machining Center was made in Japan in 1990. It is equipped with a Mazak Mazatrol M-32 control unit. This Mazak can operate with a spindle speed up to 10000 rpm. It includes 2 x tombstones, and a selection of tool holders.

Overview

brand: Mazak
year: 1990
MODEL: Mazatech H400
application type: Milling
Location: Ireland
machine type: Horizontal Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak Mazatech H400

General Data

Measurements width: 4000 mm
Measurements depth: 2700 mm
Measurements height: 2300 mm
Machine weight: 7200 kg

Control Unit

Model: Mazatrol M-32
CNC main language: English
CNC language customizable: Yes
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece x: 610 mm
Workpiece y: 600 mm
Workpiece weight: 400 kg

Table

Outer length: 400 mm
Outer width: 400 mm

Tools

Slots in storage: 40
Max weight: 12 kg
Max tool diameter: 150 mm
Max tool length: 320 mm

Media

Main electronic connection: 400 V
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

2 x Tombstones
Selection of Tool Holders

Machine Benefits

Technical Machine Benefits

Twin pallet horizontal machining centre
40 tool atc
Spindle to table center: 100 - 610mm
Spindle nose to table top: 30 - 540mm
Spindle motor: 15hp
Pallet size: 400 x 400mm

Machine History

Industries

Medical device

End product

Medical device parts

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
