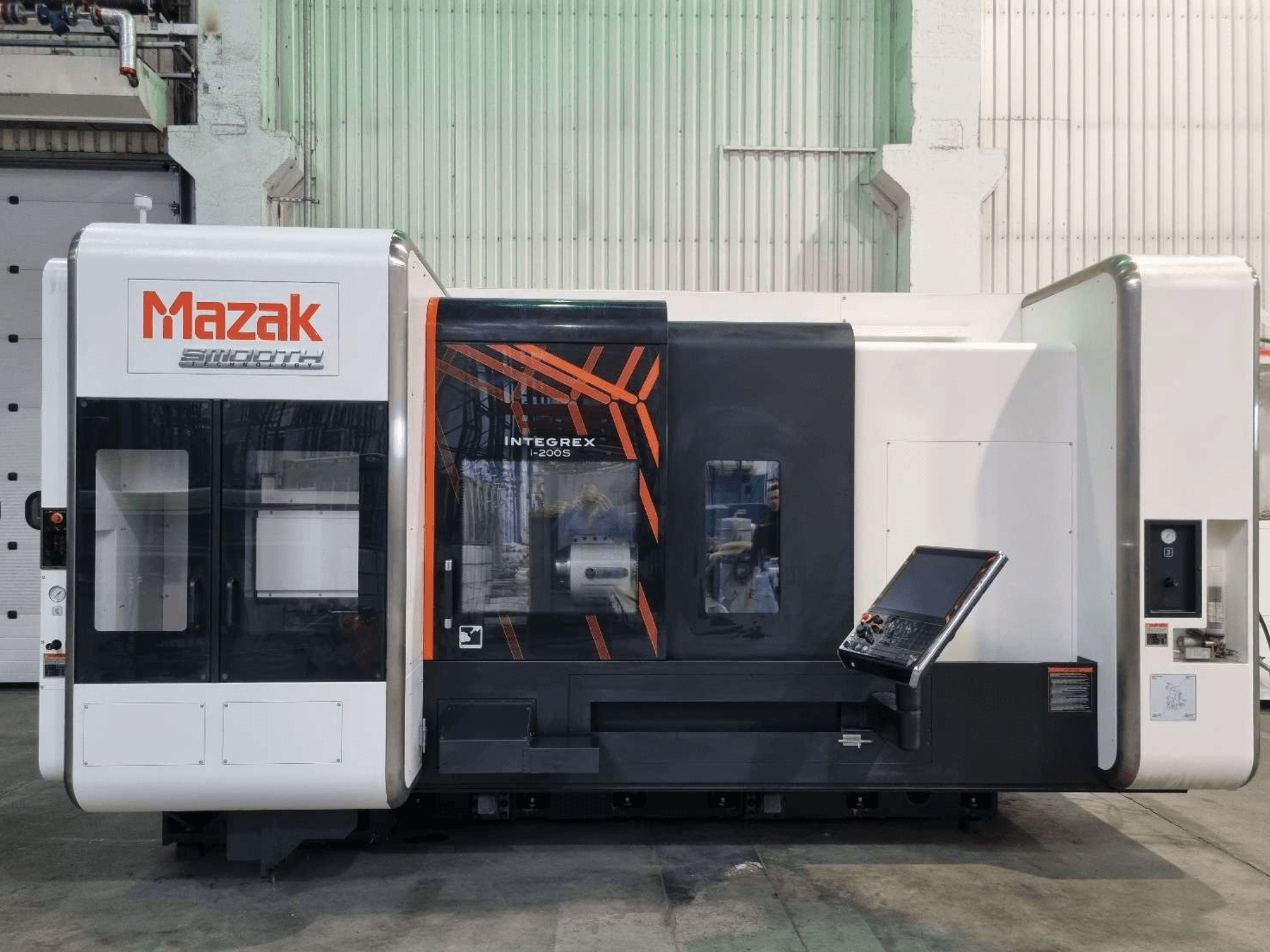

This 5-axis Mazak INTEGREX i-200 S was manufactured in 2017. It features full 5-axis simultaneous machining, a maximum machining diameter of Ø658 mm, and a maximum machining length of 1519 mm. The machine includes a robust tool magazine capacity of 72 positions and is equipped with both main and second spindles for enhanced capabilities. If you are looking to get high-quality turning and milling capabilities, consider the Mazak INTEGREX i-200 S turn-mill centre. Contact us for further details.
Overview
- brand: Mazak
- year: 2017
- MODEL: INTEGREX i‑200 S
- production hours: 67
- application type: Turning
- Location: Poland
- machine type: Turn-Mill Centre
- control unit brand: MAZATROL
Technical Information - Mazak INTEGREX i‑200 S
Control Unit
- Control Brand: MAZATROL
Dimensions
- Machine Weight: 16600 kg
Movement
- Number of Axes: 5
- X-axis Travel: 615 mm
- Y-axis Travel: 260 mm
- Z-axis Travel: 1585 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: No
- Spindle Power: 22 kW
- Spindle Speed: 3300 RPM
Additional Information
Operating time: Approx. 68 hours
Availability: Immediate
Key capabilities:
Full 5‑axis simultaneous machining
Main spindle + second spindle
Milling spindle with automatic tool changer
Complete turning and milling in one setup
Capacity and working range
Max swing: Ø658 mm
Swing over cross slide: Ø658 mm
Max machining diameter: Ø658 mm
Max machining length: 1519 mm
Bar capacity (main spindle): Ø102 mm
Bar capacity (second spindle): Ø65 mm
Max support mass (main spindle): 650 kg
Max support mass (second spindle): 300 kg
Main spindle (HD1)
Chuck size: 12"
Spindle bore: Ø112 mm
Motor output: 22 / 18.5 kW
Torque: 883.3 / 716.2 Nm
Acceleration time: 4.9 s
Air blow system: Included
Additional configuration: Heavy‑duty HD1 spindle; removal of standard spindle cylinder and chuck
Second spindle (HD2)
Chuck size: 8"
Max speed: 5,000 rpm
Spindle bore: Ø76 mm
Motor output: 18.5 / 15 kW
Torque: 325 / 238 Nm
Acceleration time: 4.5 s
Factory option: HD2 spindle synchronization function
Milling spindle
Max speed: 12,000 rpm
Motor output: 24 kW
Cooling: Oil & air
Tool interface: HSK‑A63 (T63)
90° indexing time: 0.5 s
Acceleration: 1.27 s
Lubrication: Oil & air
Tool capacity:
O.D. turning tools: □25 mm
I.D. turning tools: Ø40 mm
Milling tools: Max Ø125 × 400 mm
Axis travels
W: 1574 mm
Rapid traverse: X/Z 50 m/min; Y 40 m/min; W 30 m/min
Tool system and magazine
Tool system: CAPTO C6
Tool magazine capacity: 72 positions
Automatic tool changer: Included
Functions: Tool breakage detection in magazine; Overload detection
CNC functions and software
5‑axis machining function package
Tool radius compensation for 5‑axis
Cylindrical interpolation
Polar coordinate interpolation
Synchronous tapping with milling spindle
Cooling and preparation
Through‑tool coolant: 7 MPa
Preparation for oil mist extraction system
Highlights
Practically new condition with only ~68 operating hours
Very rich factory configuration
Full 5‑axis simultaneous machining
Main and sub‑spindle configuration
72‑tool CAPTO magazine
Production‑ready with significant savings vs. new
Additional equipment
Chip and parts handling
Side chip conveyor – Consep type
Belt‑type parts conveyor
Bar feeding and workpiece handling
LNS QLS II bar feeder
Bar feeder interface kit
Automatic parts catcher
Filtration
SEI FILTRATION unit
Series: JT040
Model: 40/70‑V‑I‑R‑FM
Year: 2018
Other accessories
Machine mounting anchors
3‑color machine status signal lamp
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
