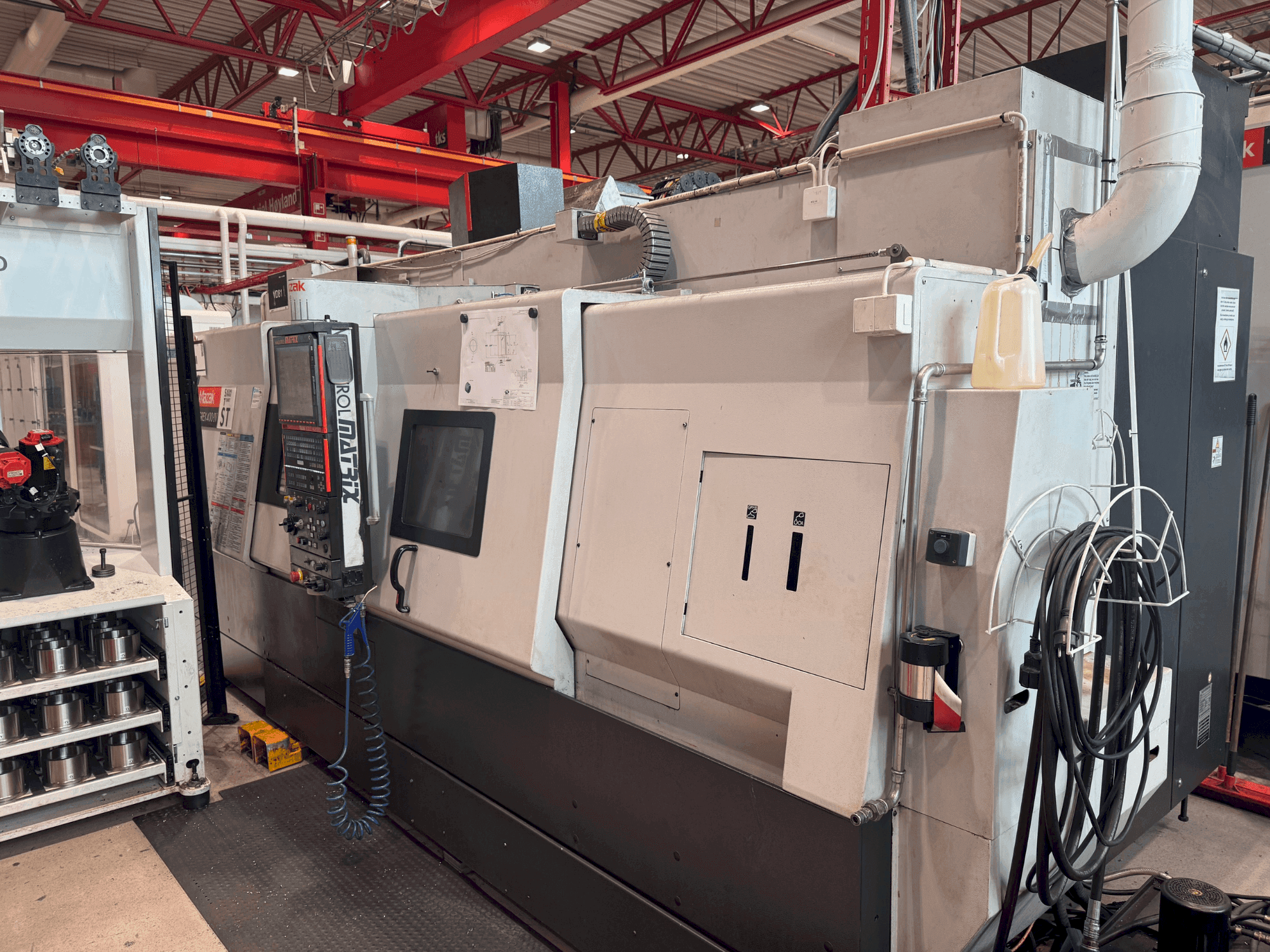

Mazak Integrex 400-IV ST

Photo Gallery

Mazak - Integrex 400-IV STNO-TUR-MAZ-2007-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak Integrex 400-IV ST For Sale | gindumac.com

Show in original language

This 5-axis Mazak Integrex 400-IV ST was manufactured in 2007, featuring dual 10-inch chucks and Mazatrol Matrix control. It offers X1 and X2 cross travels of 630 mm, Z1 and Z2 longitudinal travels of 1,585 mm and 1,546 mm respectively, and a Y-axis travel of 230 mm. The milling spindle operates at 12,000 rpm, and the turning spindle at 2,800 rpm. Consider the opportunity to buy this Mazak Integrex 400-IV ST turn-mill centre. Contact us for more information.

Overview

brand: Mazak
year: 2007
MODEL: Integrex 400-IV ST
production hours: 13536
application type: Turning
Location: Norway
machine type: Turn-Mill Centre
control unit brand: MAZATROL

Technical Information - Mazak Integrex 400-IV ST

Control Unit

Control Brand: MAZATROL

Additional Information

Machine Benefits

Technical Machine Benefits

Power on: 52874 hours/ cutting: 13536 hours
Chuck: 10 inches x 2
Milling spindle speed: 12000 rpm / turning spindle speed: 2800 rpm
Axis side / function stroke / range: x1 main spindle (cross travel): 630 mm / x2 sub spindle (cross travel): 630 mm / z1 main spindle (longitudinal): ~1585 mm z2 sub spindle (longitudinal): ~1546 mm / y shared (off-center milling): ±115 mm (230 mm total) / c1 main spindle rotation/index: 0. 0001° resolution / c2 sub spindle rotation/index: 0. 0001° resolution / w sub spindle quill/position: varies (used for part transfer) / b milling head tilt: -30° to +210°
Options: screen picture available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
