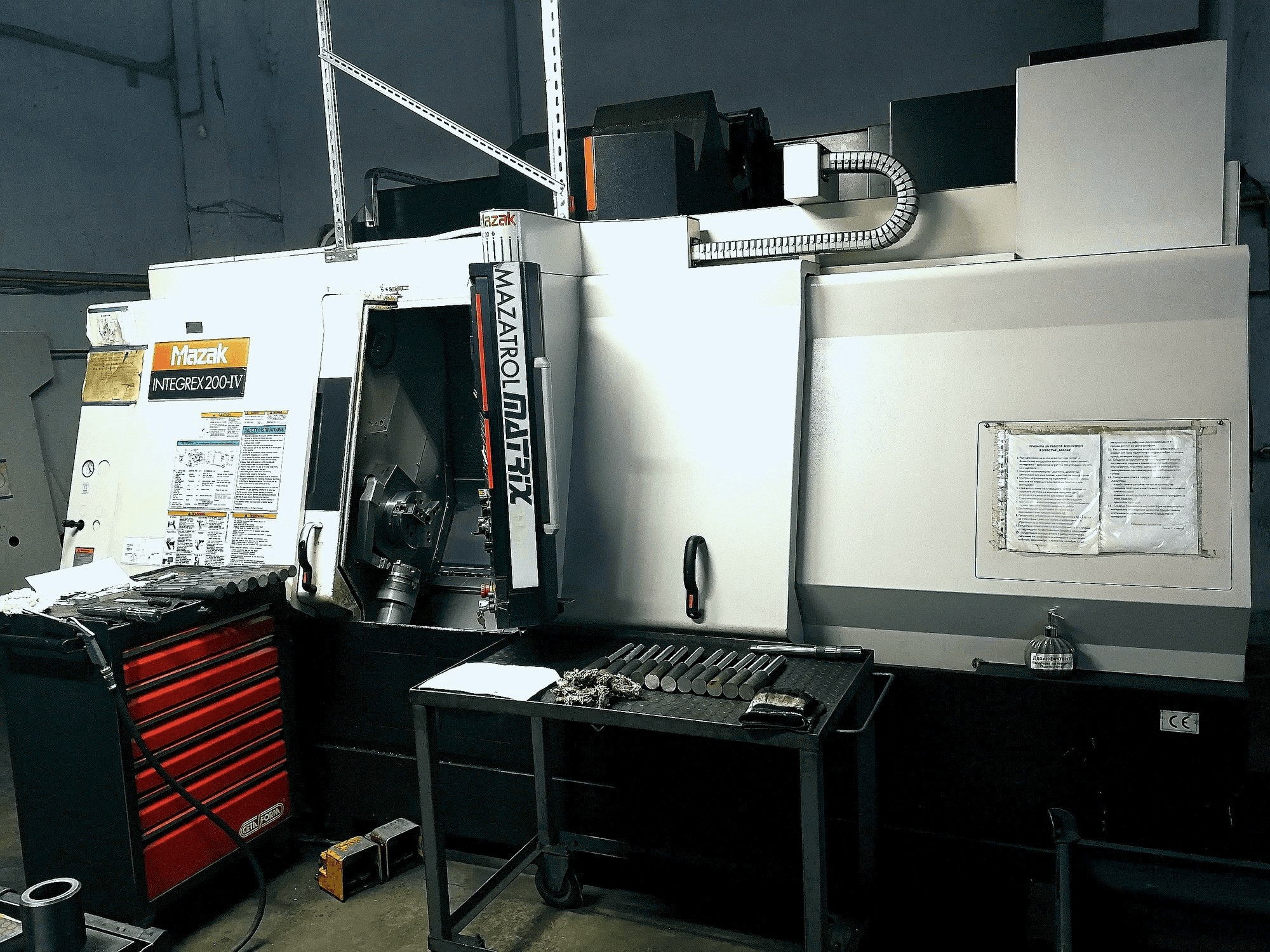

Front view of Mazak INTEGREX 200-IV machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak INTEGREX 200-IV

Photo Gallery

Mazak - INTEGREX 200-IVBG-TUR-MAZ-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak INTEGREX 200-IV

Show in original language

This Mazak INTEGREX 200-IV Lathe was built in Japan in the year 2008. This 5 axis machine has a record of 35111 hours, of which 14255 are cutting hours. It is equipped with a MAZATROL MATRiX control unit. This machine can work with a spindle speed range 35 - 5000 rpm. It has installed the measuring system for tools and a KM63 spindle.

Overview

brand: Mazak
year: 2008
MODEL: INTEGREX 200-IV
production hours: 14255
application type: Turning
Location: Bulgaria
machine type: Turn-Mill Centre
control unit brand: MAZATROL

Technical Information - Mazak INTEGREX 200-IV

General Data

Machine weight: 9200 kg

Control Unit

Model: MATRiX
Brand: MAZATROL

Main drive

Spindle speed range: 35 - 5000 1/MIN
Spindle motor power: 22 kW
Tool taper: KM63
Number of axis: 5

Movement

X-AXIS Movement: 580 mm
X-AXIS Rapid traverse: 38 m/min
Y-AXIS Movement: 160 mm
Y-AXIS Rapid traverse: 26 m/min
Z-AXIS Movement: 1045 mm
Z-AXIS Rapid traverse: 38 m/min

Additional Information

Additional equipment

Holders for turning knives – 5pcs
Holders ER 25 – 3 pcs
Rotatable holders D40 – 4 pcs
Renishaw measuring system
option in the pictures included and 48 tools inside magazine

Machine Benefits

Technical Machine Benefits

Max rotating diameter 660 mm
Max turning length 995 mm
Bar capacity 65 mm
Spindle torque 250 mm
Head 15-12000 rpm; 18. 5 kw
Tool magazine 40 pos
It has installed the measuring system for tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
