Mazak CV5- 5OO

Photo Gallery

Mazak - CV5- 5OOIT-MIL-MAZ-2020-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak CV5- 5OO For Sale | gindumac.com

Show in original language

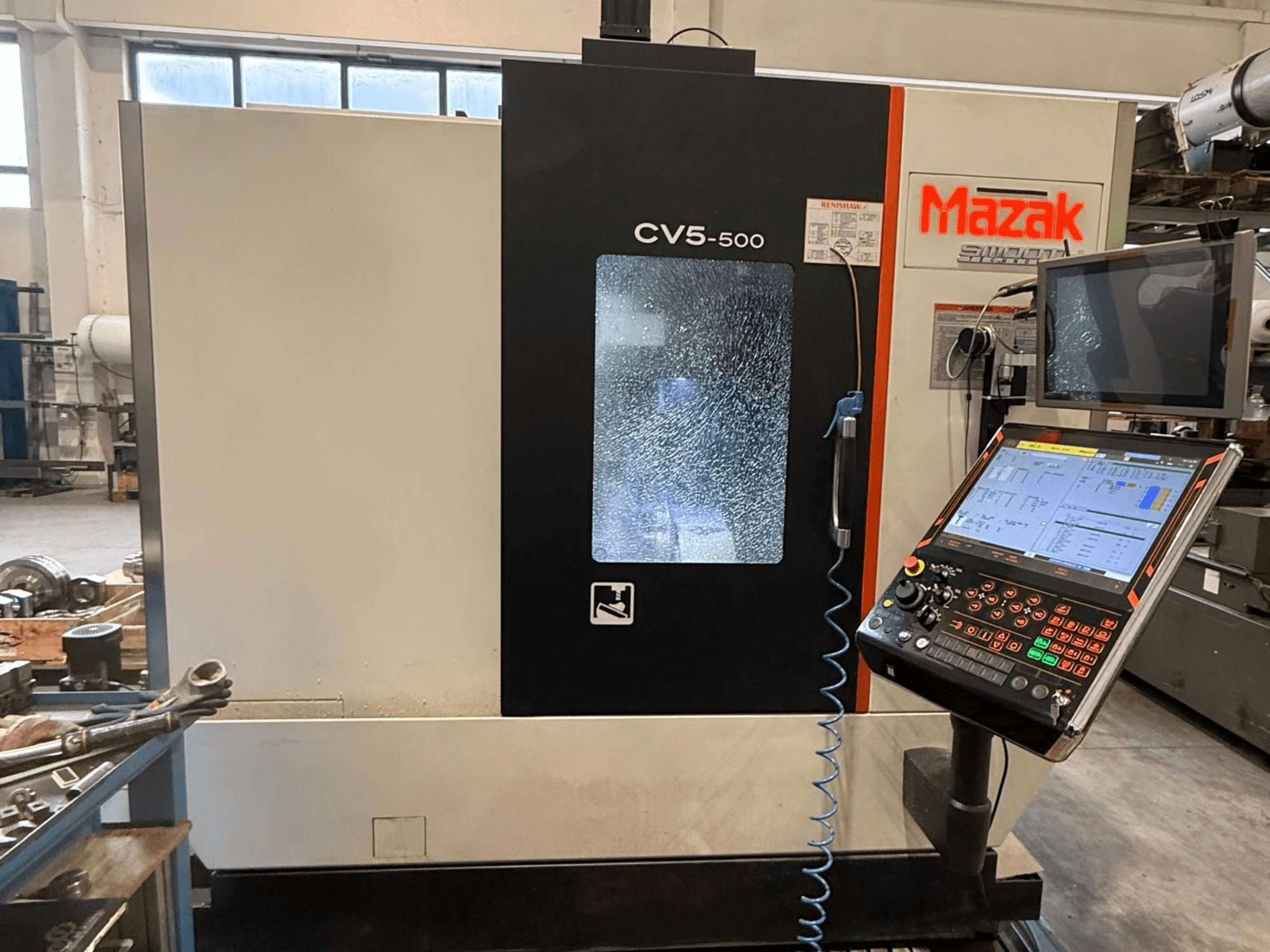

This 5-axis Mazak CV5-500 was manufactured in 2020. It features a 500 × 500 mm table, can handle a maximum load of 200 kg, and offers X/Y/Z travels of 730/450/470 mm respectively. The spindle supports up to 12,000 rpm with a power of 18.5 kW. It includes a 48-position tool magazine and a machine weight of 6,500 kg. If you are looking to get high quality 5-axis machining capabilities consider the Mazak CV5-500 machine we have for sale. Contact us for more information.

Overview

brand: Mazak
year: 2020
MODEL: CV5- 5OO
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - Mazak CV5- 5OO

Dimensions

Machine Weight: 6500 kg
Table Load: 200 kg

Movement

Number of Axes: 5
X-axis Travel: 730 mm
Y-axis Travel: 450 mm
Z-axis Travel: 470 mm

Technical Specification

Spindle Speed: 12000 RPM
Taper Size: ISO 40

Additional Information

Table Size: 500 × 500 mm
Number of Pallets: 1 T
Through-Spindle Coolant Pressure: 20 bar
Tool Magazine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
