MAXMILL QMC-600 Vertical Machining Center

Show in original language

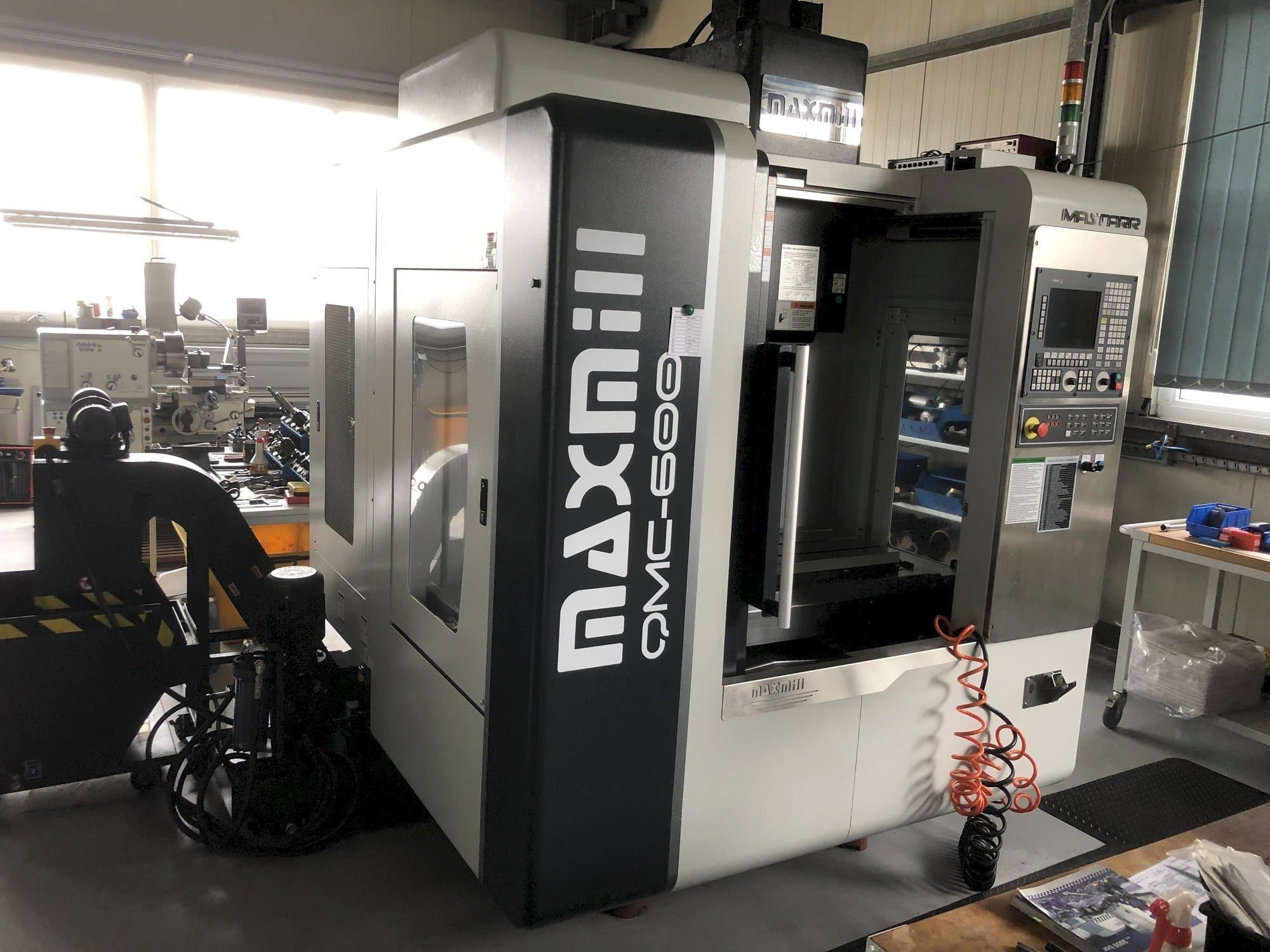

This MAXMILL QMC-600 Vertical Machining Center was built in Taiwan in the year 2017. It is operated through a FAGOR 8055 control unit with 10.4'' LCD screen and transportable handwheel. This machine stands out for its spindle speed up to 12000 rpm and its table dimension of 710 x 410 mm. It comes with its electronic documentation in german.

Overview

brand: MAXMILL
year: 2017
MODEL: QMC-600
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: FAGOR

Technical Information - MAXMILL QMC-600

Control Unit

Control Brand: FAGOR
Control Model: 8055

Dimensions

Machine Depth: 1900 mm
Machine Height: 2610 mm
Machine Weight: 4000 kg
Table Length: 710 mm
Table Width: 410 mm

Movement

Number of Axes: 3
X-axis Travel: 610 mm
Y-axis Travel: 410 mm
Z-axis Travel: 530 mm

Technical Specification

Spindle Power: 7.5 kW
Spindle Speed: 12000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine documentation / german - electronic

Technical Machine Benefits

Tool changer -type double arm
Linear guides in all 3 axes
Spindle oil cooler; spindle cooling;coolant gun
Automatic grease lubrication; self-cleaning cooling lubrication system
20 bar spindle internal cooling
Hinged chip conveyor (ejection left)
Preparation for tool and workpiece measuring system
Air-conditioned control cabinet
Spindle orientation; full enclosure; machine according to ce
3-colour cycle lamp; rigid thread cutting

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
