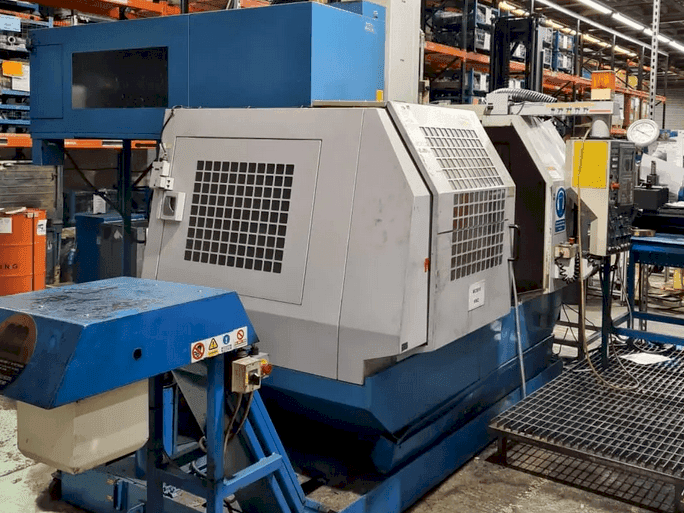

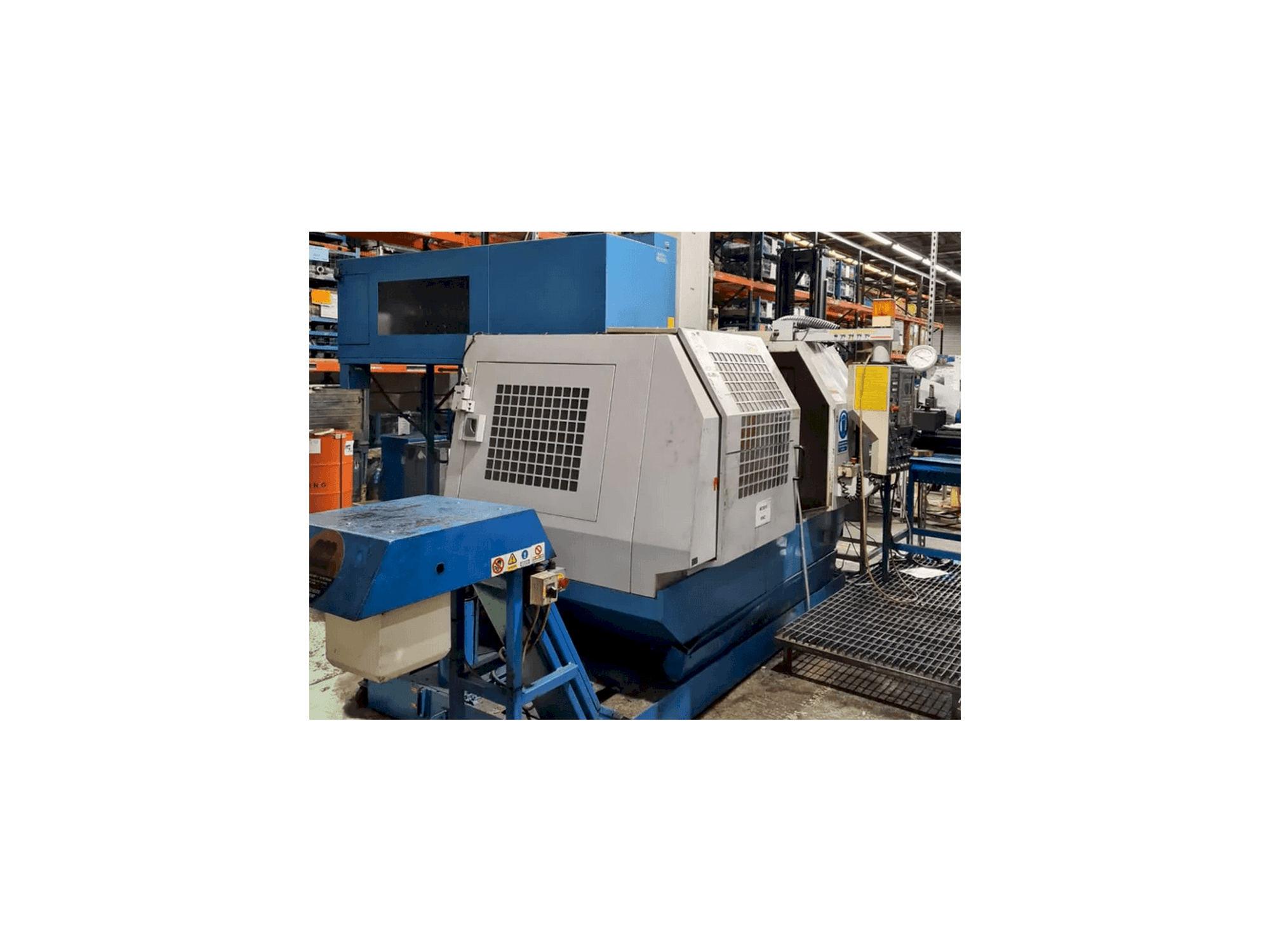

Matsuura MC-800VF Vertical Machining center

Show in original language

This Matsuura MC-800VF Vertical Machining center was manufactured in Japan in 1995. It is equipped with a Yasnac i80 control unit. This 5 axis machine has a spindle speed up to 12000 rpm. It was working in Rolls Royce from a new and is great maintained. It has new batteries. First time in use in 1996.

Overview

brand: Matsuura
year: 1995
MODEL: MC-800VF
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Matsuura MC-800VF

General Data

Machine weight: 7000 KG

Control Unit

Model: i80

Main drive

Spindle speed range: 12000 1/MIN
Tool taper: BT40
Number of axis: 5

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 440 mm
Z-AXIS Movement: 485 mm

Table

Outer length: 1200 mm
Outer width: 400 mm

Media

Main electronic connection: 415V / 50Hz
Power consumption: 37 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Power 15 hp
- - Atc 30
- - Swarf conveyor
Qualitative Machine Benefits:
- - Machine was working in rolls royce from a new and is great maintained has new batteries
- - Backup parameters

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
