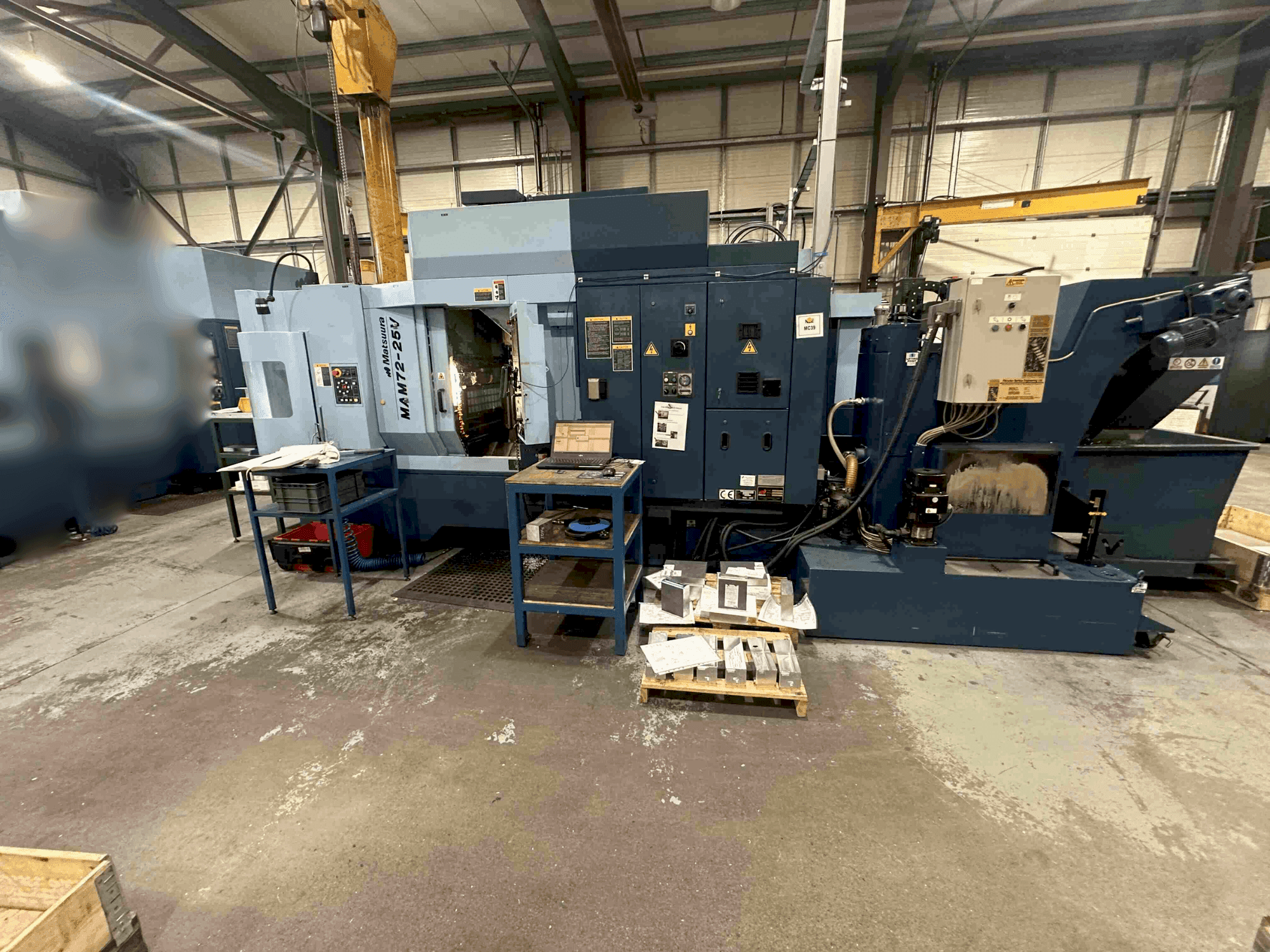

Front view of Matsuura MAM72-25V  machine

Matsuura MAM72-25V

Matsuura - MAM72-25V

2004

Rs. 7,441,450

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis Matsuura MAM72-25V vertical machining center, manufactured in 2004, is equipped with state-of-the-art features for complex and precise machining. It boasts a Matsuura G-Tech 30i control unit with simultaneous axis operation, allowing detailed control in multiple planes. The spindle offers speeds up to 20,000 rpm, and the extensive travel range includes 550mm on the X-axis, 410mm on the Y-axis, and 450mm on the Z-axis. The multi-directional B and C axes provide additional flexibility for complex shapes. The 10 station APC and 240T ATC enhance efficiency. Consider the Matsuura MAM72-25V machine we have for sale. Reach out for further details regarding this vertical machining center.

Overview

  • brand: Matsuura
  • year: 2004
  • MODEL: MAM72-25V
  • application type: Milling
  • Location: Ireland
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: Matsuura
  • GINDUMAC ID: IE-MIL-MAT-2004-00001

Technical Information

General Data

  • Measurements width: 3032 MM
  • Measurements depth: 5120 MM
  • Measurements height: 2705 MM

Control Unit

  • Brand: Matsuura
  • Model: G-Tech 30i

Main drive

  • Spindle speed range: 20000 1/MIN
  • Tool taper: BT40
  • Number of axis: 5

Movement

  • X-AXIS Movement: 550 mm
  • Y-AXIS Movement: 410 mm
  • Z-AXIS Movement: 450 mm
  • B-AXIS Movement: +/-220 degrees MM
  • C-AXIS Movement: 360 degrees360 degrees MM

Workpiece

  • Workpiece drm: maximum 300 mm
  • Workpiece weight: maximum 40 kg

Tools

  • Max weight: 10 kg
  • Max tool diameter: 150 mm
  • Max tool length: 300 mm

Media

  • Power consumption: 32 kVA
  • Internal cooling: Yes

    Additional equipment

    • - 10 Station APC (Automatic Pallet Changer)
    • - 240T ATC (Automatic Tool Changer)
    • - 20 Bar High-Pressure Coolant
    • - FSE Swarf Management
    • - Chip Conveyor

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - High spindle speed, advanced control unit, simultaneous axis operation
        • - Number of tools: 240 (240t atc)
        • - Ikz: yes (20 bar hp coolant)
      • Qualitative Machine Benefits:
        • - Enhanced swarf management system and high-pressure coolant contribute to extended tool life and improved surface finish.
        • - The capability of handling complex geometries with b-axis of +/-220 degrees and c-axis of 360 degrees for versatile machining operations.

      Extra information

      • - Machine still under power.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
